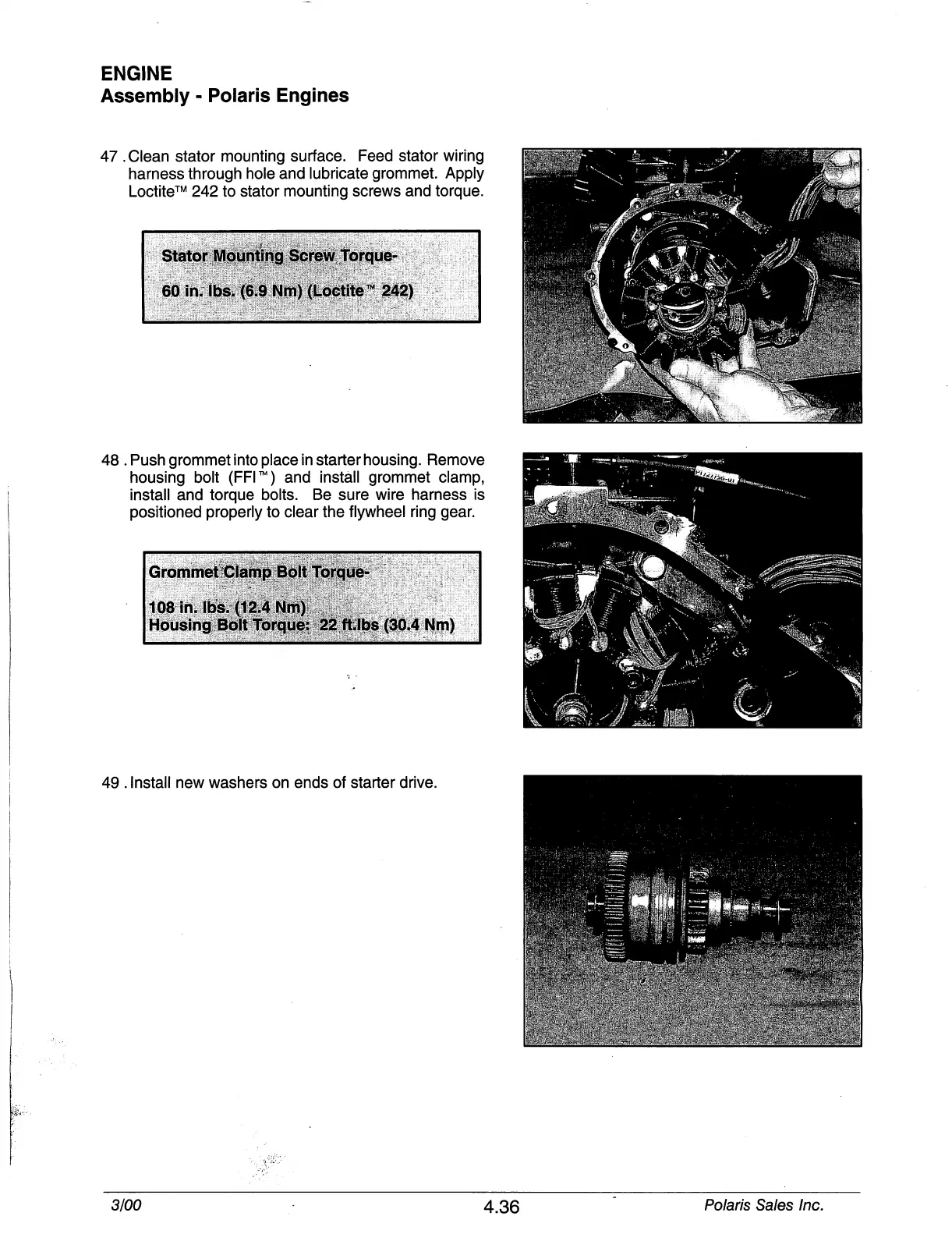

ENGINE
Assembly
-
Polaris
Engines
47
.Clean
stator
mounting
surface.
Feed
stator
wiring
harness
through
hole
and
lubricate
grommet.
Apply
Loctite™
242
to
stator
mounting
screws
and
torque.
Stator
Mounting
Screw
Torque-
60
in.
lbs.
(6.9
Nm)
(Loctite^
242)
48
.Push
grommet
into
place
in
starter
housing.
Remove
housing
bolt
(FFI™)
and
install
grommet
clamp,
install
and
torque
bolts.
Be
sure
wire
harness
is
positioned
properly
to
clear
the
flywheel
ring
gear.
Grommet
Clamp
Bolt
Torque-
108in.
Ibs;<j2$
JJfifj&x
Housing
Bolt
Torque:
22
ft.lbs
(30.4
Nm)
49
.
Install
new
washers
on
ends
of
starter
drive.
3/00
4.36
Polaris
Sales
Inc.
