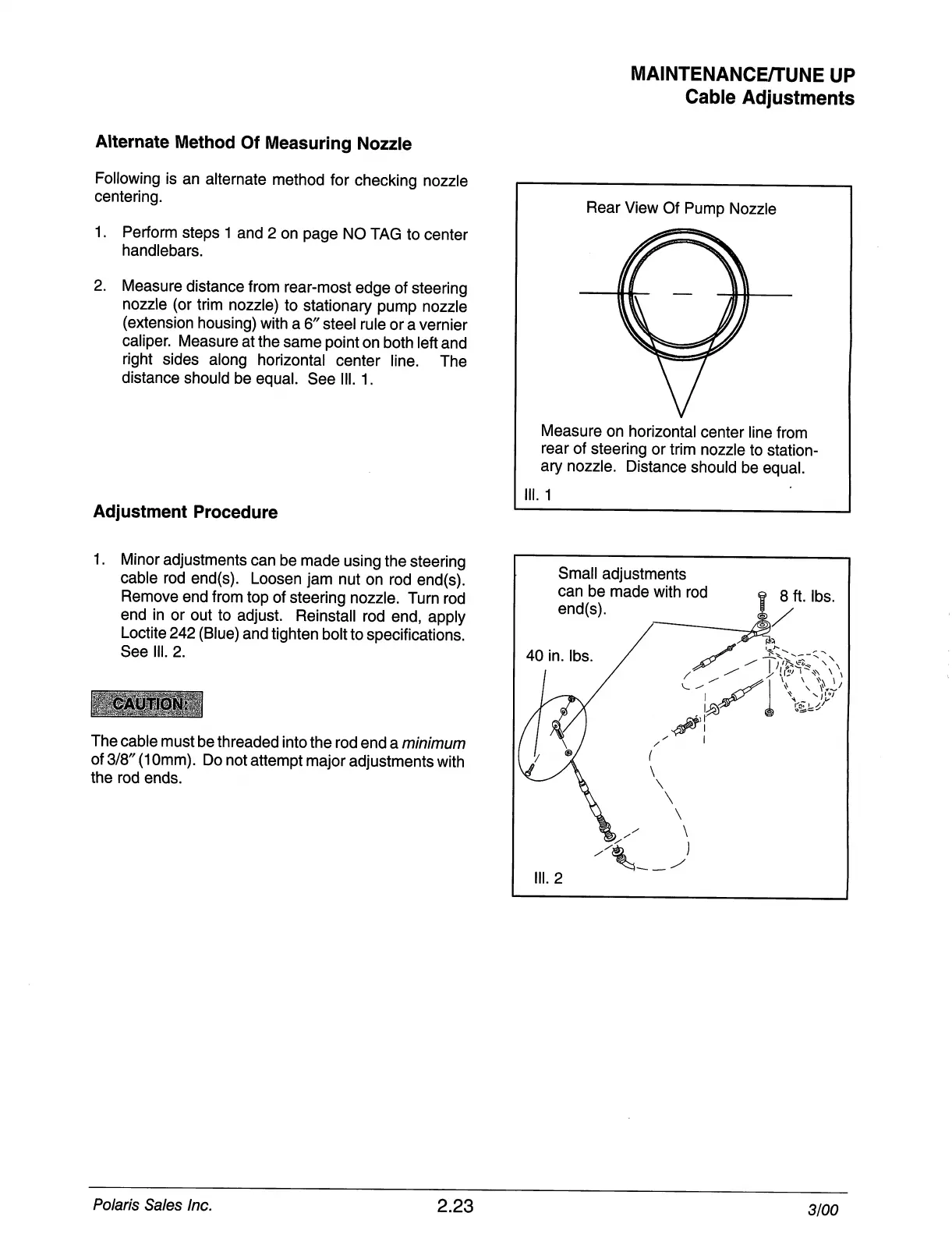

Alternate
Method
Of
Measuring
Nozzle
Following
is
an
alternate
method
for
checking
nozzle
centering.
1.
Perform
steps
1
and
2
on
page
NO
TAG
to
center
handlebars.
2.
Measure
distance
from
rear-most
edge
of
steering
nozzle
(or
trim
nozzle)
to
stationary
pump
nozzle
(extension
housing)
with
a
6"
steel
rule
or
a
vernier
caliper.
Measure
at
the
same
point
on
both
left
and
right
sides
along
horizontal
center
line.
The
distance
should
be
equal.
See
III.
1.
Adjustment
Procedure
MAINTENANCE/TUNE
UP
Cable
Adjustments
Rear
View
Of
Pump
Nozzle
Measure
on
horizontal
center
line
from
rear
of
steering
or
trim
nozzle
to
station
ary
nozzle.
Distance
should
be
equal.
11.1
1.
Minor
adjustments
can
be
made
using
the
steering
cable
rod
end(s).
Loosen
jam
nut
on
rod
end(s).
Remove
end
from
top
of
steering
nozzle.
Turn
rod
end
in
or
out
to
adjust.
Reinstall
rod
end,
apply
Loctite
242
(Blue)
and
tighten
bolt
to
specifications.
See
III.
2.
The
cable
must
be
threaded
into
the
rod
end
a
minimum
of
3/8"
(1
Omm).
Do
not
attempt
major
adjustments
with
the
rod
ends.
Polaris
Sales
Inc.
2.23
3/00
