Polaris Watermatic C-660 - Controller Panel Features; Controller Panel Overview

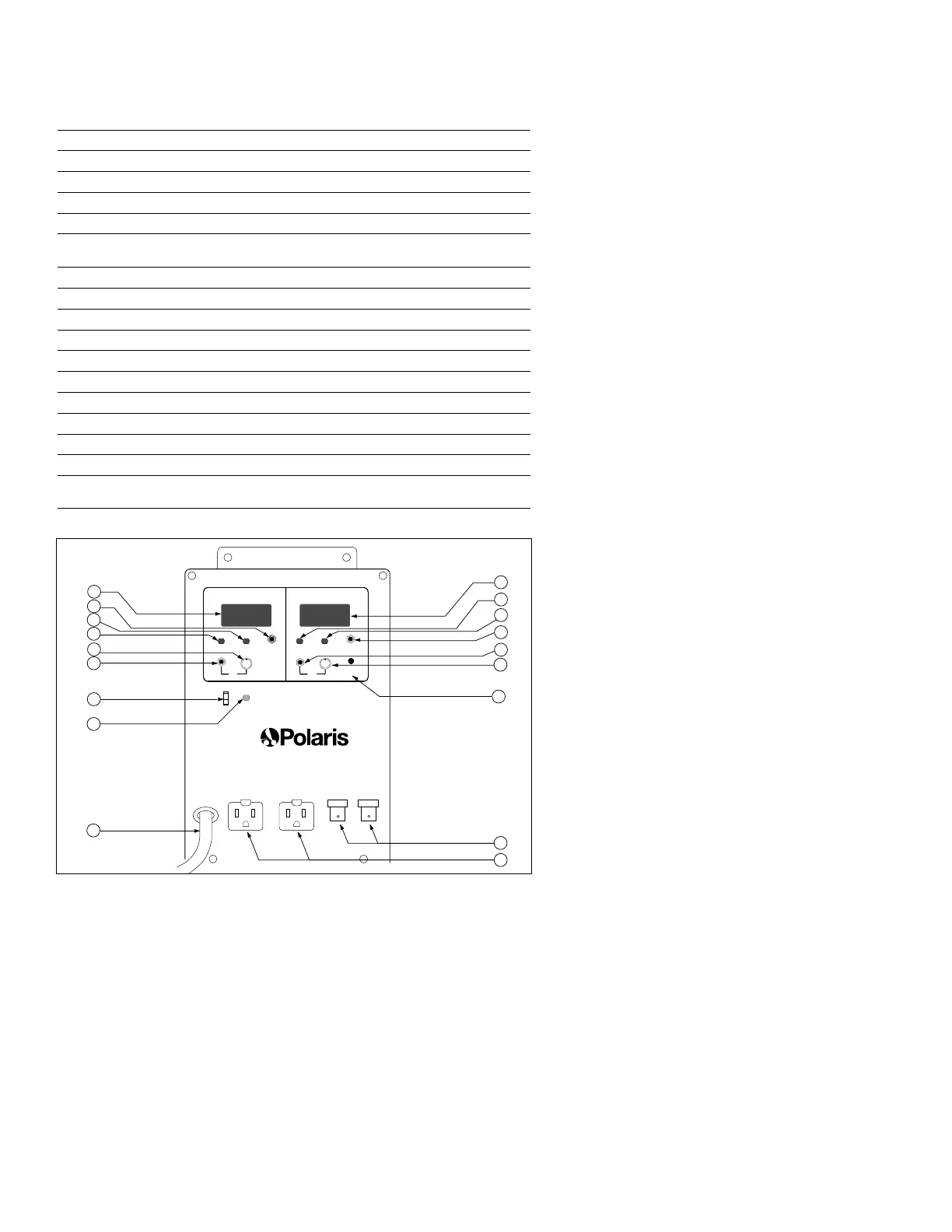

VI. Panel Features
14
ALERT
FEED
MANUAL
FEED
SENSOR
CALIBRATION
SET
ALERT
FEED
MANUAL
FEED
SET
ON
OFF
FLOW
ORP
pH
ORP pH ORP SENSORS pH
C-660 ORP/pH Controller
9
17
18
750 7.5
2
5
3
8
1
4
6
7
16
15
14
13
12
11
10
# DESCRIPTION FUNCTION
1 ORP Digital Display Indicates sanitizer level
2 ORP Manual Feed Button Instantly feeds sanitizer (if feed light is off)
3 ORP Feed Light Indicates the ORP sanitizer feeder is activated (or in delay)
4 ORP Alert Light Indicates the ORP level is out of range
5 ORP Set Knob Sets the desired sanitizer level of the water
6 ORP Set Button Holding in allows desired sanitizer level to be
changed
7 Power On/Off Switch Turns power on and off
8 ORP Flow Light Indicates there is sufficient flow/pressure to operate
9 Power Cord 3-wire grounded power cord with plug
10 pH Digital Display Indicated pH level
11 pH Alert Light Indicates that pH is out of range
12 pH Feed Light Indicates the pH feeder is activated (or in delay)
13 pH Manual Feed Button Instantly feeds pH adjuster (if feed light is off)
14 pH Set Button Holding in allows desired pH level to be changed
15 pH Set Knob Sets the desired pH level of the water
16 pH Sensor Calibration Calibrates the pH sensor
17 ORP and pH Sensor BNC jacks
Conncectors
18 5 amp ORP/pH Outlets 3-wire grounded power receptacles
