82
MAINTENANCE
Clutch System
Drive Belt Removal
1. Stop the engine after operating in
a forward motion.
NOTICE: Do not attempt to remove the
drive belt after operating in
reverse. The snowmobile must
be stopped after forward motion
to prevent damage to compo-
nents during belt removal.
2. Turn the ignition key off. Wait for
the engine to stop completely.
3. Lock the parking brake (if
equipped).
4. Open the hood.
5. Remove the clutch guard retaining pin and open the clutch guard.
6. Rotate the driven clutch counterclockwise 1/4 turn by hand to
ensure forward engagement before attempting to remove the belt.

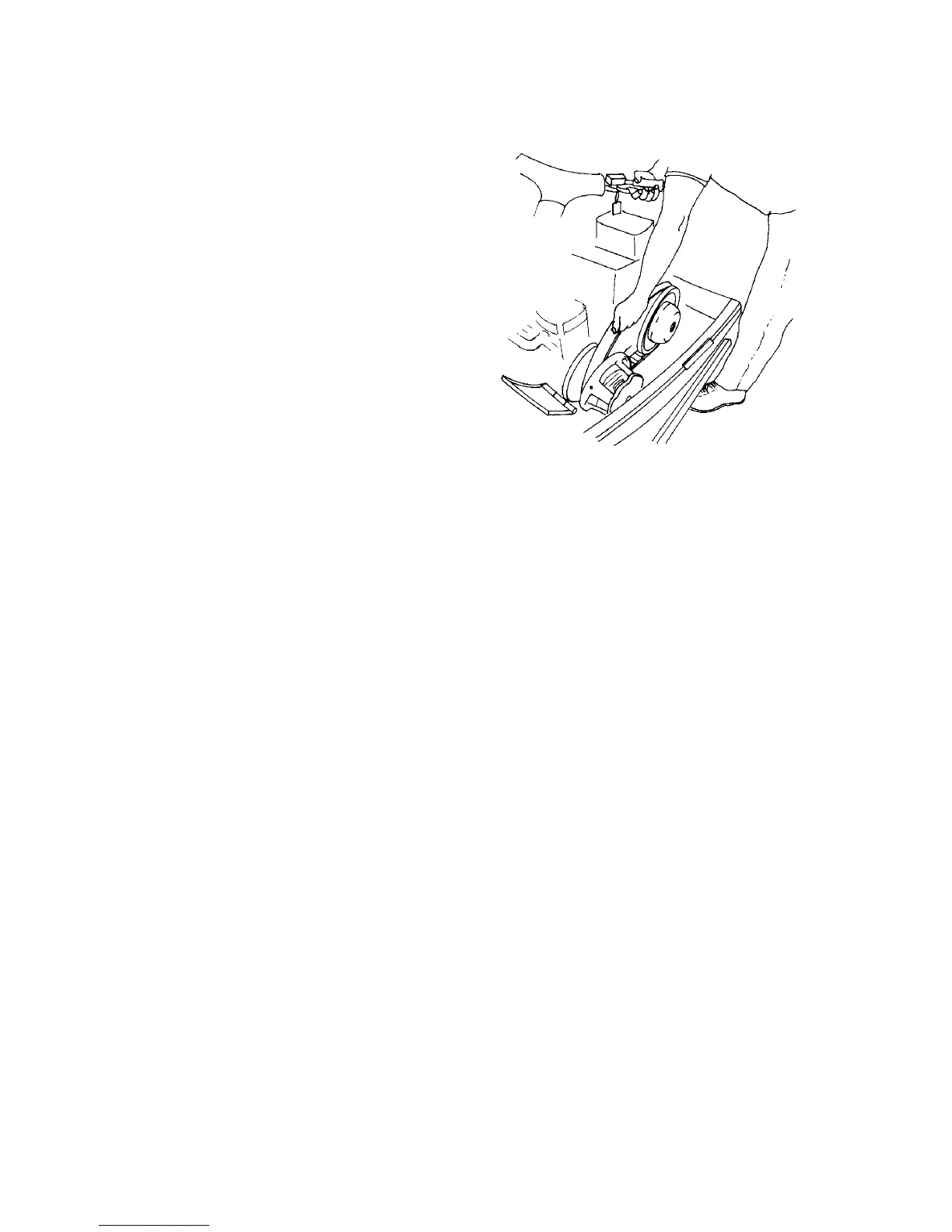

7. Firmly grasp the belt midway between the clutches and pull upward
and rearward to remove. See illustration.
