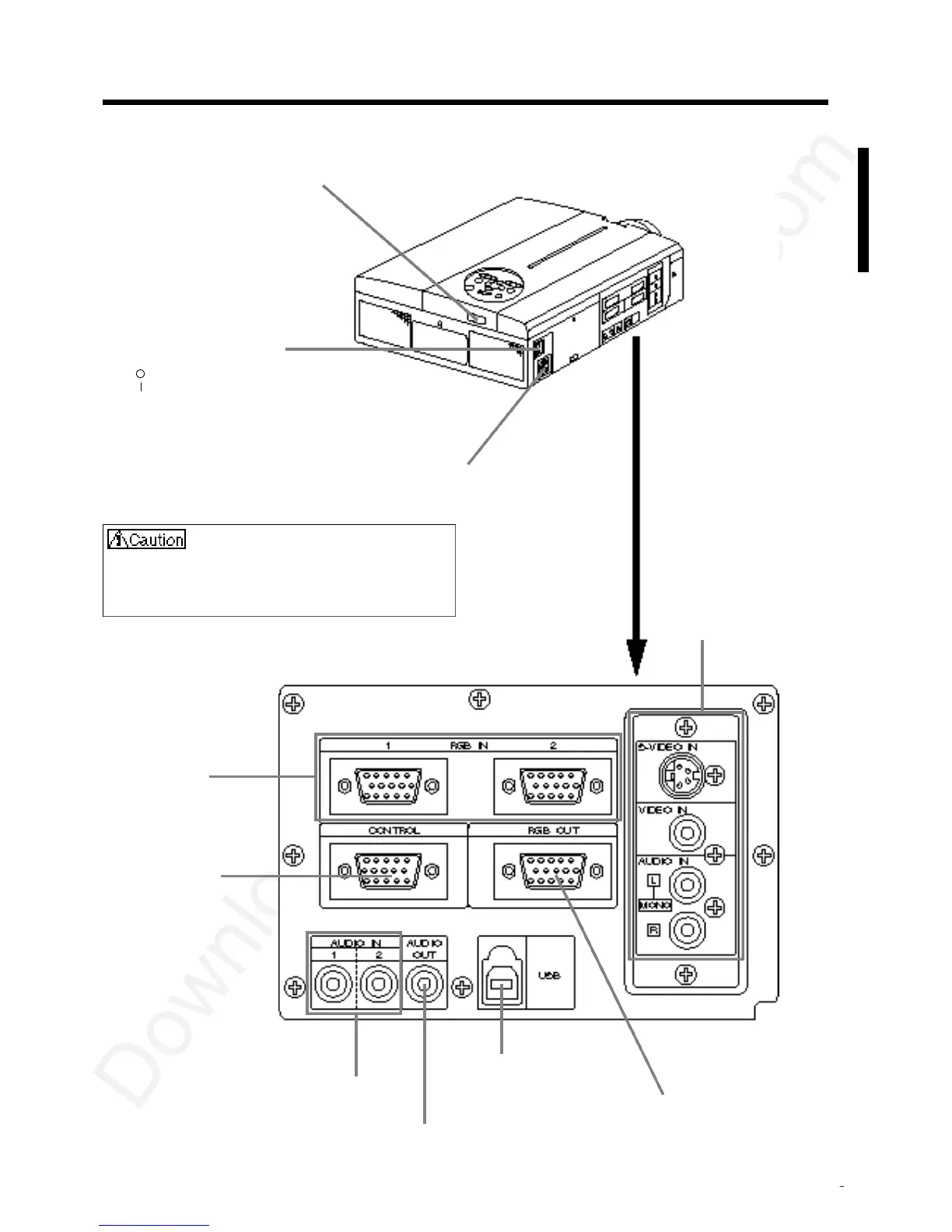

Names and functions of each part (continued)
Main power switch
Used to turn the power on and off.
: OFF
: ON
VIDEO IN jack
S-VIDEO IN jack
Mini DIN 4-pin connector
VIDEO IN jack
RCA jack
AUDIO L/R IN jack
RCA jack
AC IN jack
Used to connect the
accessory power cord.
RGB IN jack
D-sub 15-pin shrink (1/2)
CONTROL jack
D-sub 15-pin shrink
AUDIO OUT jack (RGB/VIDEO)
Stereo mini jack
AUDIO IN jack (RGB)
Stereo mini jack
Connecting to the AC IN jack
Make sure the accesory power cord is plugged into
the AC IN jack as far as it will go. Incomplete
connection can result in fire or electrical shock.
Remote control I/R receiver
RGB OUT jack
D-sub 15-pin shrink
USB jack
The mouse cursor can be controlled by
remote control by connecting to a
personal computer.
To Next Page
