Polaroid 37" User Manual

C
Rear of TV
A
B
HDMI IN
AUD IO
LR
LR LR
LR
L
R
LR
LR
AUD IO
VGA IN
VIDEO2 IN
VIDEO AUD IO
S-VIDEO IN
S-VIDEO AUD IO
YPbPr1 IN
AUD IO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
TV
CABLE
HDTV
AIR
VHF/UHF IN
Y Pb Pr AUD IO
YPbPr2 IN
Y Pb Pr AUD IO
or
20
Chapter 2 Installing the LCD TV

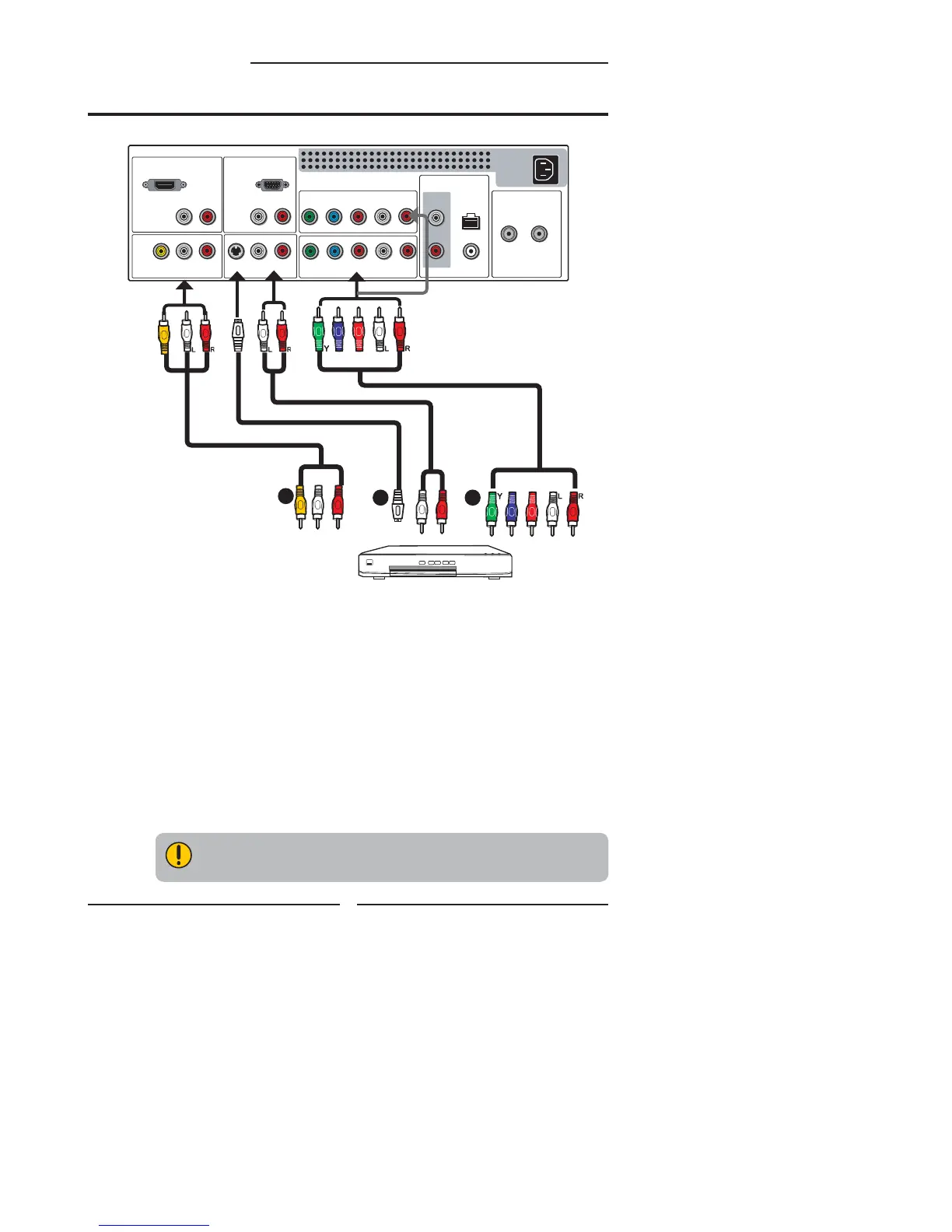

 METHOD A:
Use a composite cable to connect the DVD player’s composite video/audio jacks to the LCD
TV’s VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the DVD player’s audio output jacks to the LCD TV’s
audio inputs. Use a S-Video cable to connect the DVD player’s s-video output jack to the
LCD TV’s S-VIDEO IN input jack.
METHOD C:
Use a component cable to connect the DVD player’s component output jacks to the LCD TV’s
YPbPr1 IN or YPbPr2 IN input jacks.
Use an audio cable to connect the DVD player’s component audio jacks to the LCD TV’s
audio input jacks.
DVD PLAYER
PrPb
PrPb
Connecting a DVD Player
The component video jacks on your DVD player are sometimes labeled
YPbPr, or YCbCr. For an explanation of component video, see your DVD
player’s user guide.
AUDIO Cable
S-VIDEO Cable
AV Cable
COMPONENT/AUDIO Cable
