33. Remount the Base Block on the Cone by positioning the two openings at the top of
the Base Block over the corresponding projections on the Cone (see Fig. 29), then
rotating the Base Block down into position until the locking tangs near the Counter
Wheel and Motor snap shut.

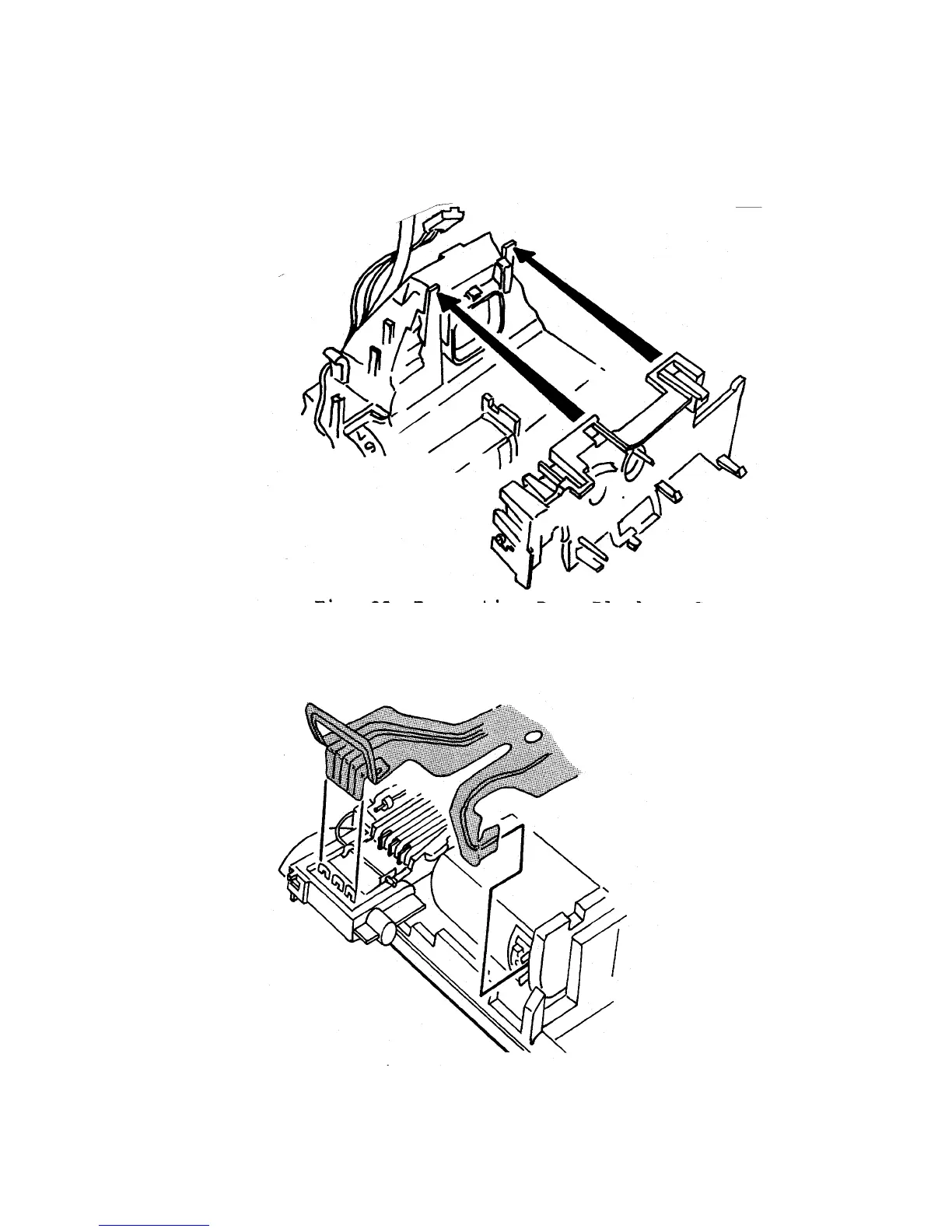

Fig. 29 Remounting Base Block on Cone
34. Reconnect the Flex to the Contact Support Block, Motor and Wire Block Assembly
(see Fig. 30).
Fig. 30 Reconnecting Flex to Contact Support Block, Motor and Wire Block Assembly
