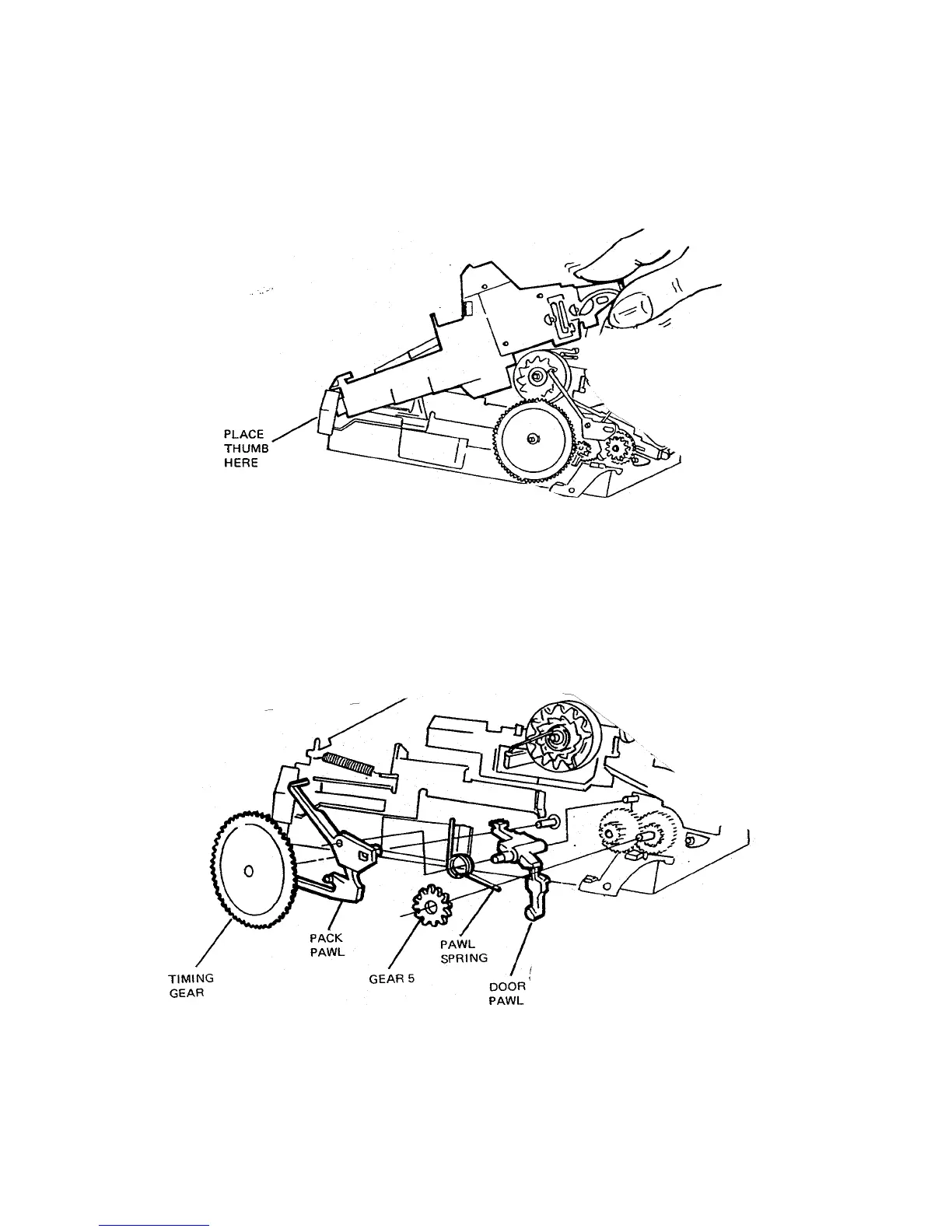

50. Refer to Fig. 41: place your thumb over the left end of the Gear Drive. Slowly and
carefully lift the right end of the Cover. Remove the Cover by walking the left end
free of its detent. Use care to not break the detent.
Fig. 41 Removing the Gear Drive Cover
51. Remove the Timing Gear, Pack Pawl, Pawl Spring, Door Pawl and, if not dislodged
earlier, Gear 5.
Fig. 42 Parts removal from Gear Drive
64
