Polaroid DRA-01601A

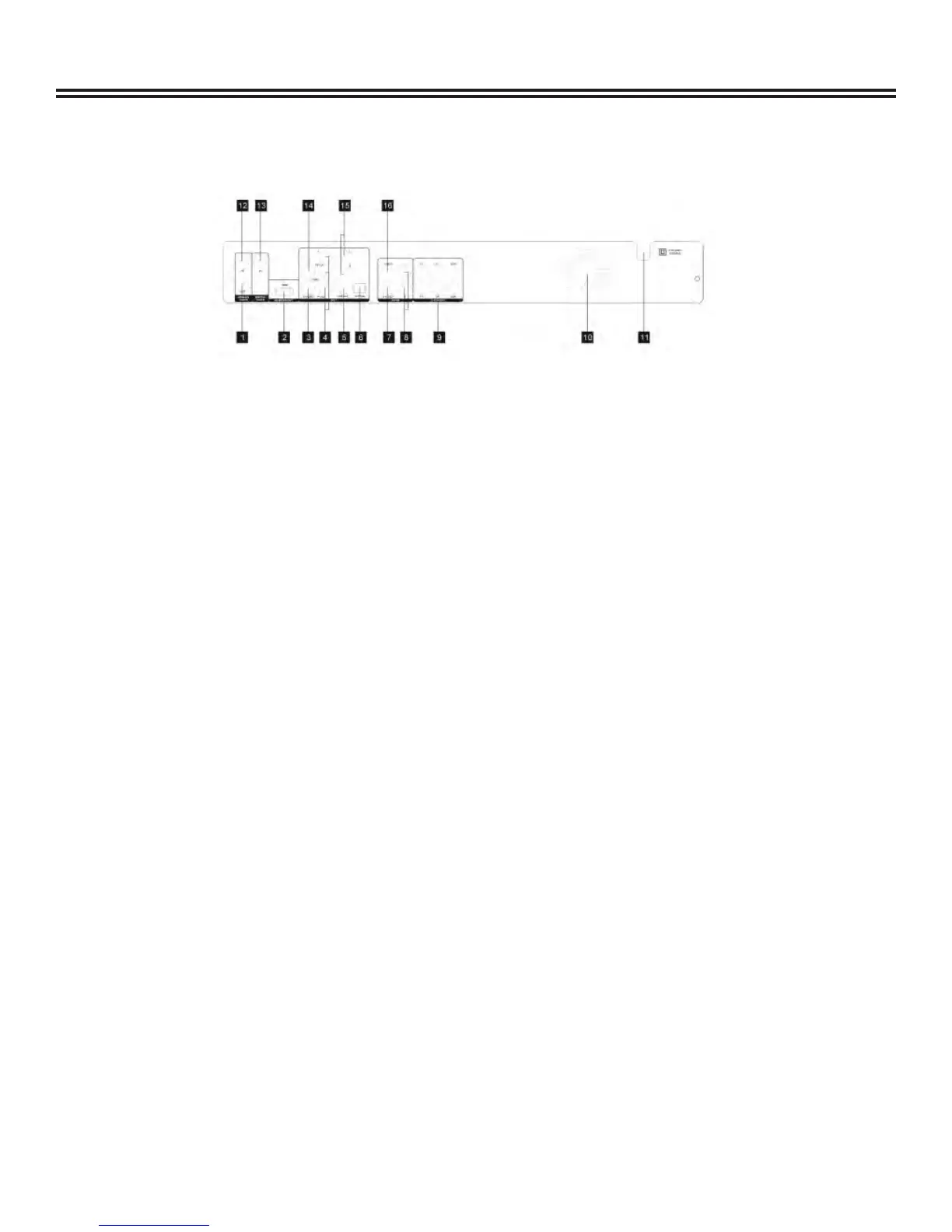

Identifi cation of Controls
5
R
EAR PANEL
Analog Tuner - RF Signal Output: Connect to your TV’s RF input
HD Media Output: Provides a high-quality interface for digital audio and video using one cable
S-video Output: Connect to your TV’s S-video input
Component Video Output: Connect to your TV’s component input
Digital Audio Coaxial Output: Using a coaxial digital audio type cable, connect to your home
theatre system’s coaxial input
Digital Audio Optical Output: Using a coaxial optical type cable, connect to your home theatre
system’s coaxial input
S-video Input: Connect your S-video cable from your other A/V equipment to the S-video input
Analog Audio Input (Right/Left Channels): Connect from your other A/V equipment to the
analog audio input
5.1 CH Audio Output (Home Theatre System): These outputs connect to your home theatre
system’s amplifi er speaker inputs
Fan
AC Power 110-240V 50/60Hz
Analog Tuner - RF Signal Input: Connect to an external antenna or cable line without using a
cable box
Digital Tuner Input: Connect to an external (digital TV) antenna
Composite Video Output: Connect to your TV’s composite video input
Analog Audio Output (Right/Left Channel): Connect to your TV’s analog audio input
Composite Video Input: Connect from your other A/V equipment to composite video input
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
