Chapter 2 Installing the LCD TV
Use a component cable to connect the satellite receiver’s/TV Cable Box’s component
(YPbPr1) output jacks to the LCD TV’s component input jacks.
Use an audio cable to connect the satellite receiver’s/TV Cable Box’s component audio
jacks to the LCD TV’s audio input jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch programs via satellite receiver or TV Cable Box, press the Input button on the
remote to select VIDEO4/VIDEO5.
Rear of TV
HDMI IN
AUD IO
LR
LR LR
LR
L
R
LR
LR
AUD IO
VGA IN
VIDEO2 IN
VIDEO AUD IO
S-VIDEO IN
S-VIDEO AUD IO
YPbPr1 IN
AUD IO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
TV
CABLE
HDTV
AIR
VHF/UHF IN
Y Pb Pr AUD IO
YPbPr2 IN
Y Pb Pr AUD IO
or
PrPb
PrPb

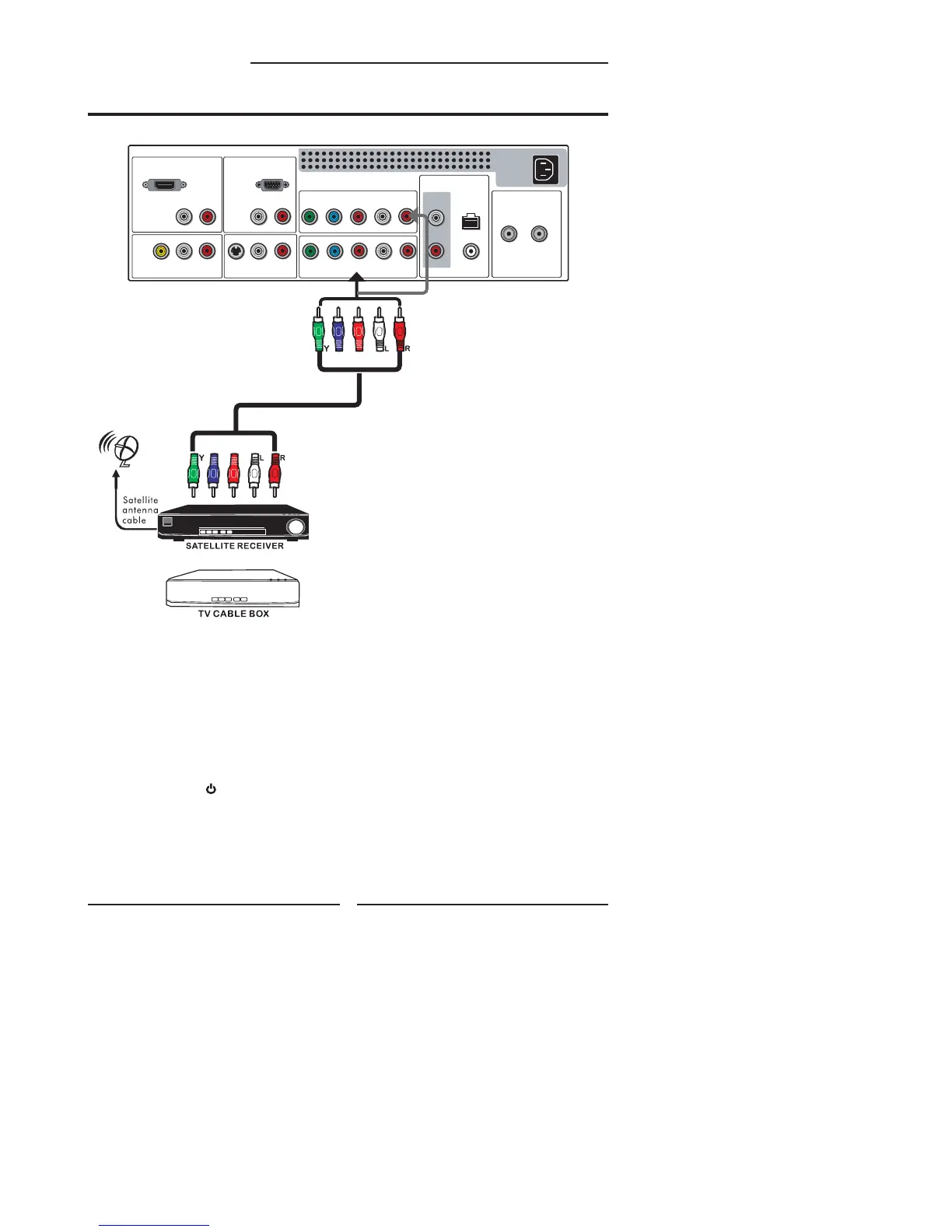

Connecting a Digital TV Cable Box or Digital Satellite Receiver
