Power connection
9
Installation(continued)

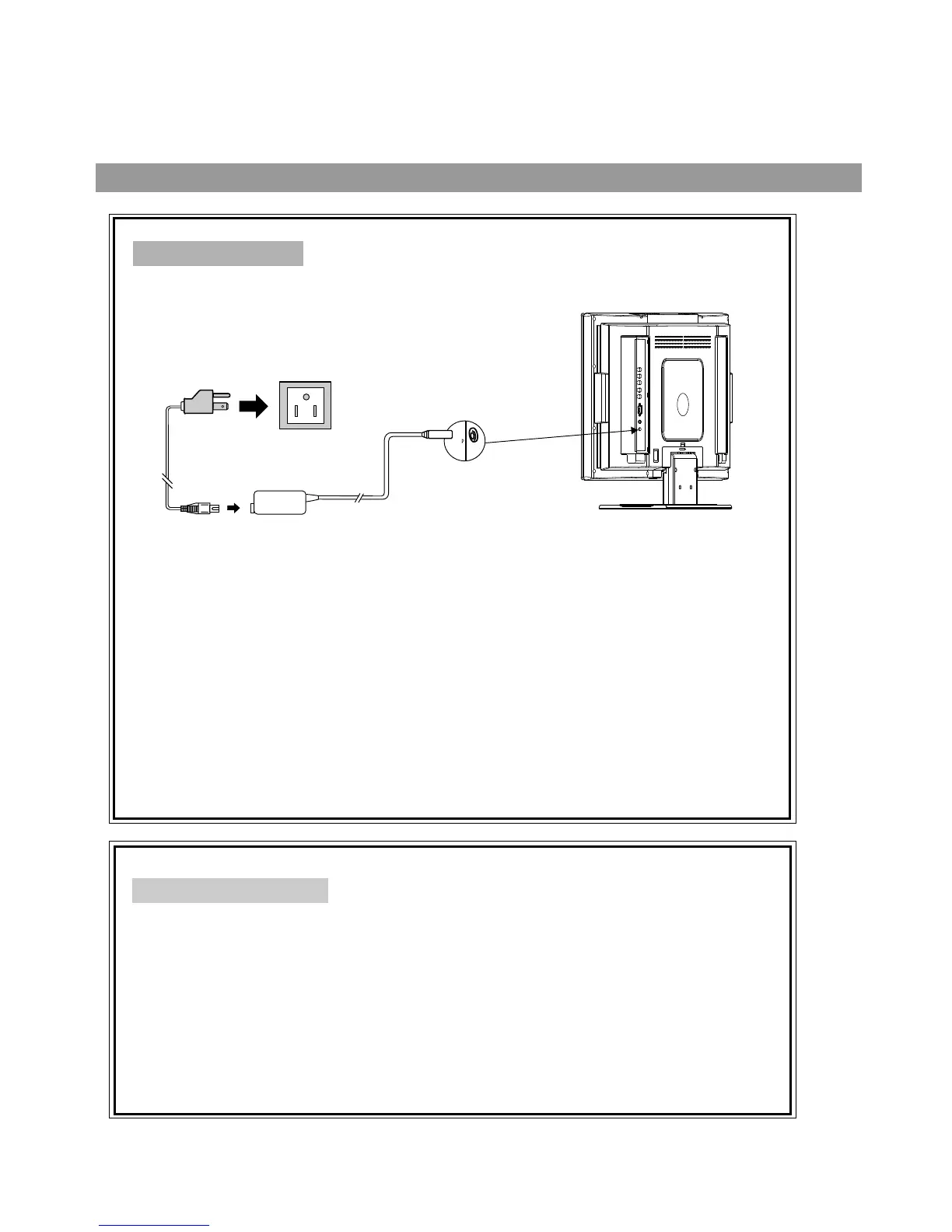

1. Connecting the female plug to the AC socket on AC adapter.
2. Connecting the AC adapter to the DC power input of the set.
3. Connecting the male plug to the wall outlet as illustrated.
Note:
<
<This product should only be operated with the type of power source marked on the label on the
unit.
<Always unplug the AC adapter from the product and power outlet when the LCD TV is not in use for
an extended period of time of time.
<The illustration of power cord and power outlet is only for your reference and may vary depending
on your area.
Always turn off the Power to the LCD TV when connecting the AC adapter.
To power input
Adapter
Power cord
(DC 12V)
D
12
C
V
Household
power outlet
Connect to the DC input
socket of the back of the
product.
Be sure to fully insert plug
into the socket and confirm
it is secure.
Elevation adjustment
You can adjust the angle of the LCD TV as follows.
o o
The elevation can be adjusted from -5 to +10 average.
