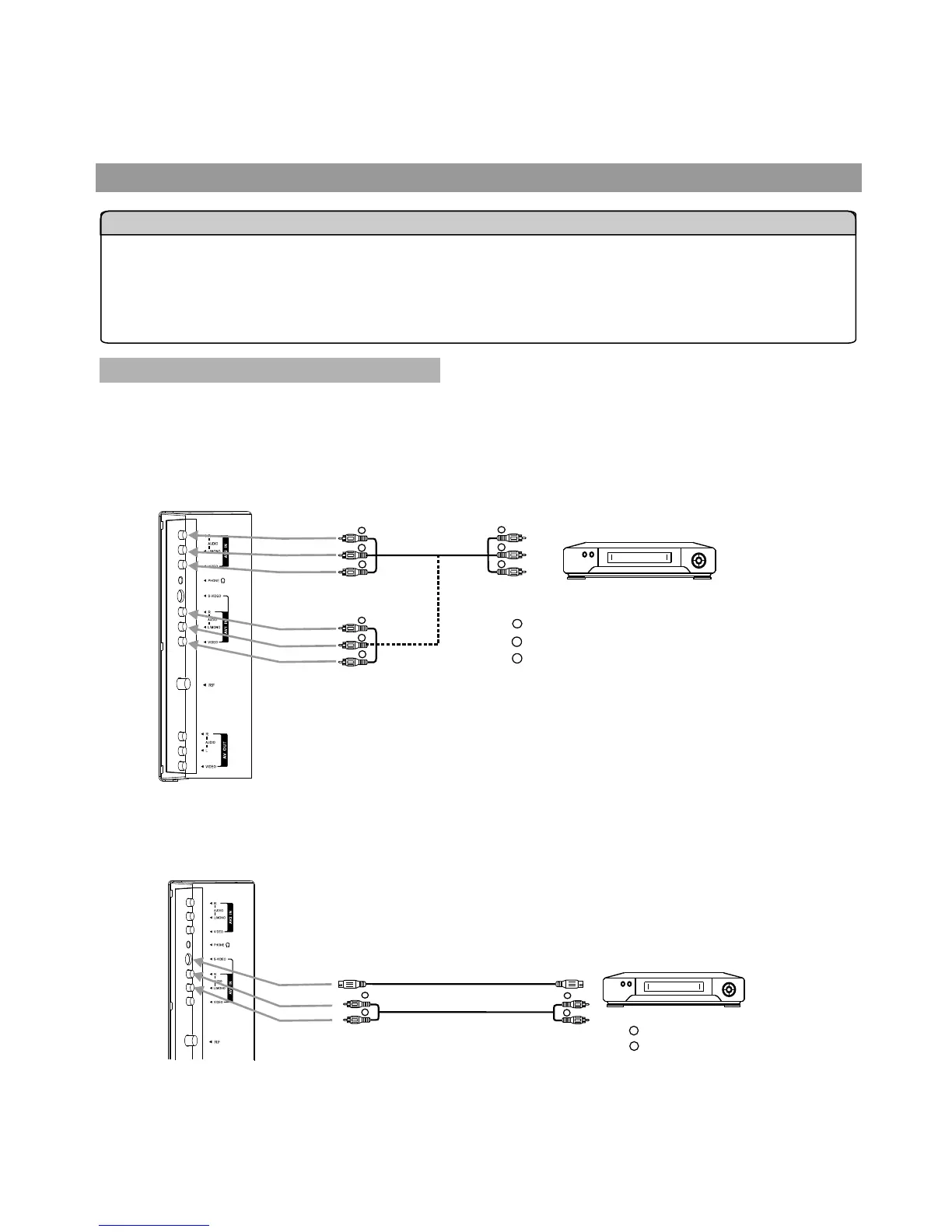

Connecting the Video/Audio equipment
Composite Video signal connection
You can connect the unit to a DVD or VCR to enjoy playback with high quality picture and sound.
Please refer to the instruction manual of the equipment to be connected.
Note: Composite video is the most common used signal, but the picture quality
is not as high as S-video.
S-Video is a signal format which transfers the color and brightness of the picture with higher quality than a
Composite connection.The S-Video signal connection is recommended to produce the best picture.
Connect the composite video signal terminal on the TV to the output of AV equipment through composite cable.
If you select the video signal, please set the input signal source of LCD TV to AV1/AV2 mode.
S-VIDEO Signal Connection
Connect the S-video terminal on the TV to the output of AV equipment using a S-video cable.
If you select S-video signal, please set the input signal source of LCD TV to SVIDEO mode.
10
1. Carefully check the terminals for position and type before making any connections.
2. Loose connectors will result in image or color problems. Make sure that all connectors are securely inserted into their
terminals.
3. When connecting an external device, turn off the power of the main unit first to prevent any possible damage.
Installation(continued)
Notes about connection
R
R
R
Y
Y
Y
w
w
w
VCR, VCD etc.
w
R
Y
Yellow (video)
White (audio L)
Red (audio R)
To video output
To video input
To video input
To audio outputs
To audio inputs
To audio inputs
VCR, VCD etc.
R
R
w
w
To audio inputs
To S-VIDEO input
To S-VIDEO output
To audio outputs
w
R
White(audio L)
Red (audio R)
To Next Page
