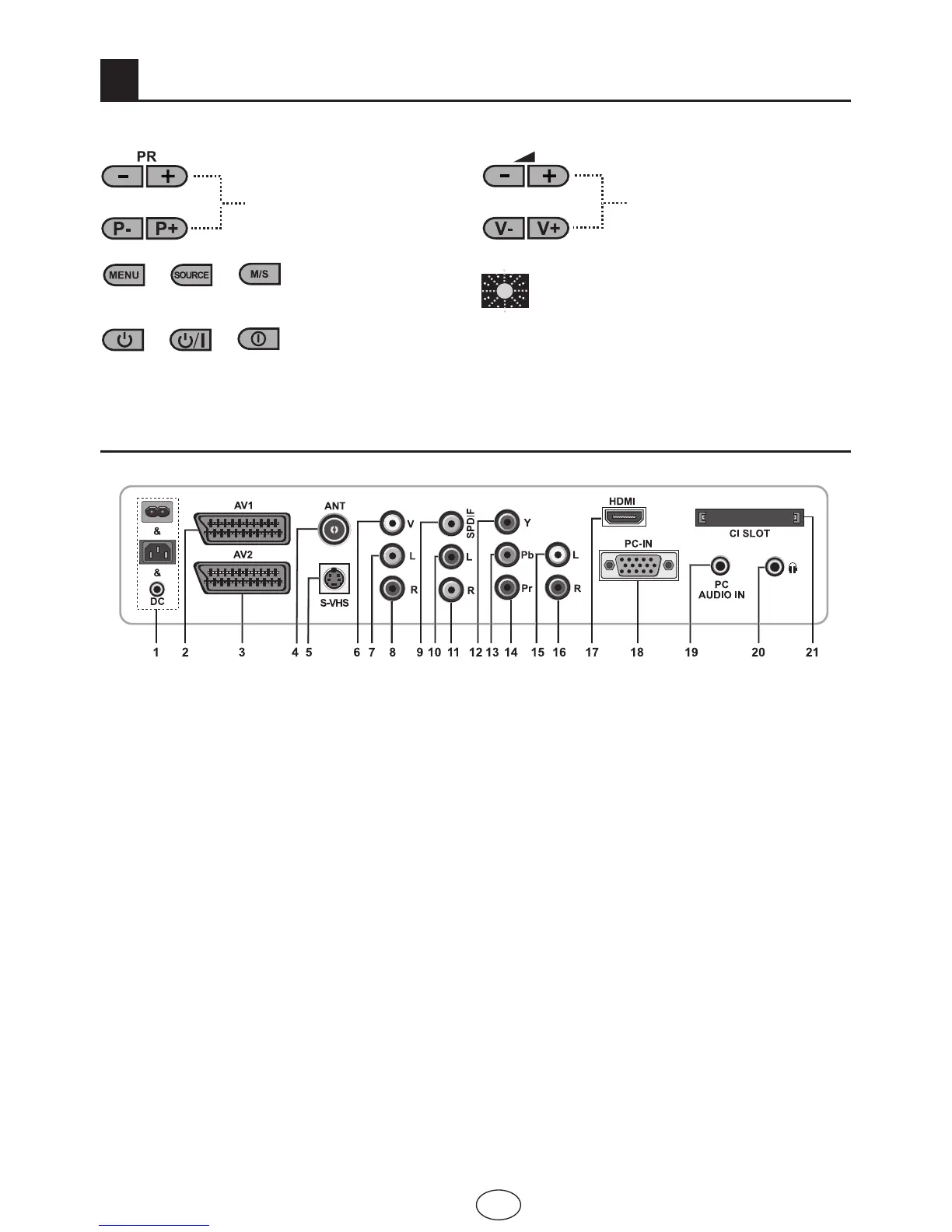

5.1-TV Control Panel
&
Program Down/Up button
&
Volume Level Down/Up button
&
On-Off / Standby button
&
&
Stand by indicator
Bright light: TV is in Stand-by
Dimmed light: TV is On
No light: Power Cable is not connected.
&
Menu button / Source selection button
5.2-Rear and Side External Connections
1-Power input
2-AV1 scart
3-AV2 scart (*)
4-Antenna input
5-S-VHS input (*)
6-Video input CINCH connector (*)
7-Sound output CINCH connector (Left/L)(*)
8-Sound output CINCH connector (Right/R)(*)
9-SPDIF Digital audio output (*)
10-Audio input (Left/L) (*)
11-Audio input (Right/R) (*)
12-Component video input (Y)(*)
13-Component video input (Pb)(*)
14-Component video input (Pr)(*)
15-Component audio input (L)(*)
16-Component audio input (R)(*)
17-HDMI input(*)
18-VGA (PC connection input)
19-PC audio input
20-Stereo Headphone socket(*)
21-CI slot input
(*): These features are optional and they are not available on all models.
Note: Above drawing for external connections is representational. Their order and places on
your TV may be different.
Please see Technical Specifications Table on page 27 for the available external connections
on your television.
Important Note: DC power input is for models with an adaptor only.
• Please do not use the video Phono and S-Video connection simultaneously, otherwise
these two devices might influence the picture quality of one another.
• RGB input via Scart offers the best picture quality.
