12

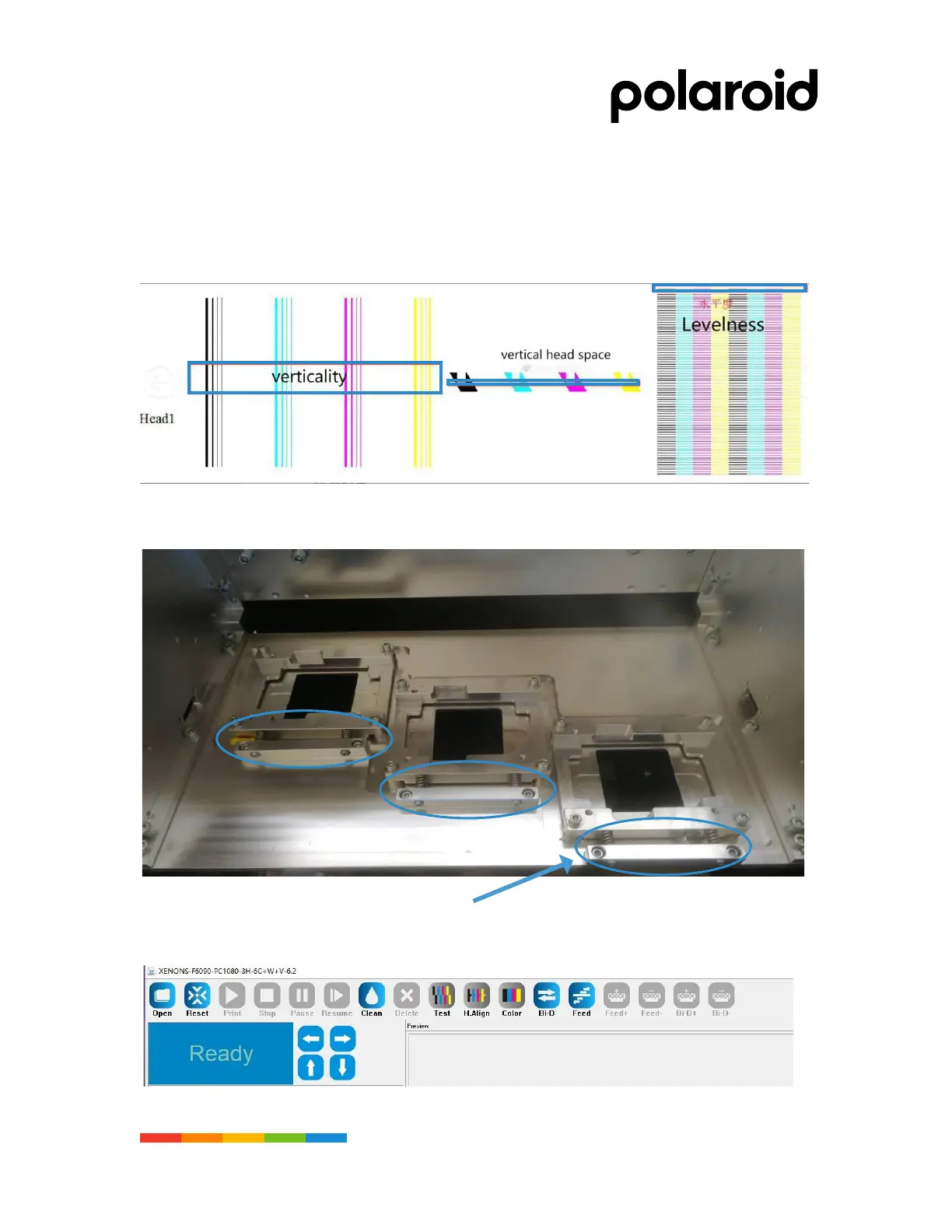

Step 11. Print head calibration
Vertical alignment: The vertical calibration diagram of print head is used to test whether the
installation of print head is vertical or not. According to the test diagram to adjust the inclination of
the head, to make sure printing in the same vertical position twice.
Physical calibration adjustment: According to the vertical calibration diagram to adjust printhead
vertical and horizontal
Vertical calibration, adjust spring screw
step 12. color calbration
Open the software, click the color to the calibration interface, under the normal online state,
