Reassembly
Slide the main casing back on and fasten the rear screws.
Turn the scanner on it's back and fasten the side screws holding the main casing.

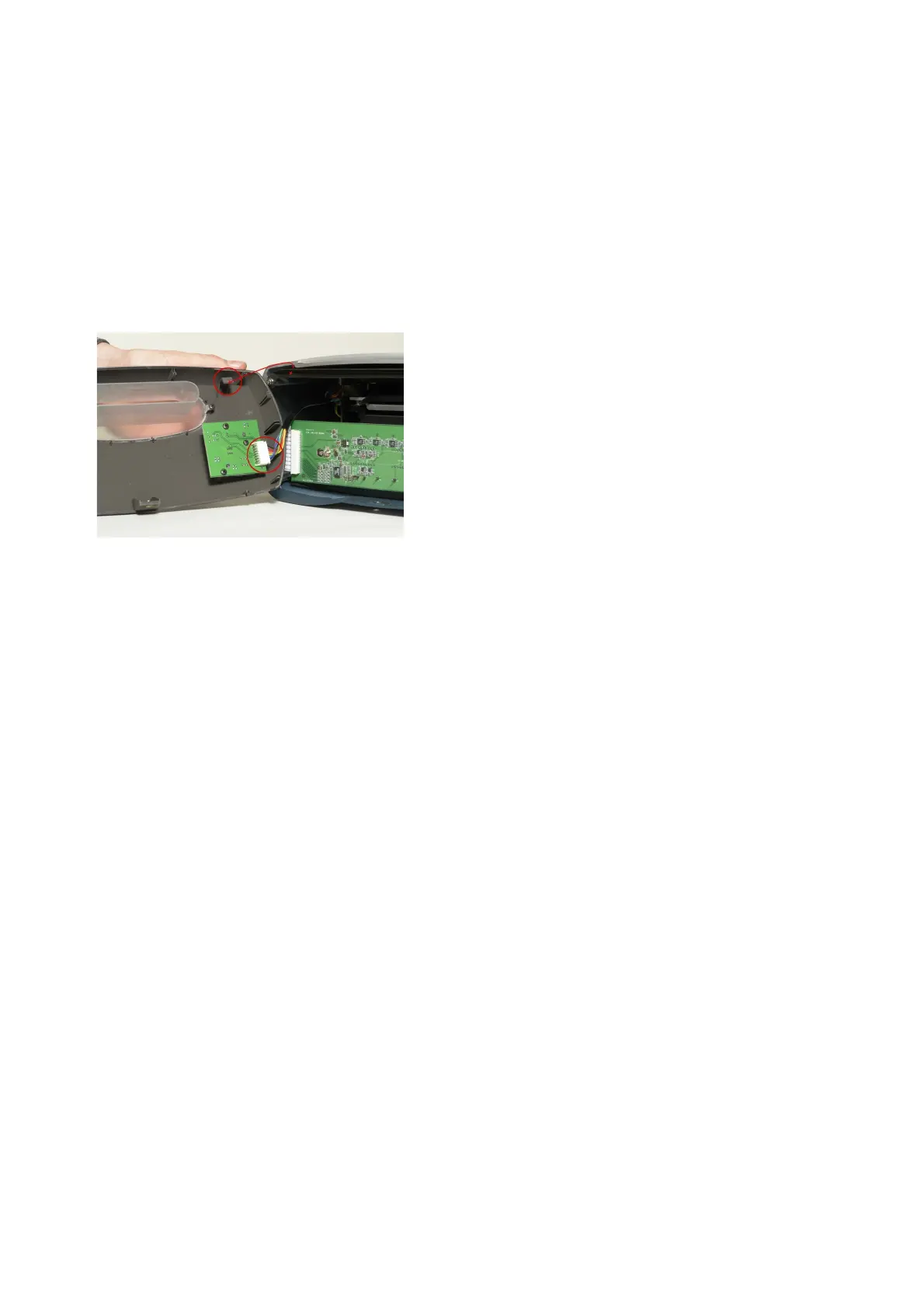

Turn the scanner back around and connect the cable to the front cover.
Confirm that the color coding of the cable is corosponding to your notes.
Position the plastic hooks on the front cover in the grooves of the main body.
Then carefully press the front cover onto the casing.
To finish the assembly fasten the front cover with the central screw on the bottom of the
scanner..
Have fun with your new old scaner.
Your
LaserSoft Imaging Serviceteam
© LaserSoft Imaging 6/6 pages
