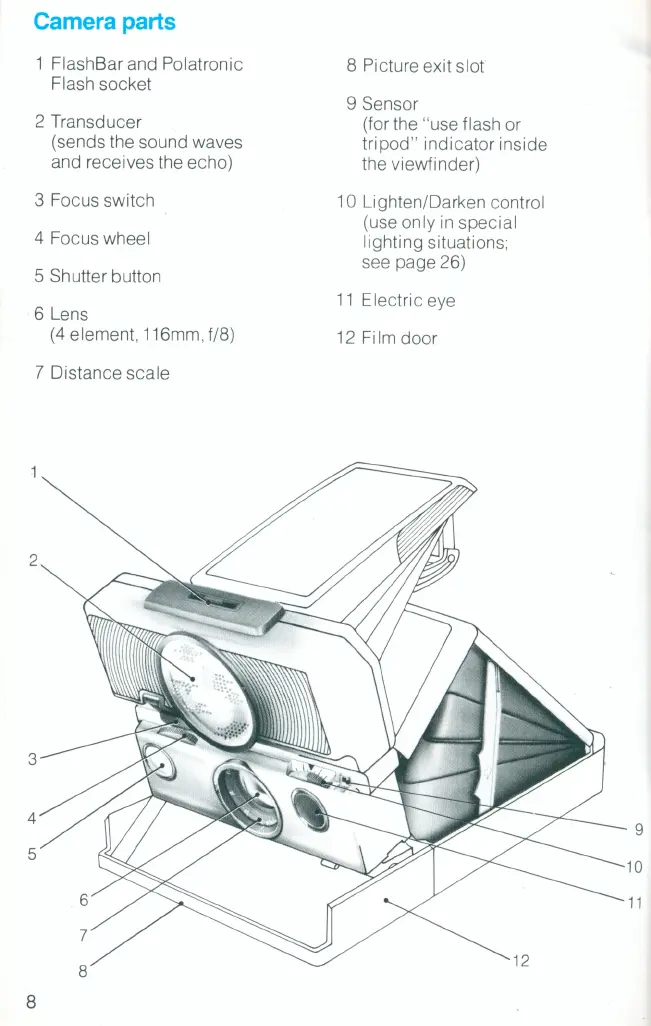

Polaroid SX-70

Camera parts
1 FlashBar and Polatronic
Flash socket
2 Transducer
(sends the sound waves
and receives the echo)
3 Focus switch
4 Focus wheel
5 Shutter button
6 Lens
(4 element, 116mm,f/8)
7 Distance scale
2
3
4
5
8
8
8 Picture exit slot
9 Sensor
(for the "
use flash or
tripod" indicator inside
the viewfinder)
10 Lighten/Darken control
(use only
in special
lighting situations;
see page 26)
11 Electric eye
12 Film door
9
10
11
