L
R
VIDEO1 IN
VIDEO
Right Side
24
Chapter 2 Installing the LCD TV
A
B
HDMI2 INHDMI1 IN
AUDIO
LR
LR LR
LR
L
RLR
LR
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
YPbPr AUDIO
YPbPr2 IN
YPbPr
AUDIO
Rear of TV
or
AUDIO Cable
S-VIDEO Cable
AV Cable

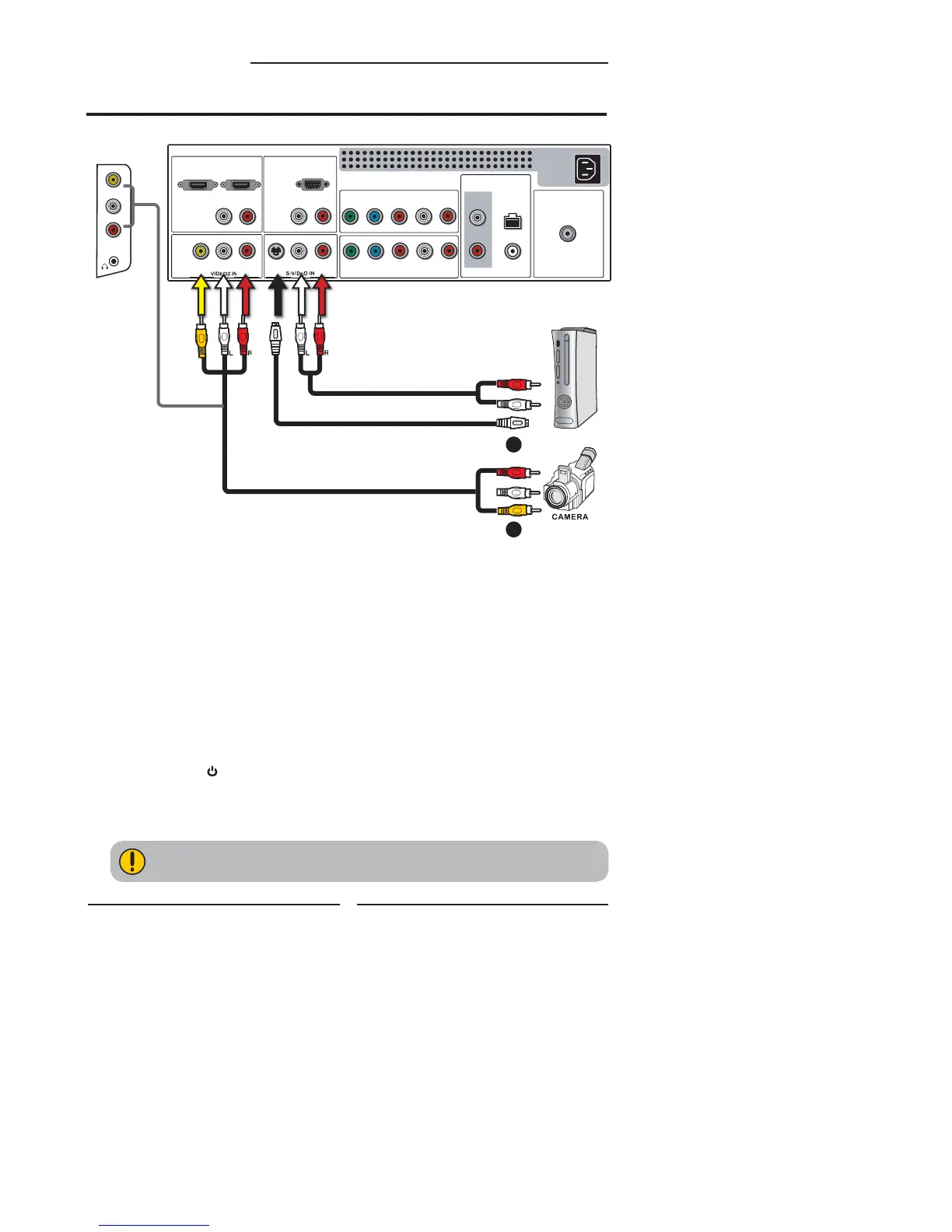

Connecting a Video Camera or Game console
GAME CONSOLE
METHOD A:
Use a composite cable to connect the video camera’s or game console’s composite
video/audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.
METHOD B:
Use an audio cable to connect the video camera’s or game console’s audio output
jacks to the LCD TV’s audio inputs. Use an S-Video cable to connect the video
camera’s or game console’s s-video output jack to the LCD TV’s S-VIDEO IN input
jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a video vis camera or game console, press the INPUT button on the remote
to select VIDEO2/VIDEO1( METHOD A), or VIDEO3 (METHOD B).
Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
