28
Chapter 2 Installing the LCD TV
HDMI2 INHDMI1 IN
AUDIO
LR
LR LR
LR
L
RLR
LR
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
YPbPr AUDIO
YPbPr2 IN
YPbPr
AUDIO
Rear of TV
Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN
jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the INPUT button on the remote to select VIDEO6 or VIDEO7.

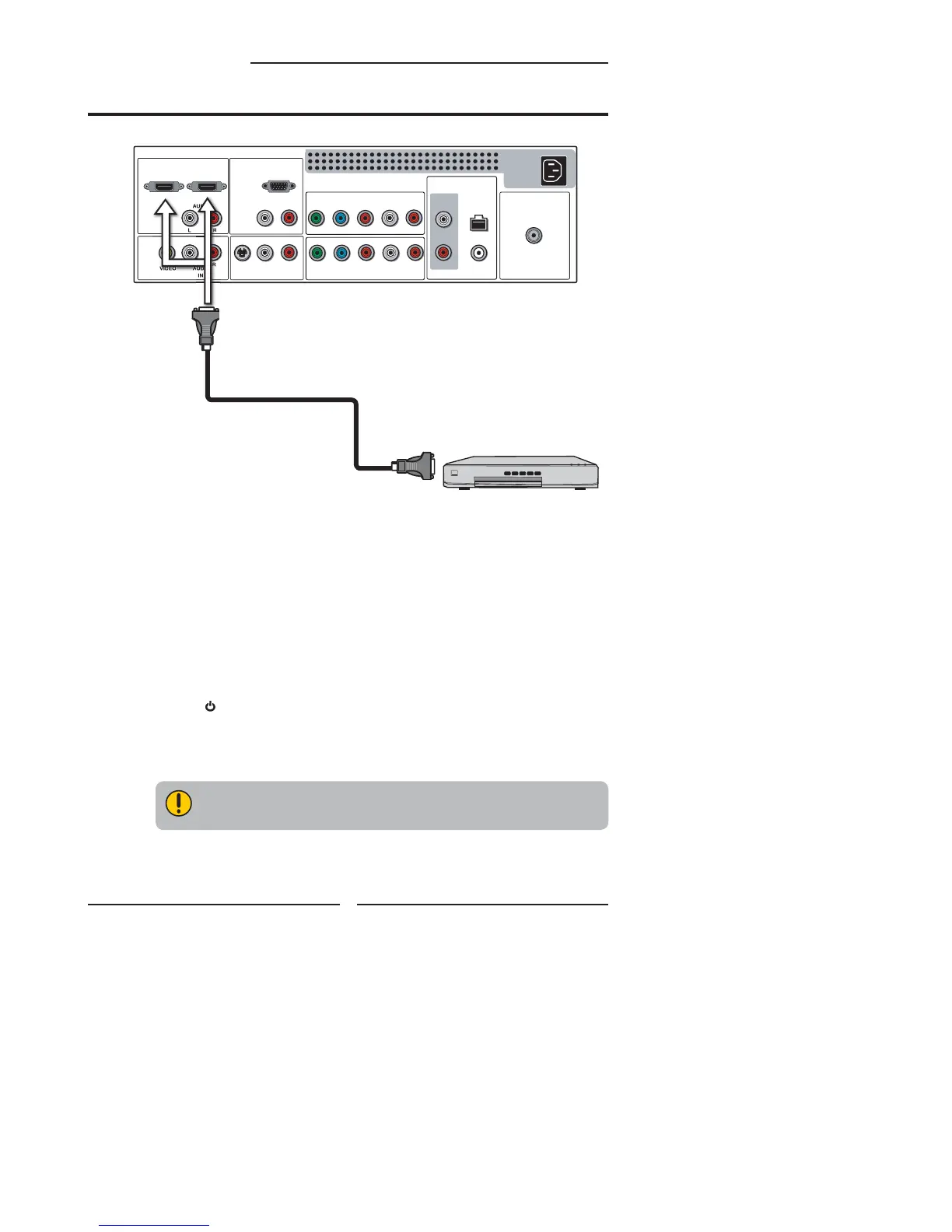

Connecting an AV Equipment with HDMI Connector
The HDMI connector provides both video and audio signals, it’s not
necessary to connect the audio cable.
HDMI Cable
AV EQUIPMENT
To Next Page
