Chapter 2 Installing the LCD TV
C
Rear of TV
A
B
or

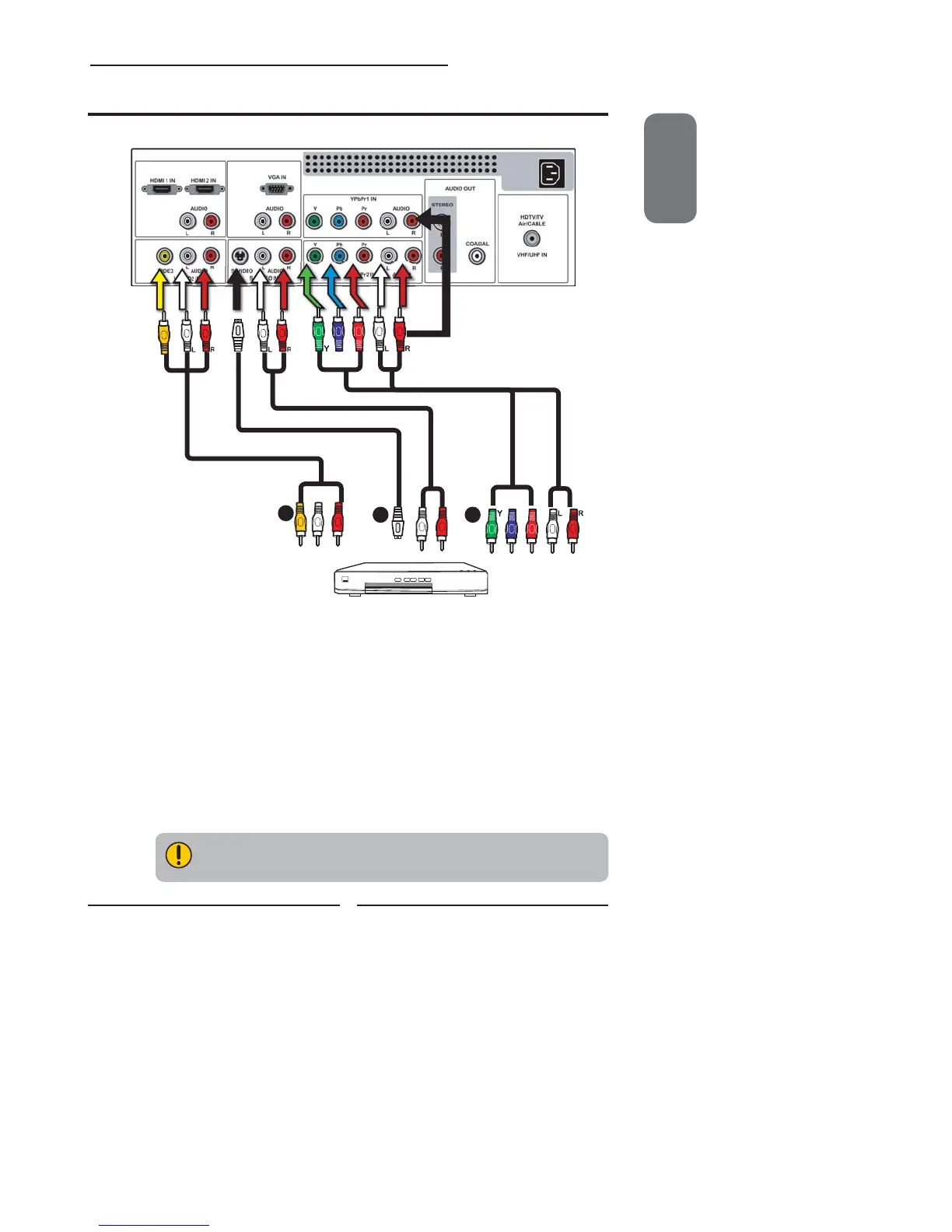

METHOD A:
Use a composite cable to connect the DVD player’s composite video/audio jacks to the
LCD TV’s VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the DVD player’s audio output jacks to the LCD TV’s
audio inputs. Use an S-Video cable to connect the DVD player’s s-video output jack
to the LCD TV’s S-VIDEO IN input jack.
METHOD C:
Use a component cable to connect the DVD player’s component output jacks to the LCD
TV’s YPbPr1 IN or YPbPr2 IN input jacks.
Use an audio cable to connect the DVD player’s component audio jacks to the LCD TV’s
audio input jacks.
DVD PLAYER
PrPb
PrPb
Connecting a DVD Player
The component video jacks on your DVD player are sometimes labeled
YPbPr, or YCbCr. For an explanation of component video, see your DVD
player’s user guide.
AUDIO Cable
S-VIDEO Cable
AV Cable
COMPONENT/AUDIO Cable
