Chapter 3 Using the LCD TV
HDMI 1 INHDMI 2 IN
AUDI O
LR
LR LR
LR
L
RLR
LR
AUDI O
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
Air/CABLE
VHF/UHF IN
YPbPr AUDIO
YPbPr2 IN
YPbPr
AUDI O
Audio Receiver
Audio Am
lifier
A
B

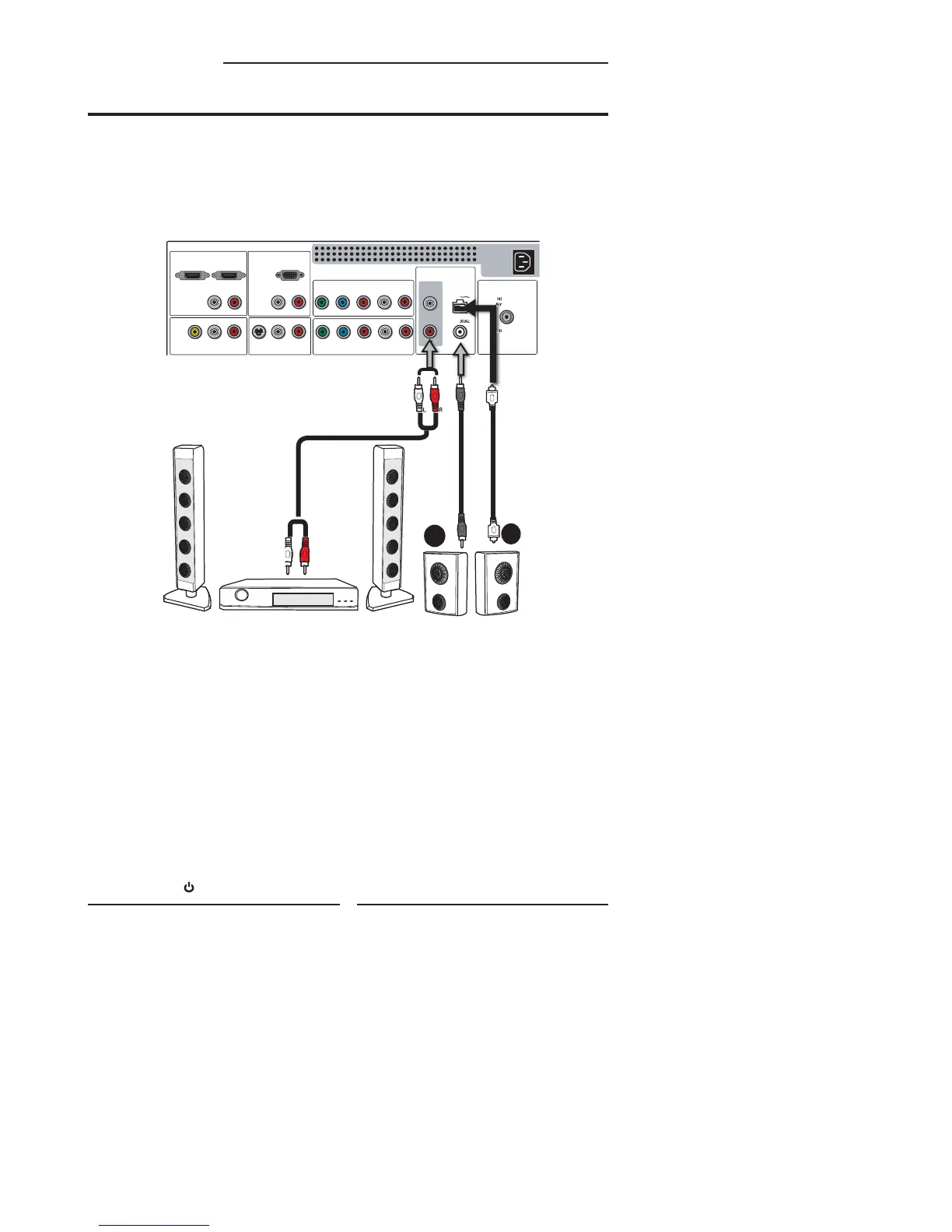

Connecting to Audio Receiver:
Use an audio cable to connect the audio receiver’s audio LINE IN jacks to LCD TV’s
AUDIO OUT jacks.
Connecting to Digital 5.1 Sound System:
METHOD A:
Use a optical cable to connect the audio amplifi er’s OPTICAL IN jacks to LCD TV’s
OPTICAL OUT jacks.
METHOD B:
Use a coaxial cable to connect the audio amplifi er’s COAXIAL IN jacks to LCD TV’s
COAXIAL OUT jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System
AUDIO Cable
For better sound quality, you may want to use a Home Theater/Stereo System.
NOTE: If you have a Home Theater/Stereo System that you would like to use with your new TV, we
recommend that you do NOT use your TV’s audio output for this connection. For the best sound
quality, our product testing has shown that you should connect your Home Theater/Stereo System
directly to your A/V device. I.E. You should connect your Home Theater/Stereo System to your DVD
player, Cable/Satellite box or other AV equipment.
Although not recommended, if you prefer to use the TV audio output to make this connection to your
Home Stereo System, please follow the instructions below.
