GP 44

Spare Parts - 7 -

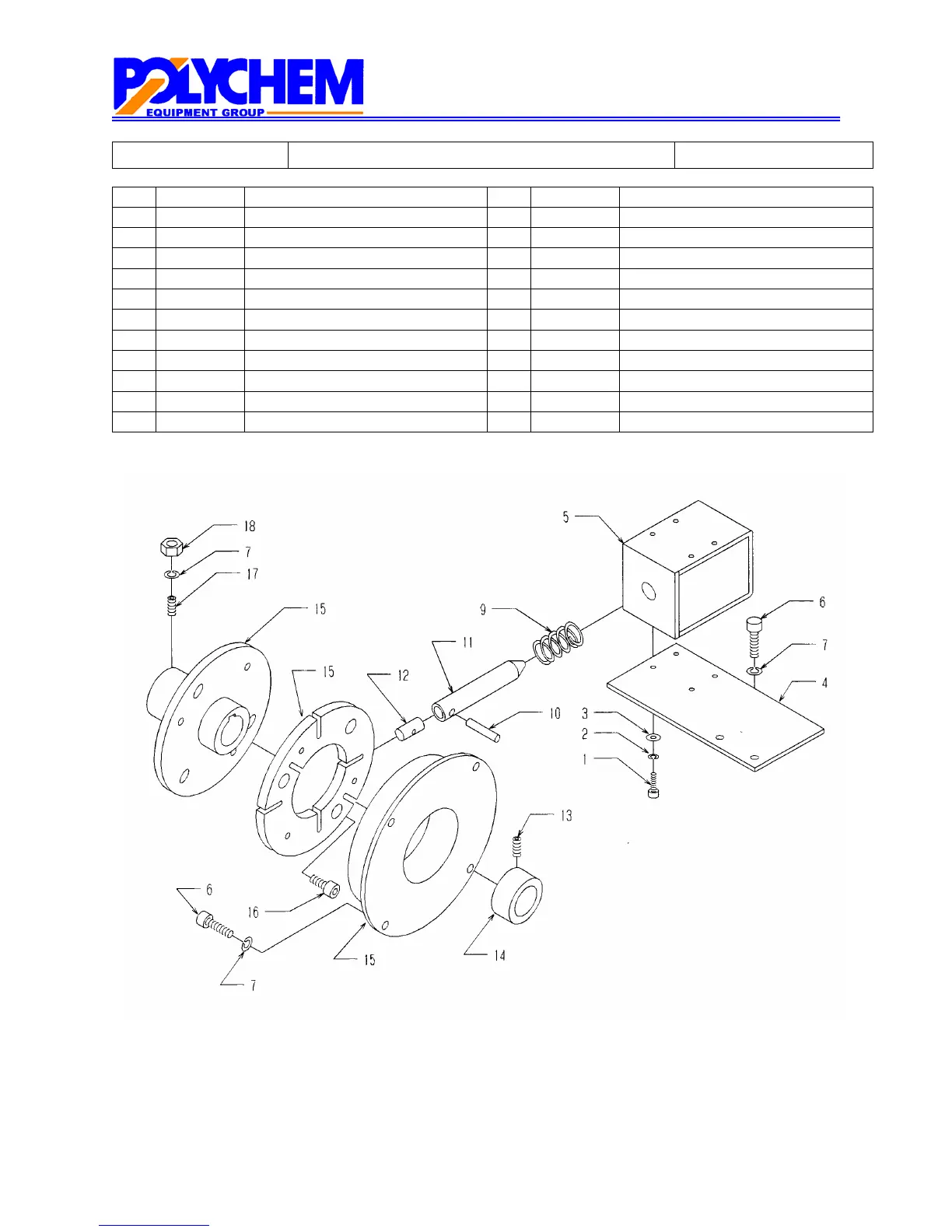

PART LIST REEL BRAKE FIG. A-1-002

Key Part-No Description Key Part-No Description

1 B04110 Cap Screw M4×10 12 N01014 Plunger Rubber

2 B27100 Spring Washer M4 13 B10306 Set Bolt M6×6

3 B26100 Flat Washer M4 14 L00008 Reel Shaft Collar

4 P03118 Reel Solenoid Base 15 E30054 Magnetic Brake TMB5H DC90

5 E30006 Solenoid MD191 DC100V 16 B99032 Cap Screw

6 B04315 Cap Screw M6×15 17 B10315 Set Bolt M6×15

7 B27300 Spring Washer M6 18 B17300 Nut M6

8 19

9 S06010 Solenoid Spring 20

10 B31125 Roll Pin Φ4×25 21

11 L12021 Brake Plunger 22
