KIRK Repeater, Installation and Configuration Guide
1–6

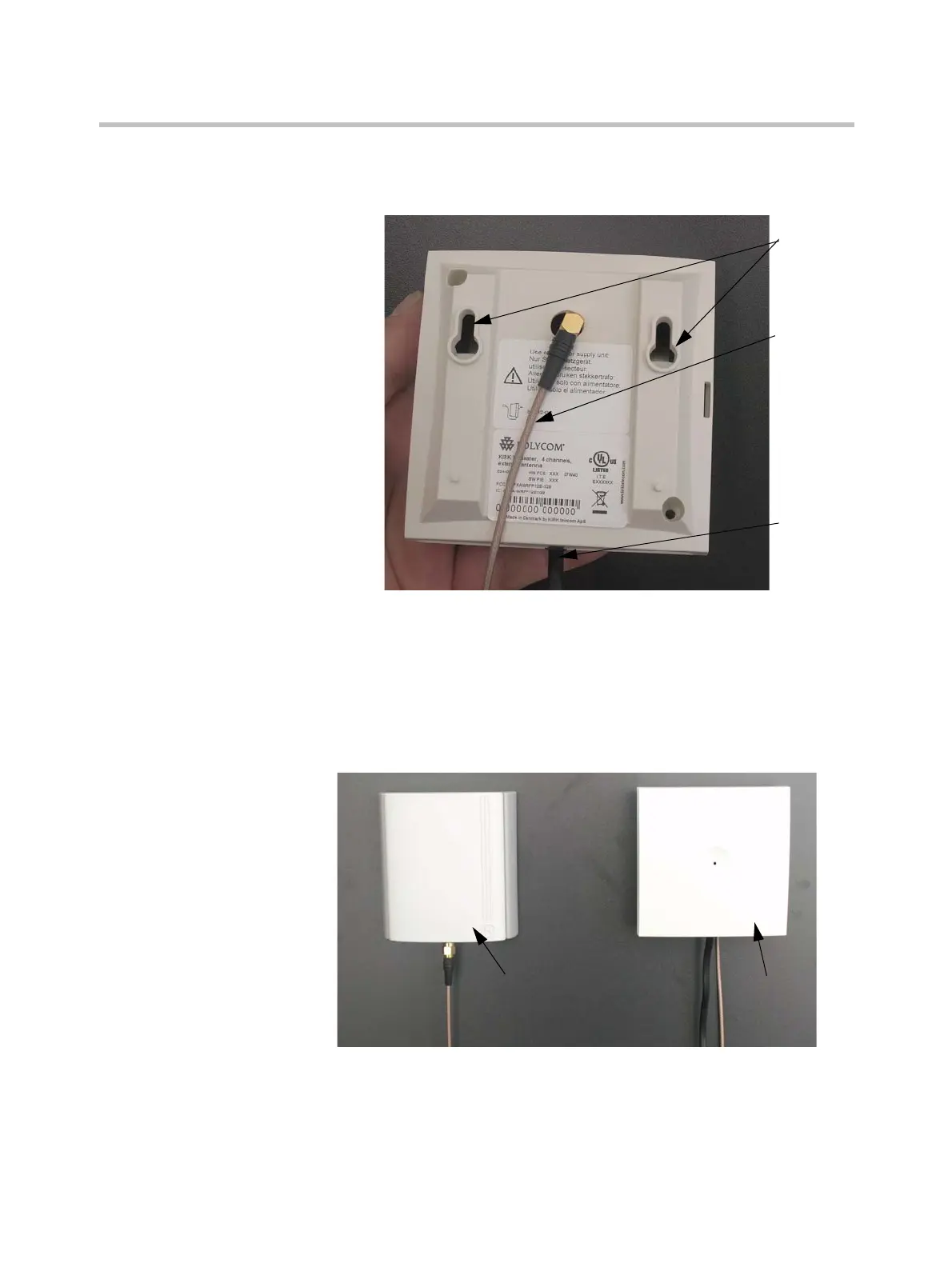

Figure 1-2 Connect Power to the Bottom of the Repeater and External Antenna
Cable to the Rear of the Repeater
1 Connect the power supply cable into the RJ11 connector in the bottom of
the repeater. For repeaters with external antenna, connect the external
antenna cable to the antenna connector in the rear of the repeater as well.
2 Mount the repeater onto the wall using the screws accompanying the
repeater.
Figure 1-3 Repeater and External Antenna Installed on the Wall
RepeaterExternal Antenna
(Only for repeaters supplied
with external antenna
connection)
External
antenna
cable (only
for repeaters
supplied
with
external
antenna
connection
Power
supply
cable
Holes for
wall
mounted
screws
To Next Page
