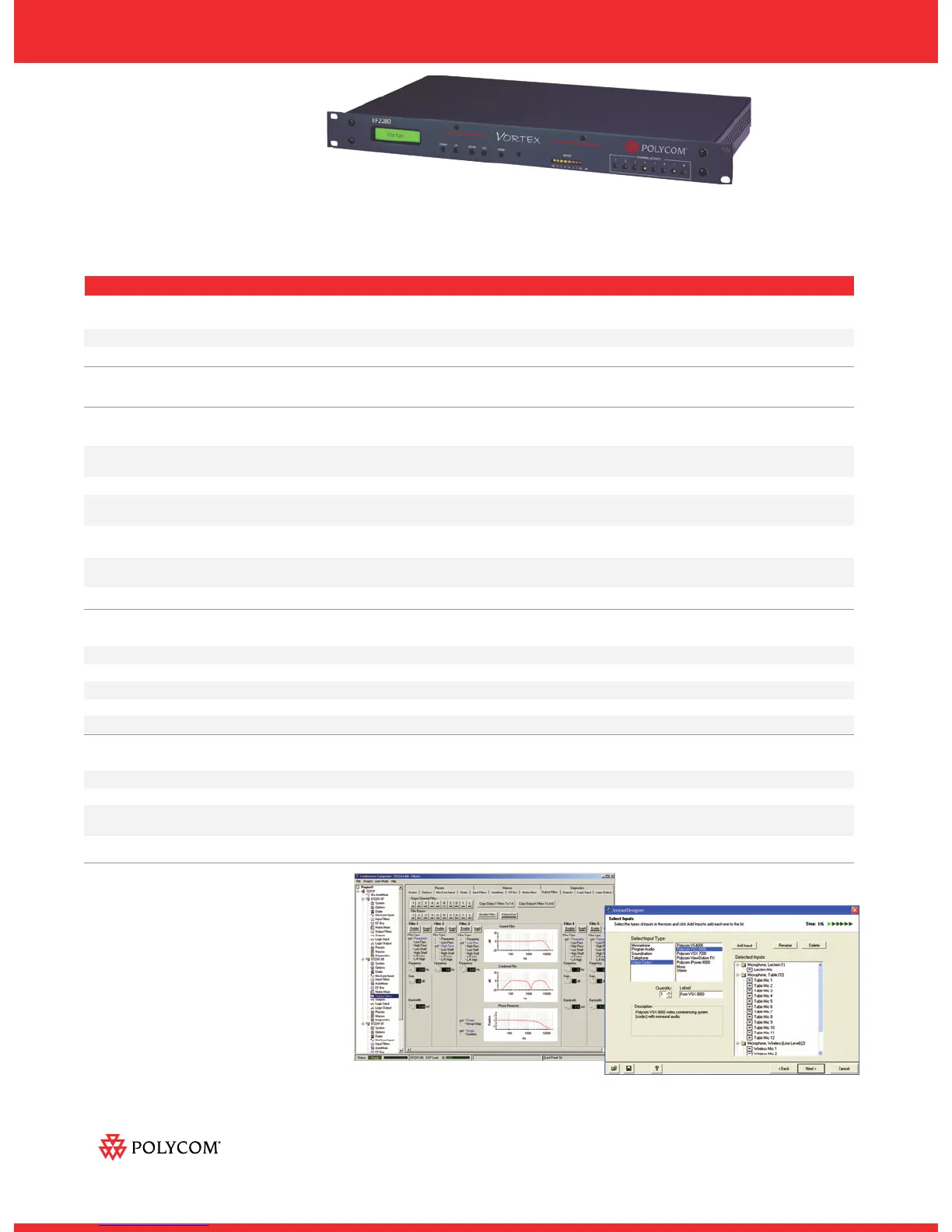

Installed Voice Products Comparison
All Vortex products measure 19” x 9.6” x 1.75”
(483 mm x 244 mm x 45 mm) and are designed
to be installed in a standard equipment rack.
Connections to microphones, video conferencing
equipment and other devices are made on the
rear panel.
Vortex EF2201 Vortex EF2210 Vortex EF2211 Vortex EF2241 Vortex EF2280
A DSP-based “phone Echo and noise canceller Echo and noise canceller Four-channel mic/matrix Multi-channel mic/matrix
add” for audio and for upgrading existing with “phone add” and mixer with phone add and mixer - ideal for large room
video conferencing systems for audio power amp - great for small power amp - great for applications
Feature conferencing stand-alone applications stand-alone applications
Conference Composer™ and
Instant
Designer Software
These powerful software tools, provided with each Vortex unit,
allow you to easily configure your Vortex product(s) for any type
of application. Design your system in a few easy steps with
Instant
Designer, a room configuration wizard that automatically
configures your Vortex product(s) based on the number and type
of equipment required in the installation With support for
Polycom VSX™ video codecs and multi-zoned sound reinforce-
ment/voice lift, InstantDesigner makes it even easier to design
complicated systems in just a few minutes.
Customizable settings in Conference Composer include 5-band
parametric EQ on all inputs and outputs; AGC controls; noise
cancellation levels, matrix mixing (with adjustable cross point
gain levels), macro commands for cascading events and more.
Audio Capabilities
Number of microphone inputs 0114 8
Number of line level inputs
0224 4
Number of line level outputs 0338 12
Phone-Add Capabilities
Analog PSTN network interface
III
Voice Quality
Automatic microphone mixer
III I
Noise cancellation on inputs - reduces IIII I
background noise
Equalization on inputs and outputs
IIII I
Automatic gain control - be heard regardless IIII I
of your proximity to microphones
Number of independent microphone echo 0114 8
cancellation channels for voice clarity
Interfaces to SoundStation VTX 1000
II
for wideband audio - amazing quality!
Integrates with Polycom VSX video conferencing systems III I
Operational Features
10W Speaker amplifier
III
Front panel LCD user interface IIII I
Cross point matrix IIII I
RS232 interface IIII I
Logic control and status IIII
Maximum number of linked devices 8* 888 8*
Other
Compatible with
Instant
Designer™ software IIII I
Create PDF reports of configuration IIII I
Create DXF drawings of the system IIII I
Available in Quick Install Packs with I
SoundStation VTX 1000, mics and speakers
* 8 EF2280’s + 8 EF2201’s
