PSF-100A AND PSF-100B SUCTION OUTLET
FOR ABOVE GROUND POOL
IMPORTANT SAFETY INSTRUCTIONS
(1) READ AND FOLLOW ALL INSTRUCTIONS
(2) This is a submerged suction outlet for use with above ground swimming pool.
(3) For single drain only. Use only ONE outlet for each pump.
(4) Do not locate this suction outlet on sitting areas or on the backrest for such seating area.
(5) Install this outlet at location recommended by the pool manufacturer.
(6) The maximum allowable flow rate of this suction outlet is 45 gallon per minute (2,700 gallon
per hour).
(7) Connection Hose:
• Model PSF-100-A is to be connected with 1 1/4” (31.8mm) diameter hose.
• Model PSF-100-B is to be connected with 1 1/2” (38.1mm) diameter hose.
(8) The suction outlet is to be mounted at the suction outlet opening as specified by the
manufacturer of the above ground pool. The diameter of this opening should be within the

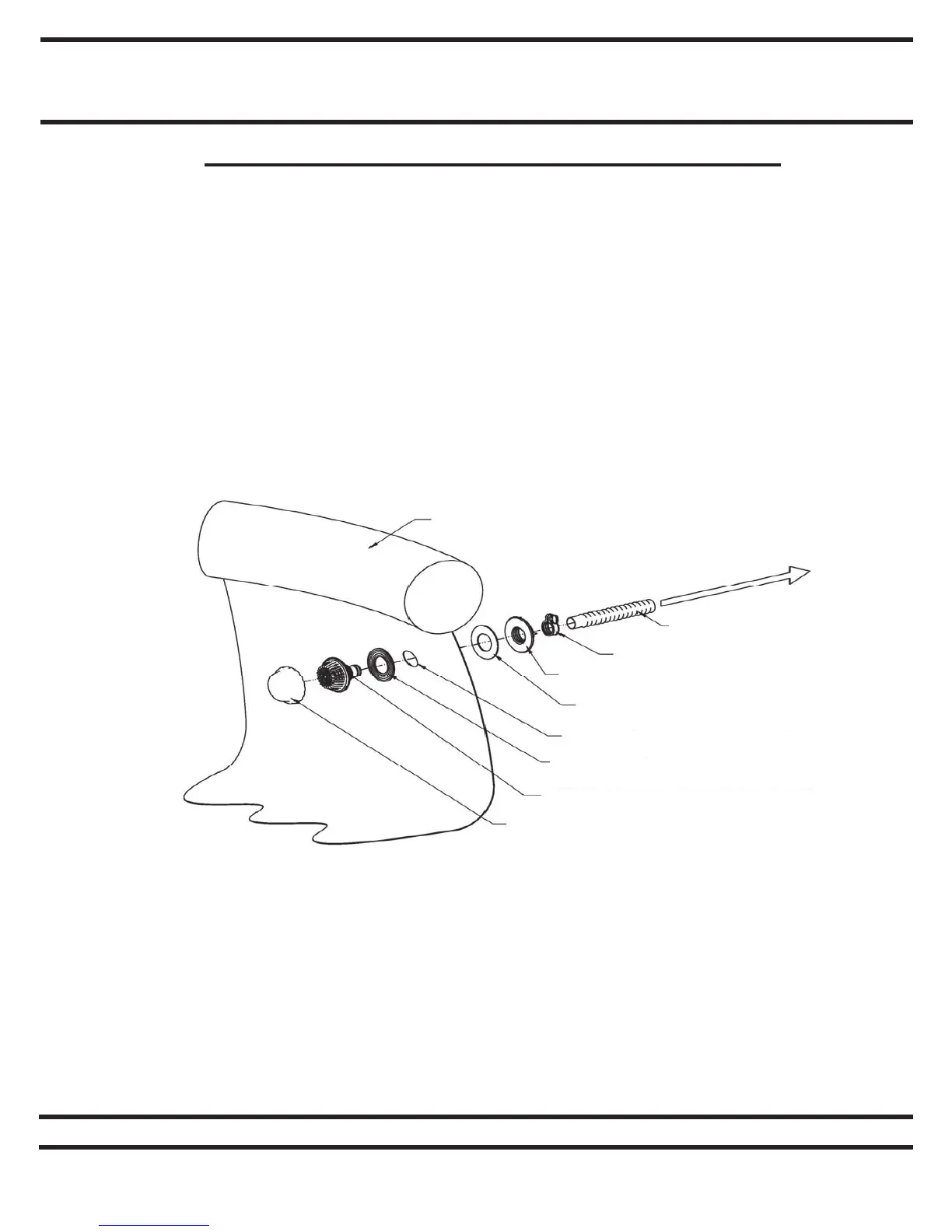

range of 1.77” to 1.85” (45.0mm to 47.0mm). Refer to the following diagram for detail
assembly instructions:
(9) The suction outlet PSF-100A or PSF-100B is to be replace every 5 years.
(10) No tool is required for installation.
(11) Service and Winterizing Instructions
CAUTION! DO NOT EXCEED THE MAXIMUM ALLOWABLE FLOW RATE:
● 45 Gallon per minute (2,700 Gallon per hour).
● Carefully observe and inspect the suction outlet for damage and tampering before each
use of the pool.
● Missing, broken or cracked suction outlet must be replaced before using the pool.
● Loose suction fitting should be reattached or replaced before using the pool.
● Remove and store Suction Outlet assembly if temperatures are expected to fall below 32° F.
READ, THEN KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
SWIMMING POOL
CONNECT TO THE INTAKE
OF FILTER PUMP
WATER HOSE
HOSE CLAMP
LOCK NUT, TO BE TIGHTENED BY HAND
FLAT WASHER
FITTING OPENING, 45-47MM DIAMETER
SUCTION FITTING, PSF-100A OR PSF-100B
RUBBER GASKET
WATER CAP, TO BE INSTALLED ONLY DURING
PUMP MAINTENANCE OR FILTER CHANGE
