11/24

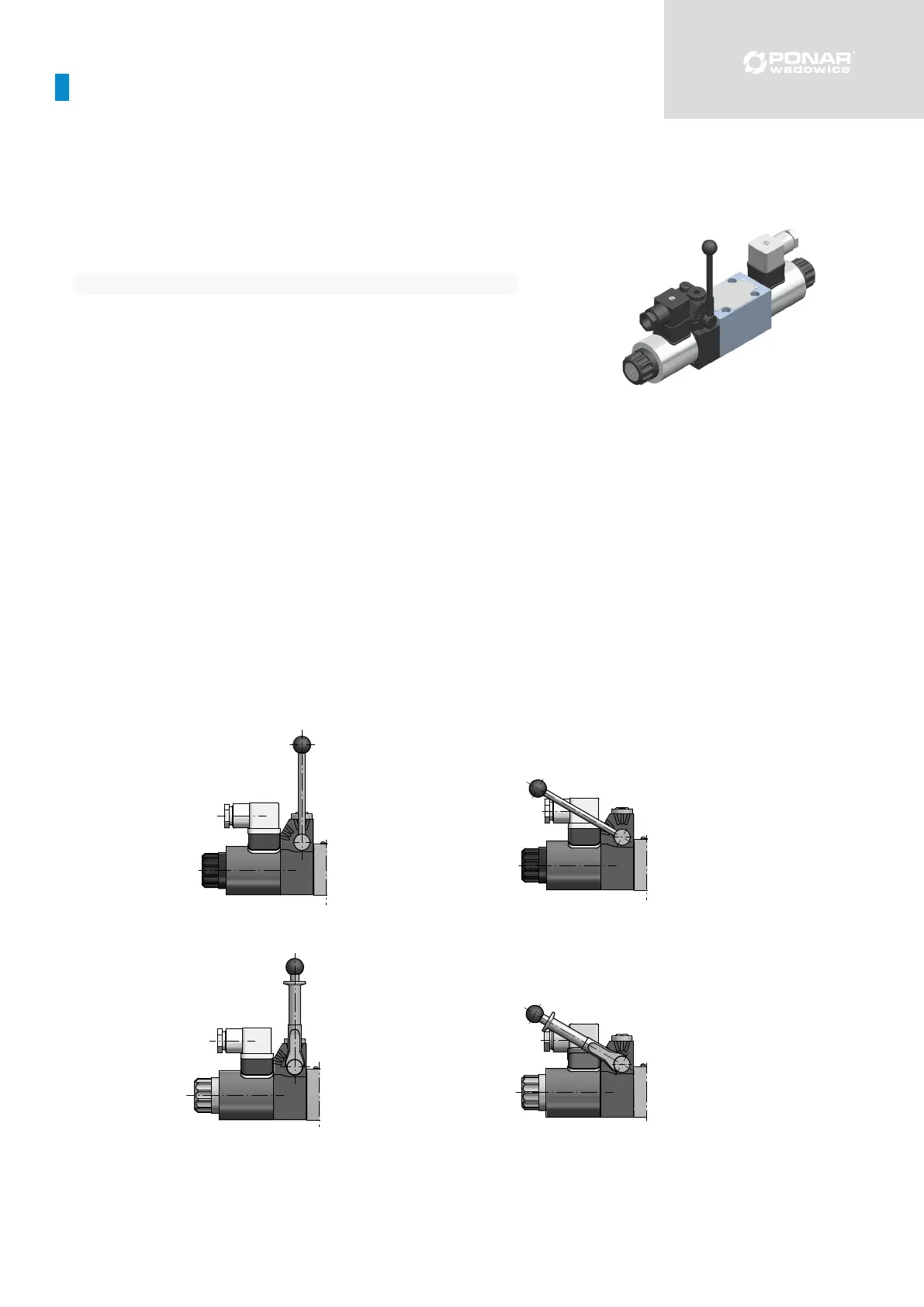

Manual operation lever for directional
spool valve WE6 s. 32
Directional spool valve WE6… type is also available in versions with
optional equipment:
- manual control lever - versions WE6.../...H...; WE6.../...HS...
- manual control lever with a lock - versions WE6.../...HF...; WE6...HSF...
DESCRIPTION OF OPERATION
After switching the valve by manual control lever (options ...H...; ...HS... without
a lock), the lever returns to the initial (neutral) position automatically.
After switching the valve by solenoid, the manual control lever does not
change its neutral position and is not active.
In order to switch the spool valve by using manual control lever (options
...HF...; ...HSF... with a lock), one should move the block sleeve up and change
the angle of the lever. In order to keep the lever in the switched position,
move the block sleeve down to the stop.
After unlocking, the lever returns automatically to the initial (neutral) position.
During switching the valve by solenoid, the lever should be in the middle
(neutral) position, where it is not active and does not block the position
of the spool.
WE6.../...H... WE6.../...HS...
WE6.../...HF... WE6.../...HSF...
ADDITIONAL EQUIPMENT
WE6.../...H...
WE6.../... HF...
WE6.../...HS...
WE6.../... HSF...
