Pondmaster ProLine Pro1000 - Pro 3000 Pump Selection and Specifications; Pro 3000 Pump Reference Chart; Plumbing and Installation; Bulkhead Fitting Assembly

Pro 3000 Model
CHOOSING THE CORRECT PUMP
A good rule of thumb for garden ponds from 100 to 3000 gallons is to circulate the entire volume of the
pond every 1-2 hours to ensure good circulation while providing enough flow for an esthetically pleas-
ing waterfall, stream or fountainhead. Your Pro3000 Filter and Falls was therefore designed to perform
equally well with pumps of 1000 to 3000 GPH capacity.
We recommend our Pondmaster 1200 and 1800 submersible pumps for smaller ponds under 1000
gallons; our 2000 and 3000 HY-Drives and Pro 2100 and 2600 pumps for greater head heights; and for
even greater flows our Pro 3200-XP. See Pro 3000 Pump Chart Below

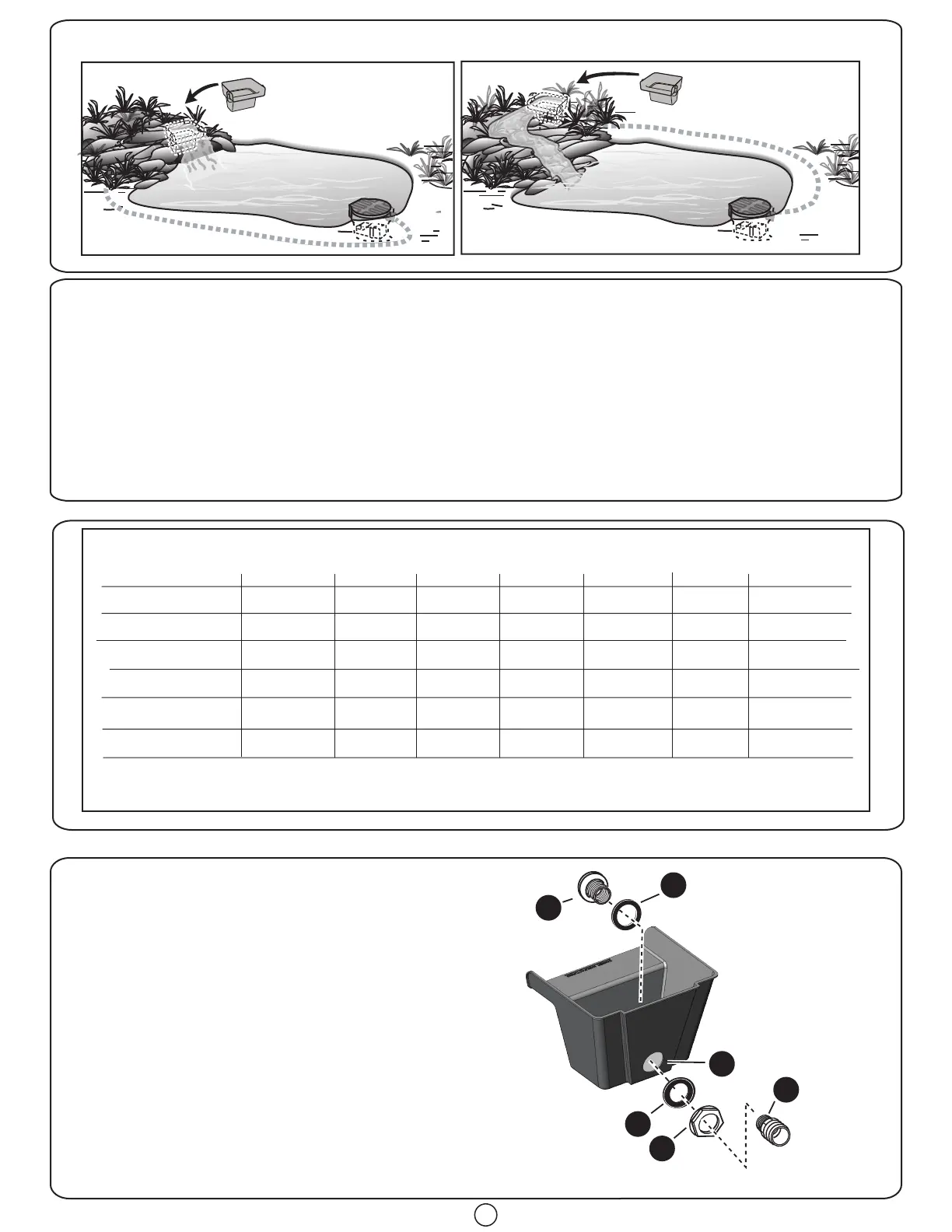

PRO SKIMMER
with submersible
Pump
Water Fall Box
with small stream
Water Fall Returning
Directly to Pond
PRO SKIMMER
with submersible
Pump
PRO 3000 PUMP REFERENCE CHART
Name
Model 12
Model 18
HY-Drive 1600
HY-Drive 2100
HY-Drive 2600
HY-Drive 3200
Model #
#02722
#02728
#02663
#02665
#02667
#02680
Wattage Range*
110 - 38
150 -40
125 - 110
192 - 142
275 - 220
210 - 194
GPH @ 0’
1200
1500
1800
2125
2700
3500
GPH @ 1’
970
1500
1700
2075
2550
3300
GPH @ 5’
800
1100
1400
1750
2450
2050
GPH @ 10’
580
875
1000
1300
1975
650
Shutoff
13’7”
16’6”
17’0”
22’5”
26’5”
12’0”
* Watts decrease as pump loads increase during normal usage. Examples show range from 0’ to shut-off; watts continue to decrease as flow decreases.
PLUMBING
Note that it is often easiest to plumb the flexible hose to
the Waterfall Box and set BOTH in position BEFORE
excavating the pond. The soil from the pond excavation
then be used to cover the hose and backfill around the
Waterfall Box, saving time and effort.
NOTE: Some units are shipped with Bulkhead Fitting
assembled. If your unit requires assembly, slide Rubber
Gasket (1) over Bulkhead Fitting (2) and insert through
opening in Waterfalls box wall (3). Place thinner Rubber
Gasket (4) over Bulkhead threads before attaching Nut (5).
Wrap threads of fitting (6) with Teflon tape before
screwing into Bulkhead Fitting.
2
3
4
5
6
1
Thinner
Rubber
Gasket
Thicker Rubber
Gasket
5
