Pool Warehouse SUNRAY - Prepare Pool Foundation

No Diving or Jumping. Observe all Safety Rules.
1-6
C. Prepare the Foundation of your Pool

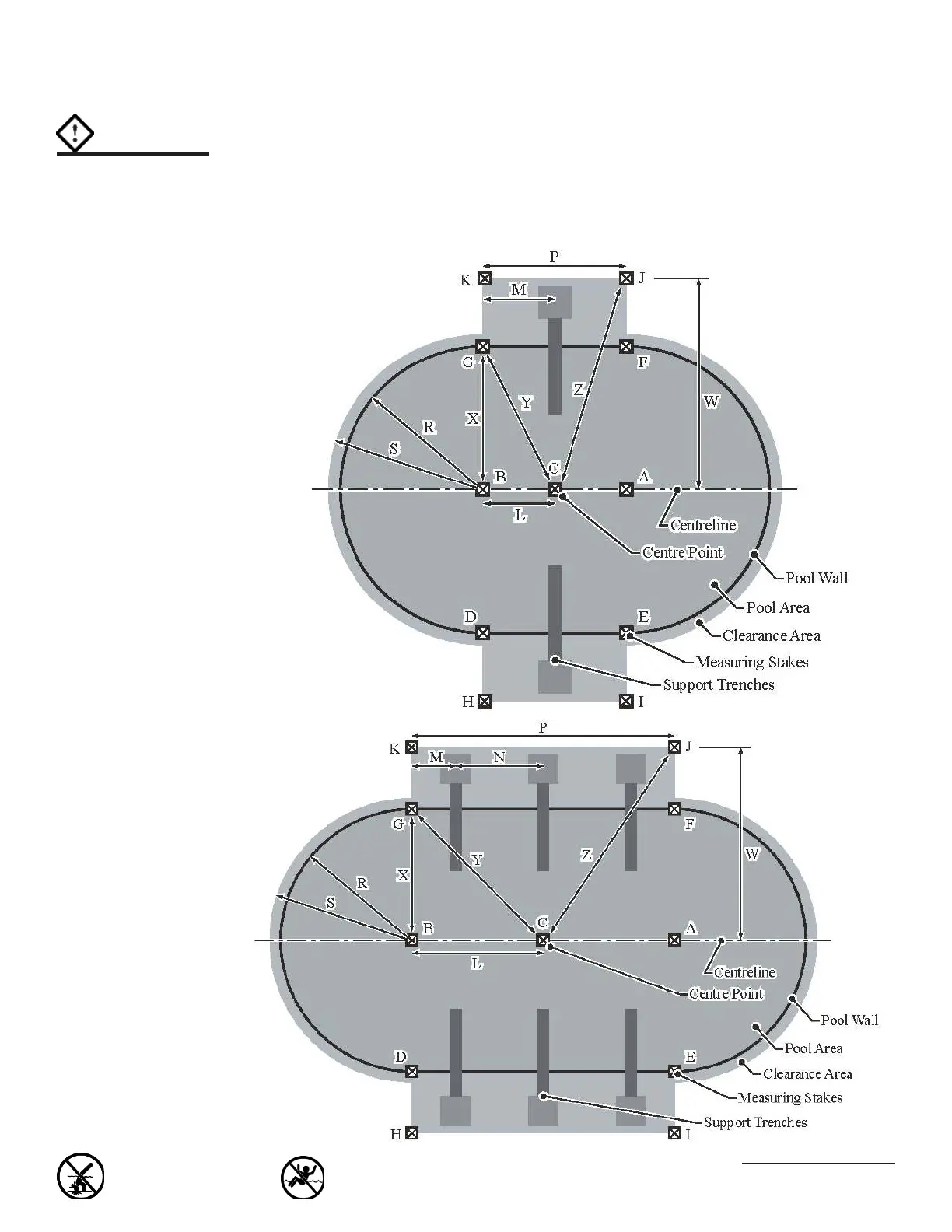

1. Choose the Correct Ground Preparation Drawing
a. Choosethedrawingthatmatchesyourpoolsizefromtheveplandrawingsbelow.
Thisdrawingwillhaveallofthenecessarydimensionsforthegroundpreparation
instructionsthatfollow.NOTE: Please be sure to use your pool's footprint for
your pool size on the last pages of this Section 1.
Important:
Whenlocatingthe
centrelineofthepool,
be suretotakeinto
considerationany
structures(deck,patio,
house)orrelevantitems
(changerooms,gazebo,
etc.)thatthepoolmay
needtolineupwithand
ensurethatthepoolisin
themostvisualpleas-
inglocationforyour
property.
12 x 18 (3,66m x 5,49m)
Oval Pool Dimensions
R 76-1/2" (193 cm)
S 88-1/2" (224 cm)
L 28" (72 cm)
M 28" (72 cm)
P 56" (143 cm)
W 96" (244 cm)
X 72" (183 cm)
Y 80-1/2" (204 cm)
Z 100" (254cm)
12 x 18 (3,66m x 5,49m)
12 x 24 (3,66m x 7,32m)
12 x 24 (3,66m x 7,32m)
Oval Pool Dimensions
R 74-1/4" (188 cm)
S 86-1/4" (218 cm)
L 67-7/8" (170 cm)
M 20" (51 cm)
N 48" (122 cm)
P 135-3/4" (343 cm)
W 96" (244 cm)
X 72" (183 cm)
Y 86-1/2" (219 cm)
Z 117-1/2" (297 cm)
