Pool Warehouse SUNRAY - Hardware and Buttress Assembly

No Diving or Jumping. Observe all Safety Rules.
1-16
KEY  PartName
9  Upright
15  Diagonal
16  Diagonalbracket
8  Strap
11  Holddownplate
13  Curvedbottomrail
14  Baseplate
18  Topplate
20  RailSupport
23  Baseplate
KEY  PartName
-  Hardwarebag,1persetofbuttresses;includes;
10  1/4"-20NCserratedflangehexbolt
3  No.12x1/2"self-tappingscrew,panheadPhillips
21  1/4"-20NCx3/4"hexbolt
26  1/4"-20NCx2-1/4"hexheadbolt
Inside of Pool
13
14
11
8
15
9
16
23
13
19
18
21
10
21
10
26
21
21
13
20
10

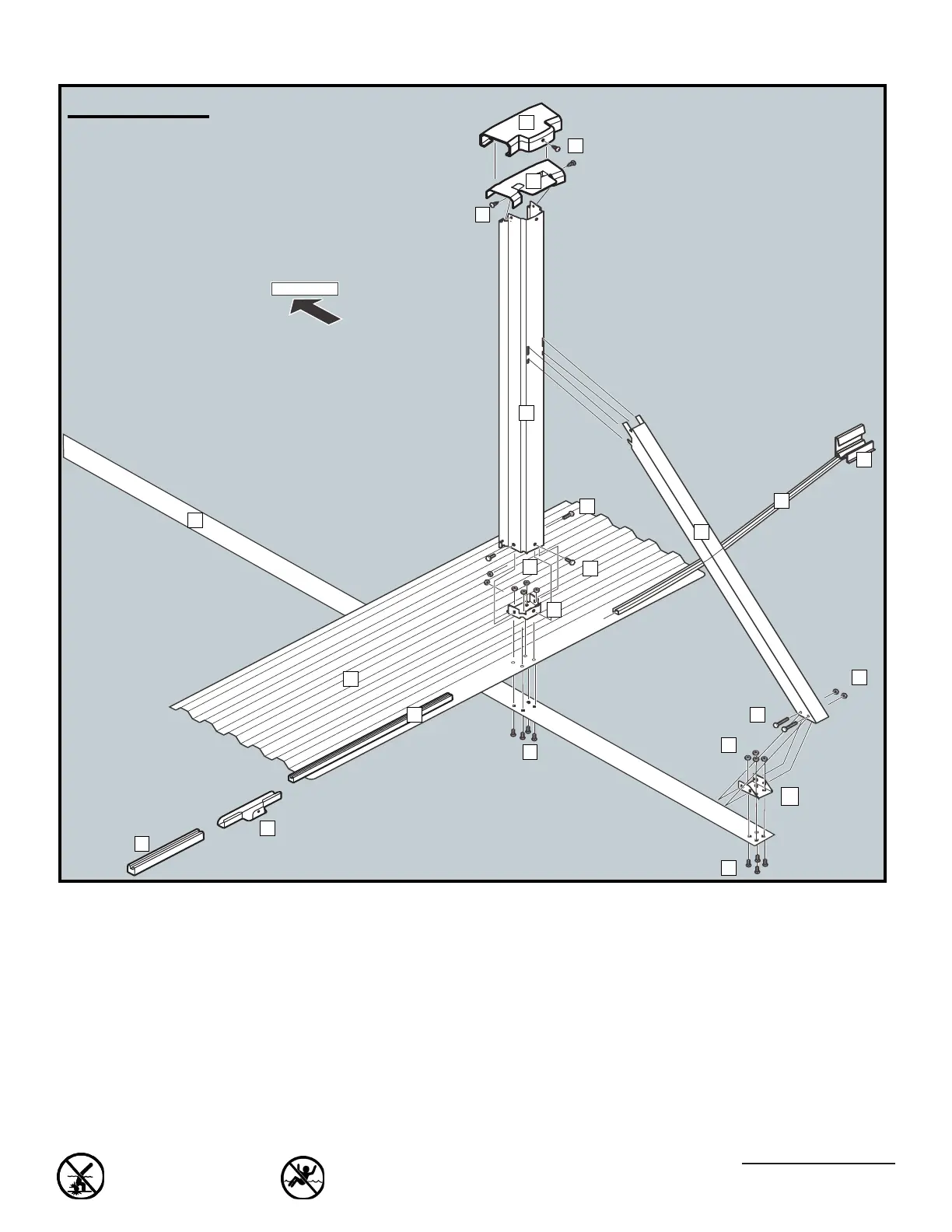

Parts List and
Overview of
Buttress
Assembly
17
3
