No Diving or Jumping. Observe all Safety Rules.
1-23
Strap3'-11"(2 Places)
END SIDE
- Bottom Rail
44-3/4" X 6'R X 8 Places
- Upper Rail
45 1/2" X 5'6"R X 8 Places
12'-3"
4'-9"
TRANSITION A
- Bottom Rail
55-7/8" X 9'R X 4 Places
- Upper Rail
56 3/4" X 9'R X 4 Places
R6'-5"
4'-8"
12'-0"
10'-7"
17'-5"
8'-0"
12'-10"
measure rail like this
Gap in the straight side between
Bottom Rails in the Vertical
Clips is 4"
DO NOT measure rail like this
Gap in the end side between
Bottom Rails in the Base Plate
is 0.599"
STRAIGHT SIDE
- Upper Rail
8" X 9'R X 2 Places
NLR-1320 143
NLR-13201 64
NLR-1440335
NLR-1320 143
NLR-13201 64
NLR-1440335
NLR-1510139
NLR-1510139
Notes:
1. Perimeter of the wall is 595"
2. Length of the wall is 596"
3. All dimensions are in inches unless otherwise specified.
4. All dimensions are referenced from the wall location.
5. Manufacturers tolerances and field condition may result
in dimensional variations.

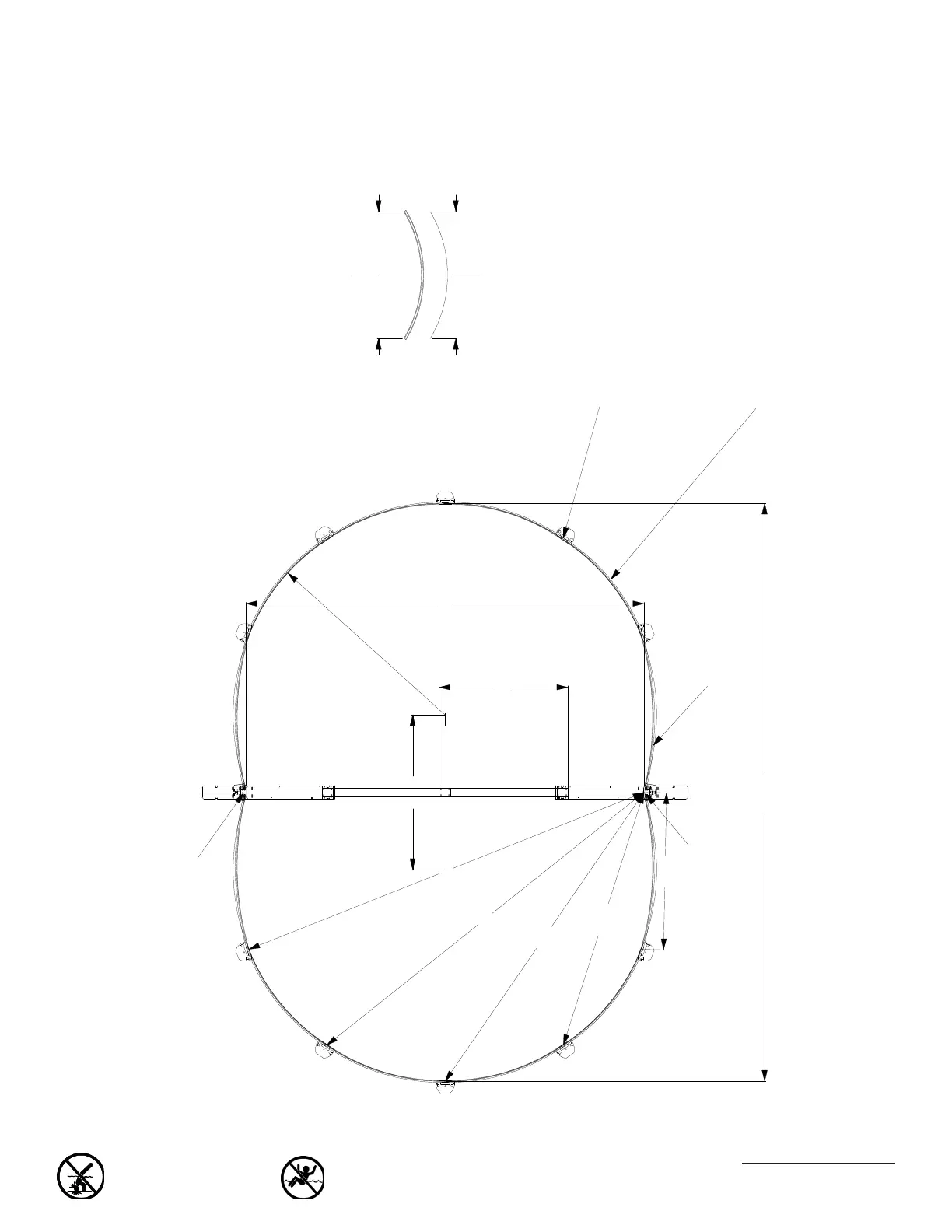

12 x 18 Footprint
To Next Page
