Pool Warehouse SUNRAY - Section 2: Assembling the Pool Base & Side Buttresses; Install Curved Bottom Rails

No Diving or Jumping. Observe all Safety Rules.
2-1
1. Install the Curved Bottom Rails
a. Each pool uses two, three or four different types of curved bottom rails (key 13). The
rails are colour coded or stamped with a part number. Use the chart below to choose
the types and quantities of bottom rails for your pool (part numbers are shown in
brackets under each colour).
The 18 x 33
(5,49m x 10,05m)
pool is the only
size that uses
all four types

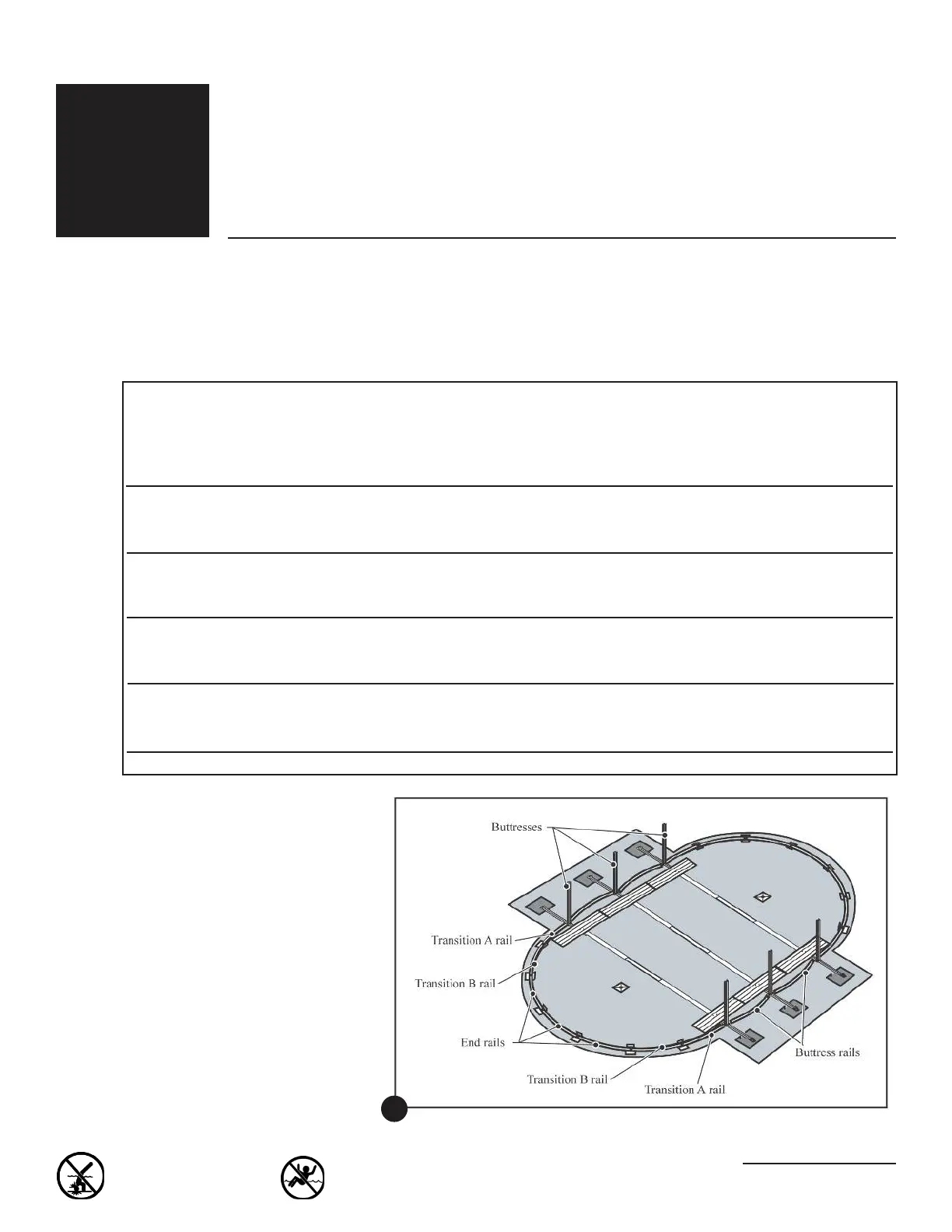

of rails. Dia-
gram 1 shows
the locations
for each type.
Section
Pool Component Installation Manual
Assembling the Pool
Base & Side Buttresses
2
1
Quantity and Colour Code (with part numbers)
Pool Size Buttress Rail Transition Rail A Transition Rail B End Rail
12' x 18' (3,66m x 5,49m) n/a 4 blue n/a 6 plain
(no. 1460134) (no. 1460061)
12' x 24' (3,66m x 7,32m) 4 white 4 blue n/a 6 plain
(no. 1254424) (no. 1460135) (no. 1460061)
15' x 24' (4,57m x 7,32m) 2 white 4 red n/a 8 plain
(no. 1254424) (no. 1460136) (no. 1460062)
15' x 30' (4,57m x 9,14m) 4 green 4 red n/a 8 plain
(no. 1460033) (no. 1460136) (no. 1460062)
18' x 33' (5,49m x 10,05m) 4 green 4 red 4 yellow 6 plain
(no. 1460033) (no. 1460136) (no. 1255624) (no. 1460063)
(n/a=not applicable; plain=no colour code)
