4PE12MAN-REV 01.052419
REQUIRED TOOLS
• Phillips head screwdriver
• Battery powered drill (optional)
• 3/32 drill bit (optional)
• Double-sided tape (optional)
INSTALLATION
POSITIONING OF THE ALARM
Key factors for proper alarm positioning:
1) Direction of the return line water flow.
2) Distance of the alarm from all points of the pool.

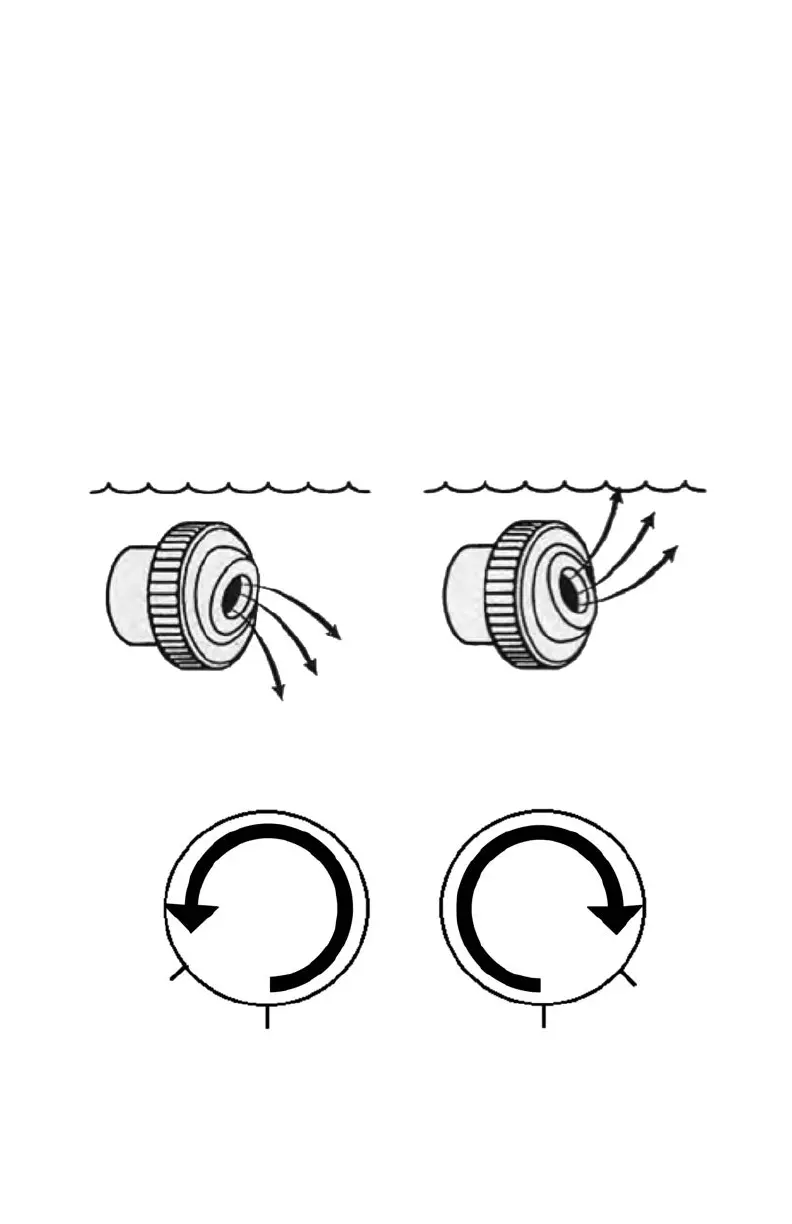

• The eyeball of the return line must be facing a downward direction as to not disturb the
surface of the water.
CORRECT INCORRECT
• Ensure that the eyeball of the return is not facing the center of pool but is either creating
a clockwise or counterclockwise water flow.
RETURN
RETURN
ALARM
ALARM
Round Shaped Pools
• Ensure the alarm is centrally located for the shortest distance to all points of the pool.
To Next Page
