MI TOWER STAIRS 2.7m & 4.7m - ASSEMBLY
Page 16

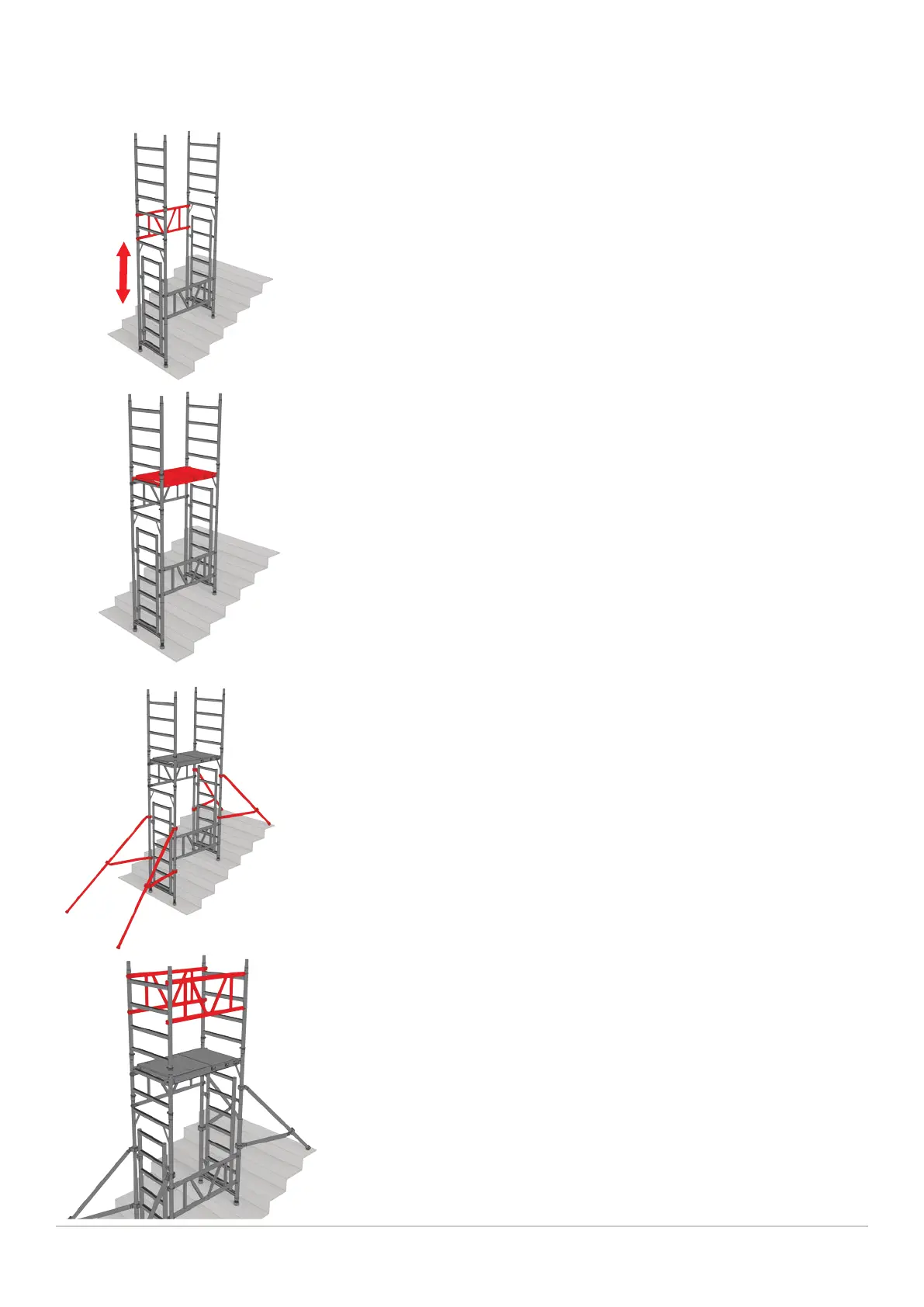

STEP 6
STEP 7
STEP 8
STEP 9
Attach another guardrail brace panel on the opposite side to the gate
locking pin. Ensure the upper brace hook is positioned below the tenth
rung of the lowermost frame assembly and the eighth rung of the upper-
most frame assembly.
It is easier to attach the guardrail brace panel by sliding it towards and then
through the lowermost frame assembly before attaching the opposite
hooks. Using the lower guardrail brace panel and a spirit level as a guide,
adjust the lowermost legs to bring the Mi TOWER STAIRS square and level.
Ensure all hooks are facing outwards and correctly locked on to the frame
tubes.
Stand inside the Mi TOWER STAIRS and fit the first platform on the eighth
rung of the uppermost frame assembly, ensuring the trap door is
positioned at the lowermost end of the Mi TOWER STAIRS.
Make sure that the Wind-Lock catch engages correctly.
Fit an easy-lock stabiliser to each corner of the Mi TOWER STAIRS. The
position of the upper and lower couplers will depend on the pitch of the
staircase and position of any landings or floors. Ensure the stabiliser
footprint is as square as possible within the confines of the staircase sides.
Adjust each stabilisers length so that each foot is in contact with the floor
or step.
Make sure all Easy-Lock clamps are correctly secured.
Open the lowermost walk-through gate and once in the Mi TOWER STAIRS
close and secure it using the gate locking pin. Open the hatch door and
using the rungs of the gate, climb until you are half way through the
platform’s trap door. Now manoeuvre yourself so that you are sitting on
the platform, with your legs through the trap door and your feet resting on
the rungs of the gate below the platform. From this position, you should
take a guardrail brace panel, one at a time and attach so that the upper
jaws are positioned above the twelfth rung of the uppermost frame assem-
bly. Ensure all hooks are facing outwards and correctly locked on to the
frame tubes.
At this step if building a 2.7m platform height Mi TOWER STAIRS, jump to
step 13. Otherwise carry on from step 10.
To Next Page
