MI TOWER STAIRS 2.7m & 4.7m - ASSEMBLY
Page 15

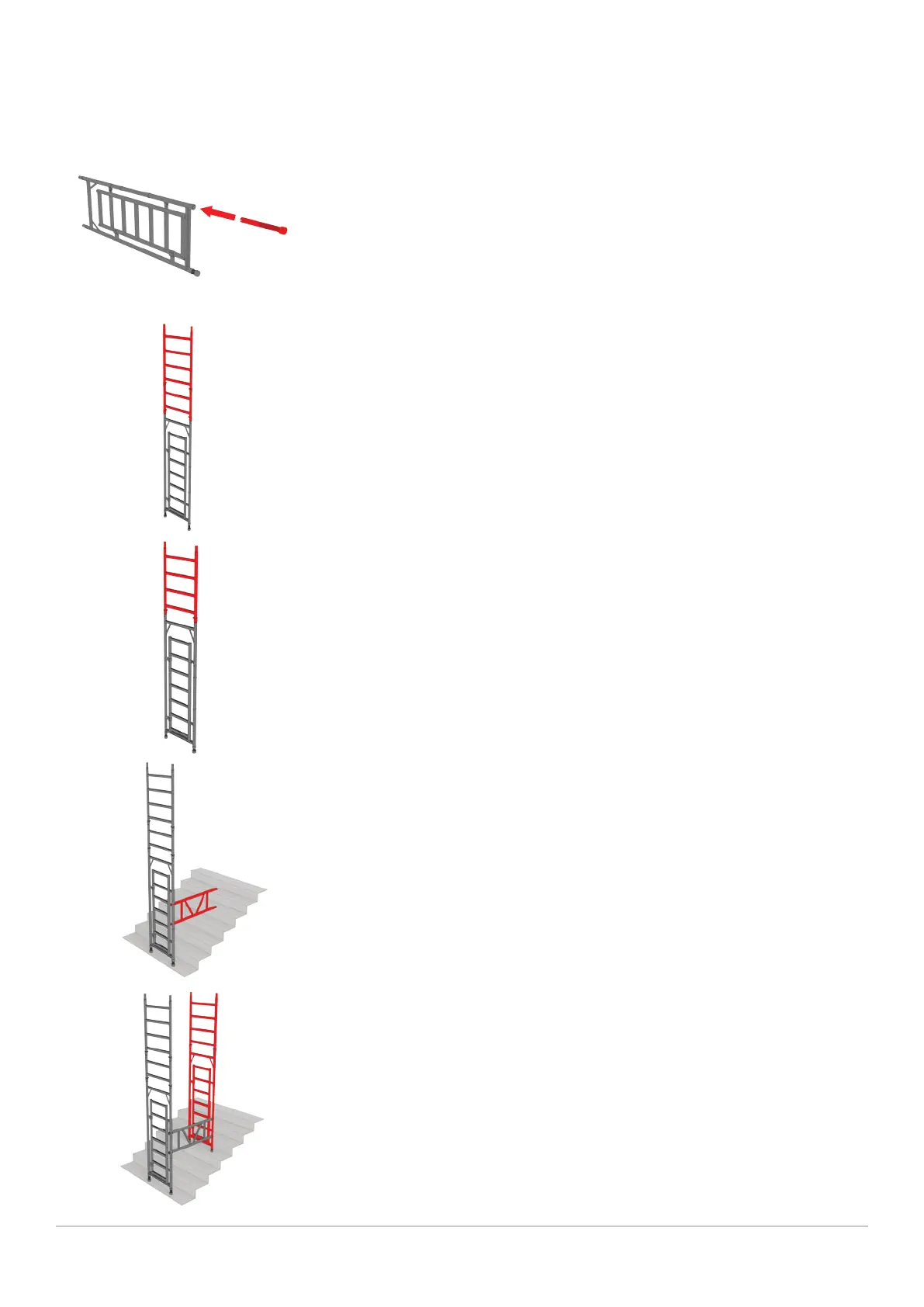

STEP 1
STEP 2
STEP 3
STEP 4
Fully insert the adjustable legs with rubber feet into two walk-through gate
frames, turning the leg’s height adjustment collar to bring alll four legs to
the lowest position.
STEP 5
Construct the lowermost frame assembly. Release the easy-clip frame clips
on the two rung and one four rung frame. Take the lowermost
walk-through gate frame and fit the two rung frame on top followed by the
four rung frame.
Apply the Easy-Clip frame clips and ensure they are correctly locked.
Construct the uppermost frame assembly. Release the easy-clip frame clips
on one four rung frame. Take the uppermost walk-through gate frame and
fit the four rung frame on top.
Apply the Easy-Clip frame clips and ensure they are correctly locked.
Place the lowermost frame assembly at the lowermost position of the
staircase and attach the guardrail brace panel on the gate locking pin side
of the frame ensuring its upper hook is placed above the upper positioning
ring.
Ensure the two hooks are facing outwards and correctly locked on to
the frame tube.
With your assistant holding the lowermost frame assembly and guardrail
brace panel, place the uppermost frame assembly at the uppermost
position of the staircase.
Attach the guardrail brace panel to the vertical tube of the uppermost
frame assembly ensuring the upper brace hook is above the lower
positioning ring.
Make sure the hooks are correctly locked on the frame tube of the
uppermost frame assembly.
To Next Page
