MI TOWER STAIRS 2.2m & 4.2m - ASSEMBLY
Page 14

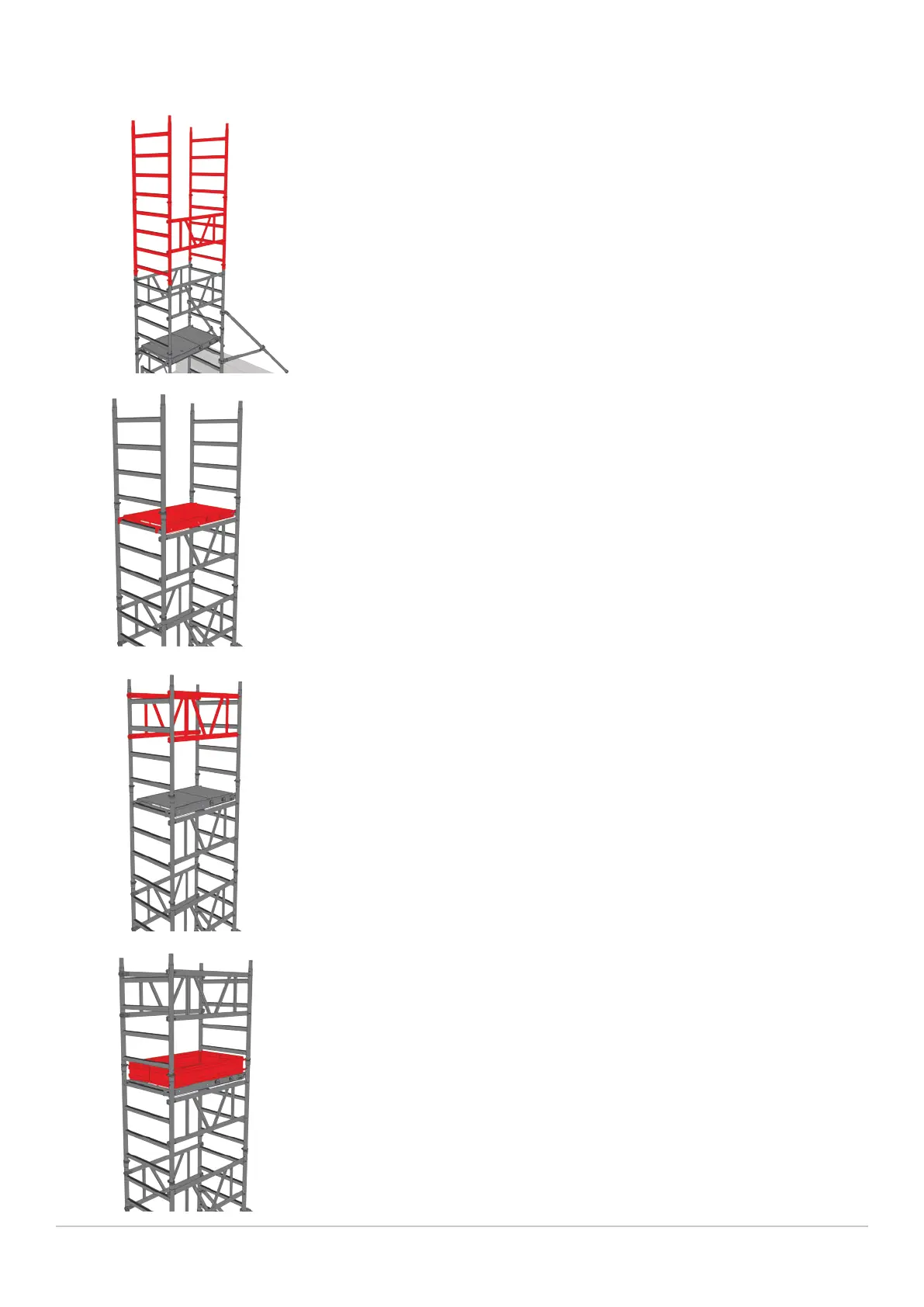

STEP 10
STEP 11
STEP 12
STEP 13
Access the first platform and fit one set of conjoined frames to each end of
the Mi TOWER STAIRS and apply the easy-lock frame clips. Next, attach a
guardrail brace panel to the Mi TOWER STAIRS, with its lower jaw
positioned above the fourteenth frame rung on the uppermost frame
assembly.
Ensure all claws are facing outward and correctly locked on to the
frame tube.
Carefully fit the second platform on the sixteenth rung on the uppermost
frame assembly.
Make sure that the Wind-Lock catch is engaged.
Position yourself so that you are half way through the second platform’s
trap door. Now manoeuvre yourself so that you are sitting on the platform,
with your legs through the trap door and your feet resting on the frame
rungs. From this position, you should take each of the brace panels, one at
a time and attach so that the upper jaws are positioned above the twenti-
eth rung on the uppermost frame assembly.
Ensure all claws are facing outward and correctly locked on to the
frame tube.
With both panels in position, you may access the platform. Unfold the toe
board set and position the toe board sections so that they sit over the
outer edges of the platform. The Mi TOWER STAIRS is now complete and
ready to use.
