MI TOWER STAIRS 2.2m & 4.2m - ASSEMBLY
Page 13

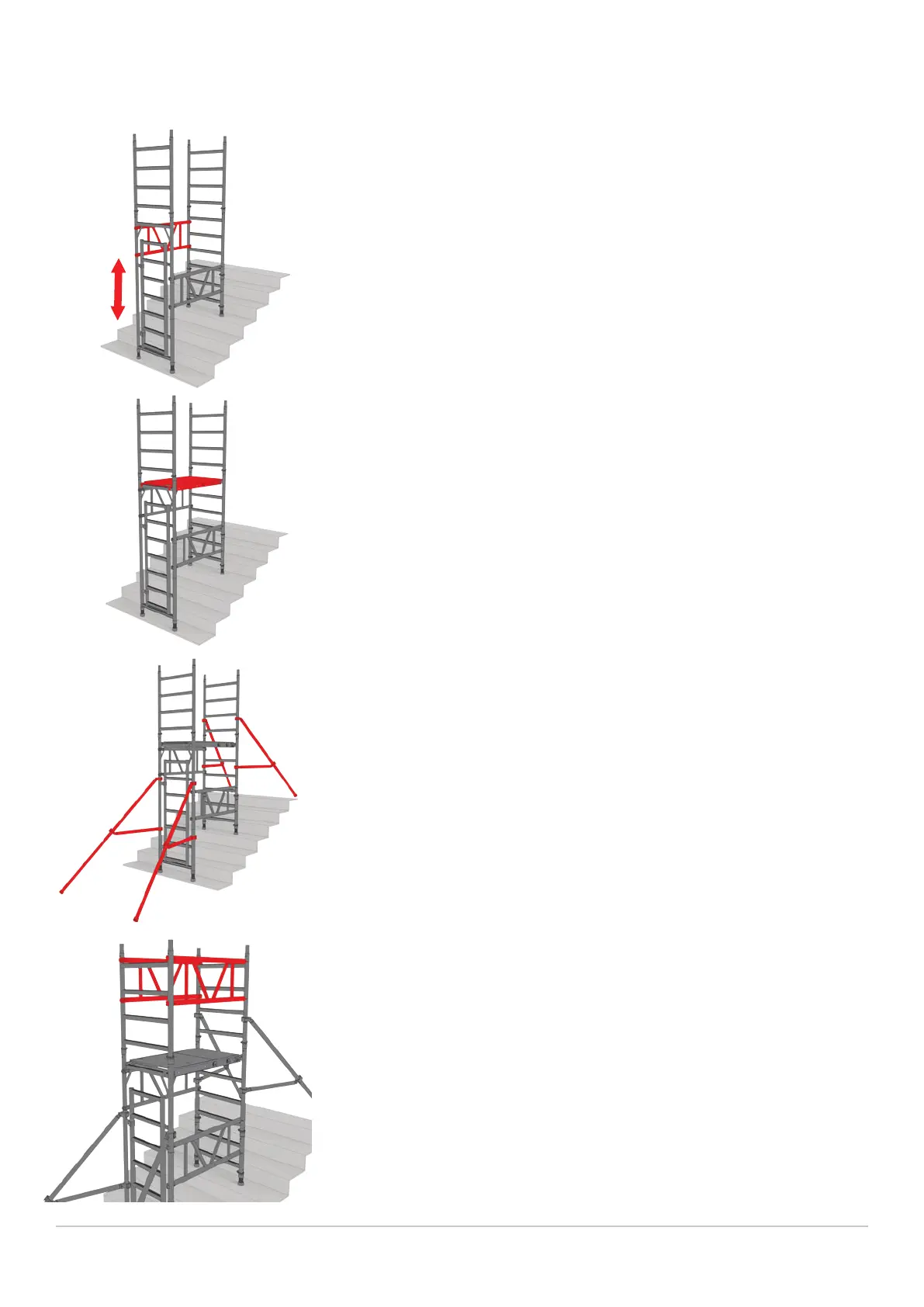

STEP 6
STEP 7
STEP 8
STEP 9
Attach another guardrail brace panel on the opposite side to the gate
locking pin. Ensure the upper brace hook is positioned below the eighth
rung of the lowermost frame assembly and sixth rung of the uppermost
frame assembly.
Using the lower guardrail brace panel and a spirit level as a guide, adjust
the lowermost legs to bring the Mi TOWER STAIRS square and level.
Ensure all hooks are facing outwards and correctly locked on to the
frame tubes.
Stand inside the Mi TOWER STAIRS and fit the platform on the sixth rung of
the uppermost frame assembly, ensuring the trap door is positioned at the
lowermost end of the Mi TOWER STAIRS.
Make sure that the Wind-Lock catch engages correctly.
Fit an Easy-Lock stabiliser to each corner of the Mi TOWER STAIRS. The
position of the upper and lower couplers will depend on the pitch of the
staircase and position of any landings or floors. Ensure the stabiliser
footprint is a square as possible within the con nes of the staircase sides.
Adjust each stabilisers length so that each foot is in contact with the floor
or step.
Make sure all Easy-Lock clamps are correctly secured.
Open the walk-through gate and once in the Mi TOWER STAIRS close and
secure it using the gate locking pin. Open the hatch door and using the
rungs of the gate, climb until you are half way through the platform’s trap
door. Now manoeuvre yourself so that you are sitting on the platform, with
your legs through the trap door and your feet resting on the rungs of the
gate below the platform. From this position, you should take a guardrail
brace panel, one at a time and attach so that the upper jaws are positioned
above the tenth rung of the uppermost frame assembly. Ensure all hooks
are facing outwards and correctly locked on to the frame tubes.
If building a 4.2m platform height Mi TOWER STAIRS, follow step 10
onwards of the 4.7m platform height build. If building a 2.2m
platform height Mi TOWER STAIRS proceed to step 10 of this build.
