30
clutch, Controls
No.
Description
Qty,
Removing
Note when
Installing
Remarks
1 Bolt
6
Loosen alternately
Torque crosswise to 23. 5
M 8
X 15
1 to 2 threads cross-
Nm
(2.5 mkg).
wise.
2 Washer
6
3
Diaphragm spring
1
Mark
for installation.
Check rivets. Clean
clutch
bearing surface in fly-
wheel. Check for wear.
Remove surface cracks
and scoring
by grinding
or turning.
4
Clutch disc 1
Check for wear.
Check
teeth. Disc must
be easy to slide on
input shaft without too
much radial
play.
Check rivets. Check
lateral run out. Coat
input snaft teeth with
molybdenum -disulfide
powder. Center
on
input shaft.
30 - 2

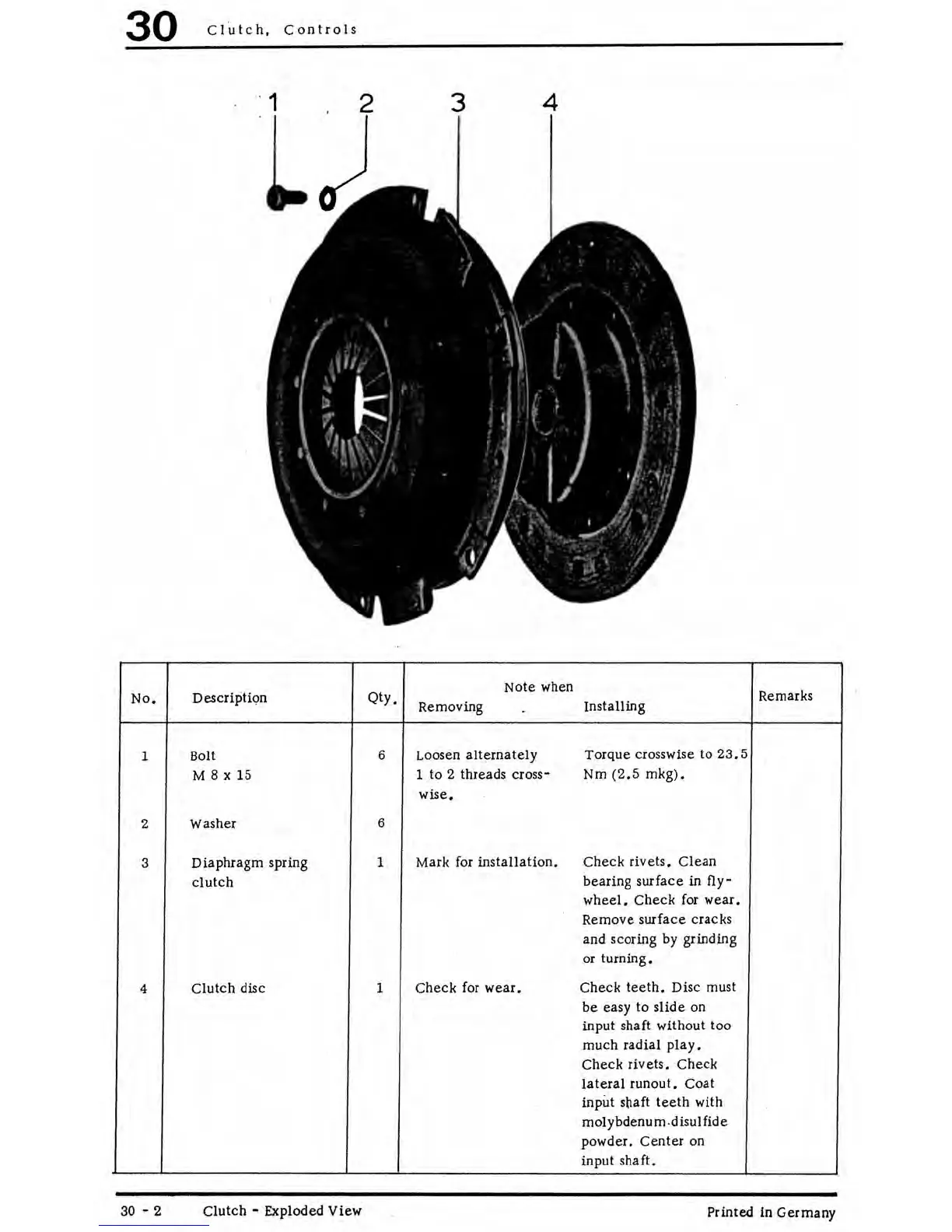

Clutch - Exploded View
