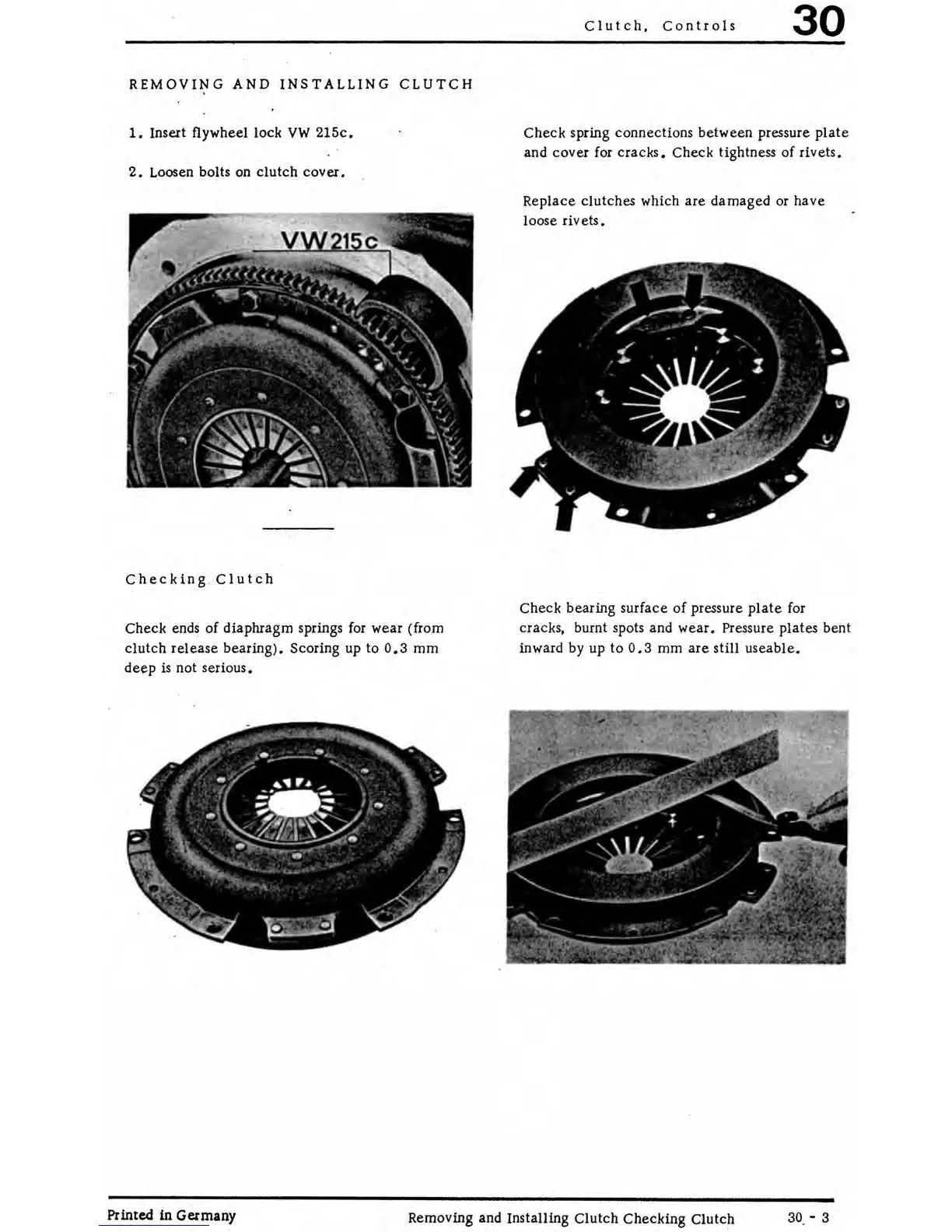

REMOVING AND INSTALLING CLUTCH
1. Insert flywheel lock VW 215c,
2. Loosen bolts on clutch cover.
Checking Clutch
Check ends of diaphragm springs for wear (from
clutch release bearing). Scoring up to 0.3 mm
deep is not serious.
Clutch, Controls
30
Check spring connections between pressure plate
and cover for cracks. Check tightness of rivets.
Replace clutches which
are damaged or have
loose rivets.
Check bearing surface of pressure plate for
cracks, burnt spots and wear. Pressure plates bent
inward
by up to 0. 3 mm are still useable.
Printed in Germany
Removing and Installing Clutch Checking Clutch
30. - 3
