30

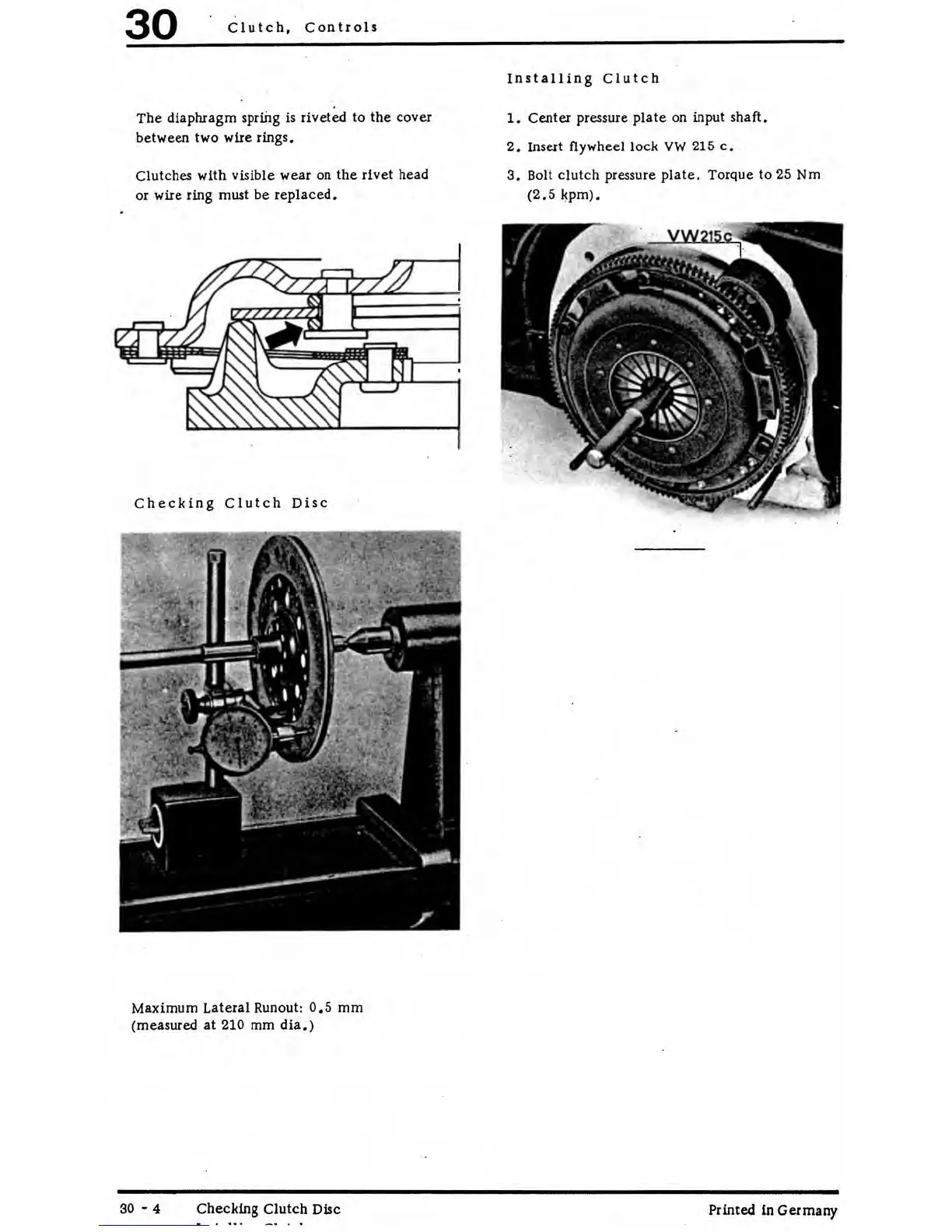

Clutch, Controls
The diaphragm spri..ilg is riveted to the cover
between two wire rings.
Clutches with visible wear on
the rivet head
or wire ring must
be replaced.
Checking Clutch Disc
Maximum Lateral Runout: 0.5 mm
(measured at 210 mm dia.)
30 -4
Checking Clutch Disc
Installing Clutch
1. Center pressure plate on input shaft.
2. Insert flywheel lock VW 215 c.
3. Bolt clutch pressure plate. Torque to 25 Nm
(2.5 kpm).
Printed
in Germany
