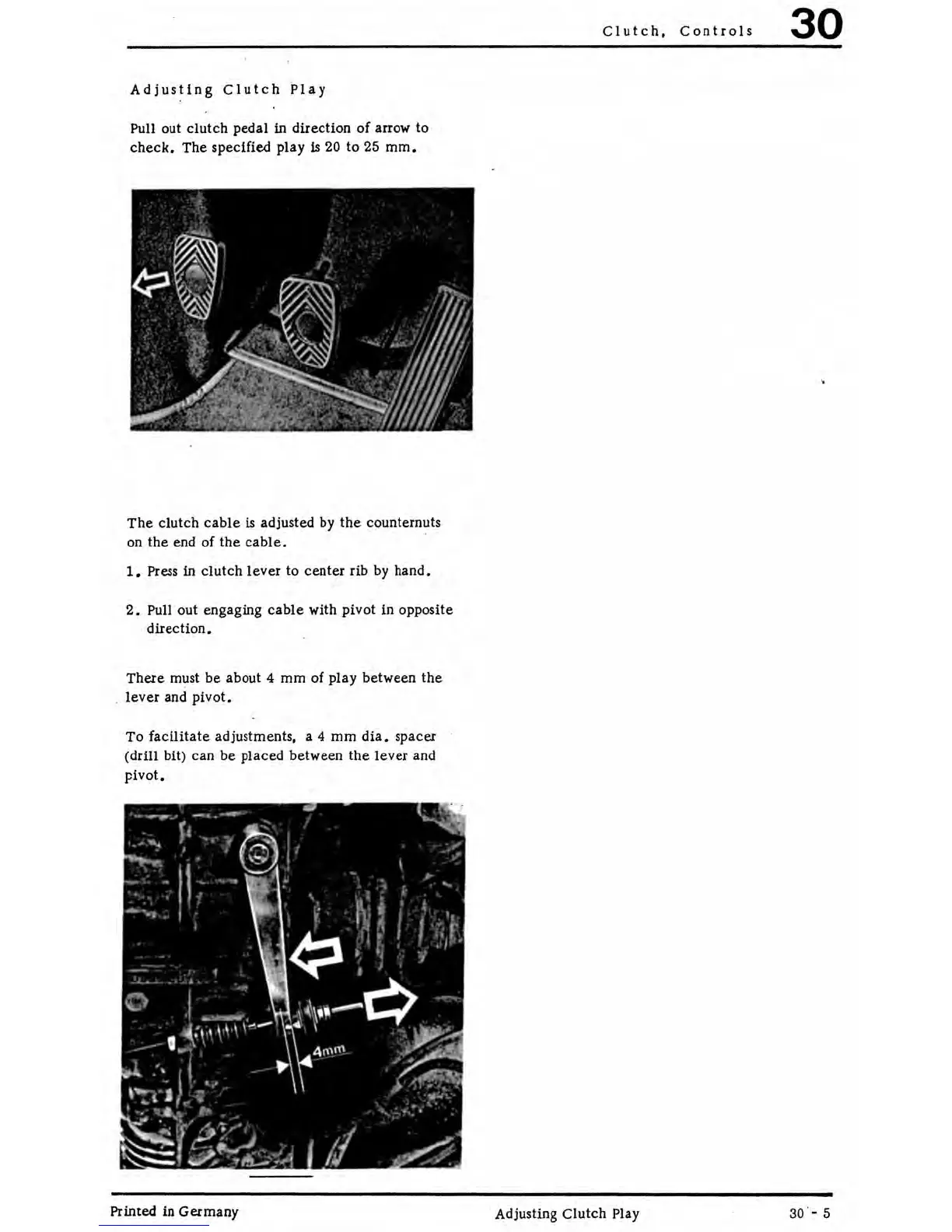

Adjusting Clutch Play
Pull out clutch pedal in direction of arrow to
check. The specified play Is 20 to 25 mm.
The clutch cable is adjusted by the counternuts
on the end of
the cable.
1. Press in clutch lever to center rib by hand.
2. Pull out engaging cable with pivot in opposite
direction.
There must be about 4 mm
of play between the
lever and pivot.
To facilitate adjustments, a 4 mm dia. spacer
(drill bit) can be placed between
the lever and
pivot.
