Porsche 912 E - Manual Transmission

13
Engine, Crankshaft, Pistons
13 tO tt
15
14 21 20
~j
18 17 9 8
7
3
2
37
No.
Description
.
Qty.
Note when
Remarks
Removing Installing
1
Bolt
5
Torque to 107.9
. M 12 X 1.5
Nm (11 mkg) •
self locking
2 Washer 1
Replace.
3
Felt ring, needle 1 Dip in oil.
bearing
4 Flywheel
1
Damaged teeth can be
Clutch disc contact
machined up to max.
surface must be free of
2 mm on clutch end • grease or oil. Lubri-
. Machine chamfer on
cate oil seal s~ating
teeth. Replace fly- surface. Use flywheel
. -~· ', . .
wheel if bolt holes
lock
VW 215c •
are worn too large.
Make sure that needle
bearing fits properly.
. 13 ~ f3

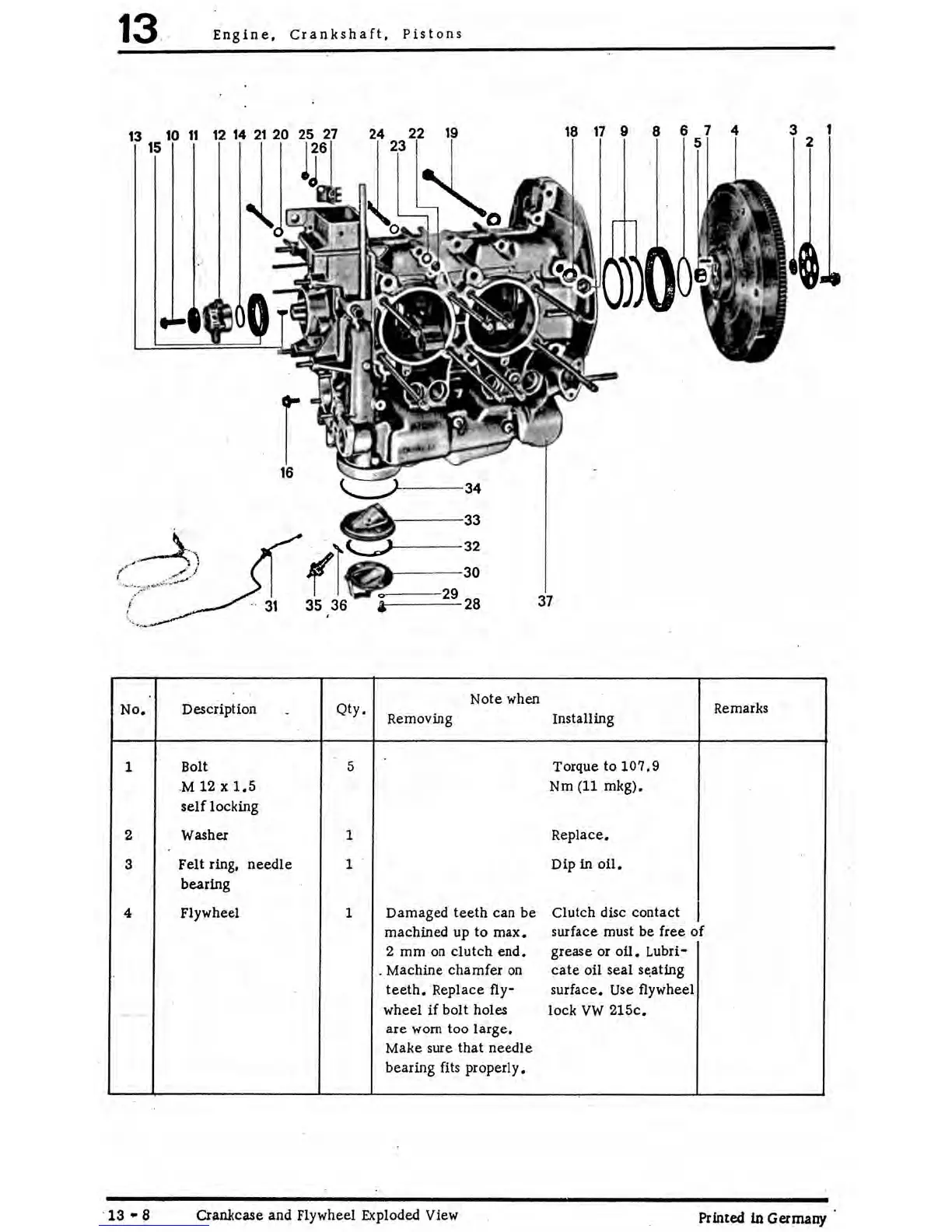

Crankcase and Flywheel Exploded View
