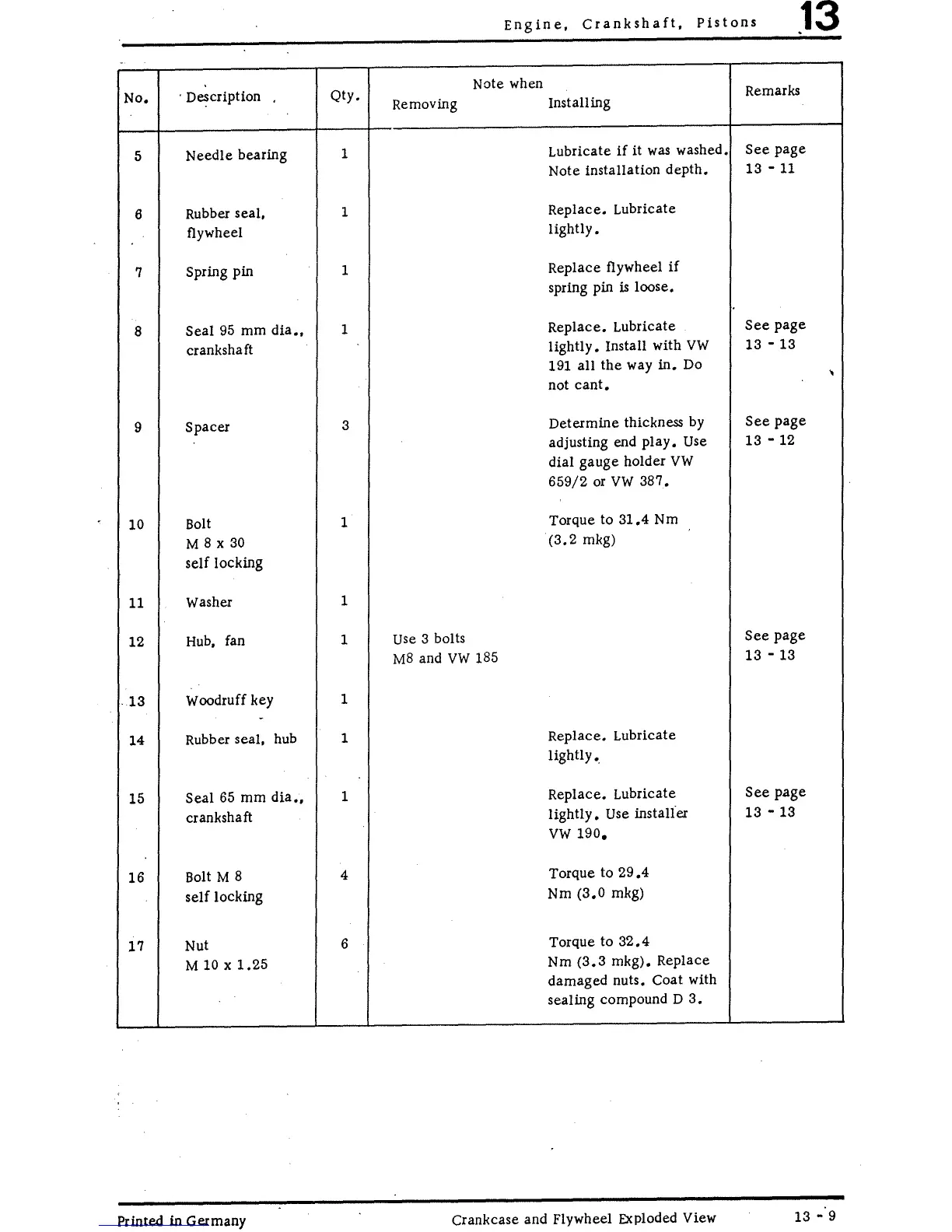

Porsche 912 E - Page 31

Engine, Crankshaft, Pistons
.13
No.
· D~cription
Qty.
Note when
Remarks
Removing
Installing
5
Needle bearing
1
Lubricate
if it was washed.
See page
Note installation depth.
13- 11
6
Rubber seal,
1
Replace. Lubricate
flywheel
lightly.
7
Spring pin
1
Replace flywheel
if
spring pin is loose.
8
Seal 95 mm dia.,
1
Replace. Lubricate
See page
crankshaft
lightly. Install with VW
13- 13
191 all the way in. Do
\
not cant.
9
Spacer
3
Determine thickness by
See page
adjusting end play. Use
13- 12
dial
gauge holder VW
659/2 or VW 387.
10
Bolt
1
Torque to
31.4 Nm
M 8
X 30
(3.2 mkg)
self locking
11
washer
1
12
Hub, fan
1
use 3 bolts
See page
M8 and VW 185
13- 13
13
Woodruff key
1
.
14
Rubber seal, hub
1
Replace. Lubricate
lightly
•.
15
Seal 65 mm dia.,
1
Replace. Lubricate
See page
crankshaft
lightly. Use instalfer
13- 13
vw 190.
16
Bolt M 8
4
Torque to 29
.4
self locking
Nm
(3.0 mkg)
17
Nut
6
Torque
to 32.4
M 10 X 1.25
Nm (3.3 mkg). Replace
damaged nuts.
Coat with
sealing compound D
3.
