Porsche 912 E - Page 36

13
Engine, Crankshaft, Pistons
No.
Desc ription
Qty.
Note when
Remarks
Removing
Installing
1
Camshaft
1
Check rivets securing
Check run out. Check See page
gear to camshaft.
end play at thrust 13 - 16
Check cams and
bearing. Note pair-
bearing journals
ing and
timing with
for wear and
contact crankshaft. Check
pattern.
backlash over
entire camshaft gear
13 -14

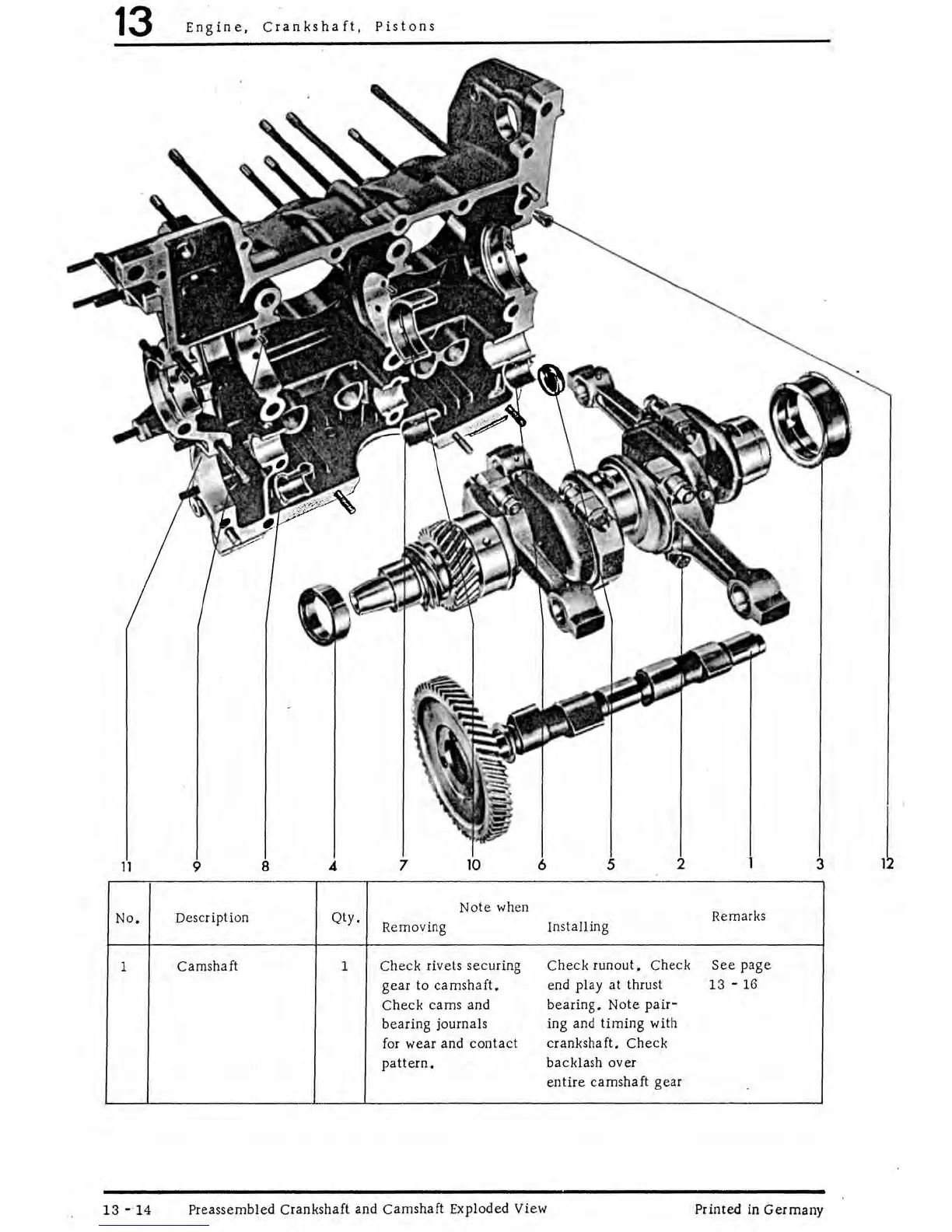

?reassembled Crankshaft and Camshaft Exploded View
Printed in
Germany
