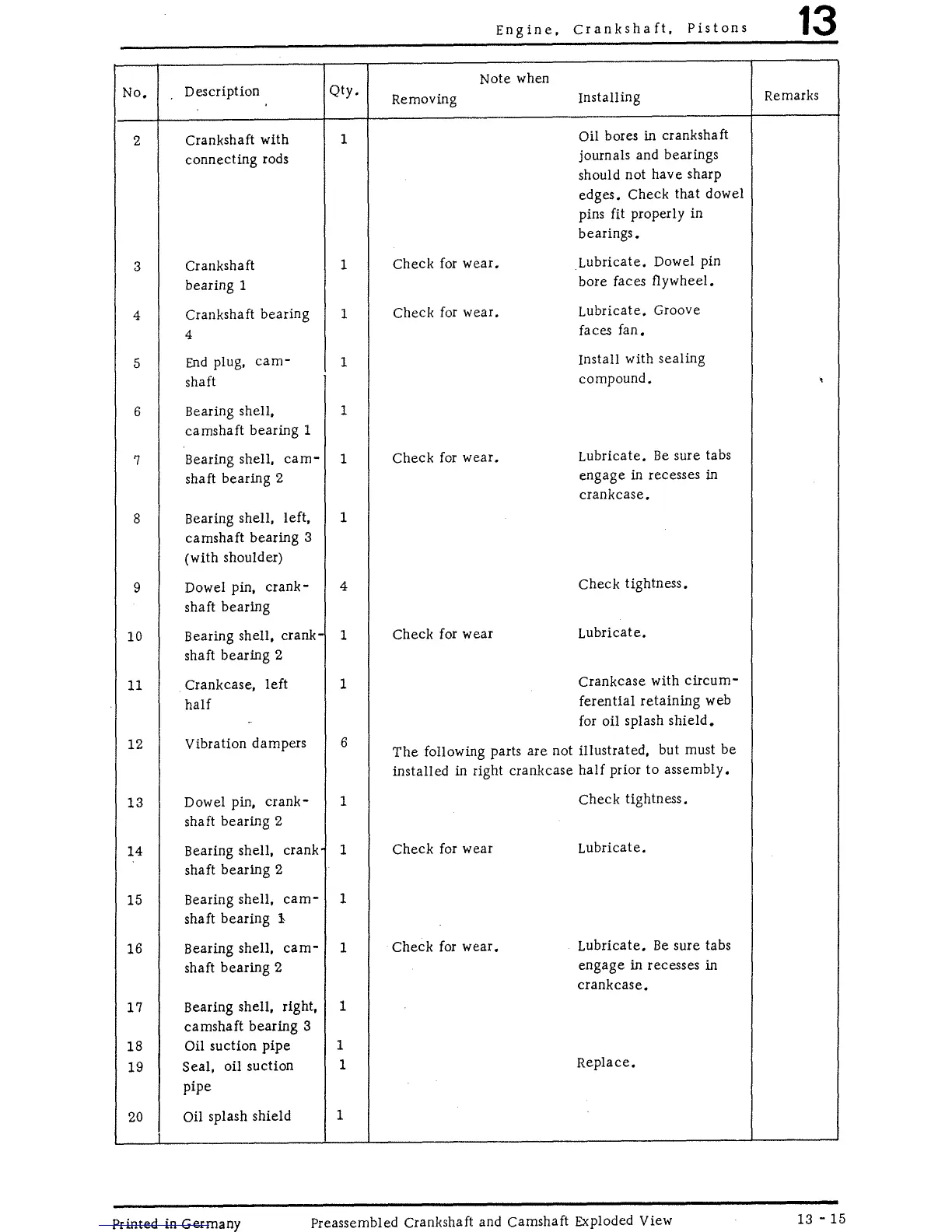

Engine, Crankshaft, Pistons
13
Note when
No.
Description
Qty.
Removing
Installing
Remarks
2
Crankshaft with
1
Oil bores in crankshaft
connecting rods
journals and bearings
should not have sharp
edges. Check
that dowel
pins
fit proper! y in
bearings.
3
Crankshaft
1
Check
for wear.
Lubricate. Dowel pin
bearing 1
bore faces flywheel.
4
Crankshaft bearing
1
Check
for wear.
Lubricate.
Groove
4
faces fan.
5
End plug,
cam-
1
Install with sealing
shaft
compound.
'
6
Bearing shell,
1
camshaft bearing 1
7
Bearing shell,
cam- 1
Check
for wear.
Lubricate. Be sure tabs
shaft bearing 2
engage
in recesses in
crankcase.
8
Bearing shell, left,
1
camshaft bearing 3
(with shoulder)
9
Dowel pin,
crank-
4
Check tightness.
shaft bearing
10
Bearing shell, crank 1
Check for wear
Lubricate.
shaft bearing 2
11
Crankcase, left
1
Crankcase with
circum-
half
ferential retaining web
-
for oil splash shield.
12
Vibration dampers
6
The following parts are not illustrated, but must be
installed
in right crankcase half prior to assembly.
13
Dowel pin, crank-
1
Check tightness.
shaft bearing 2
14
Bearing shell, crank
1
Check for wear
Lubricate.
shaft
bearing 2
15
Bearing shell,
cam-
1
shaft bearing
1
16
Bearing shell,
cam-
1
Check
for wear.
Lubricate. Be sure tabs
shaft
bearing 2
engage
in recesses in
crankcase.
17
Bearing shell, right,
1
camshaft bearing 3
18
Oil suction pipe
1
19
Seal,
oil suction
1
Replace.
pipe
20
Oil splash shield
1
Printed in Germany
Preassembled Crankshaft and Camshaft Exploded View
13 - 15
