Porsche 912 E - Page 41

Engine, Crankshaft, Pistons
13
2
3
4.
5
6
7
10 8
9
11
12
Description
Qty.
Note when
Remarks
No.
Removing Installing
1
Crankshaft
1
Check for wear. Ring
Clean oil passages with
test. compressed air. Check
runout.
Do not store without
oiling or greasing.
Mi-
nor seizure burrs on
crankshaft or d istribu-
tor drive gears can
be
removed carefully.
2 Circlip 1
Use VW 161a
Use VW 415a and See page ·
VW 428a
13 -
21
Printed in Germany

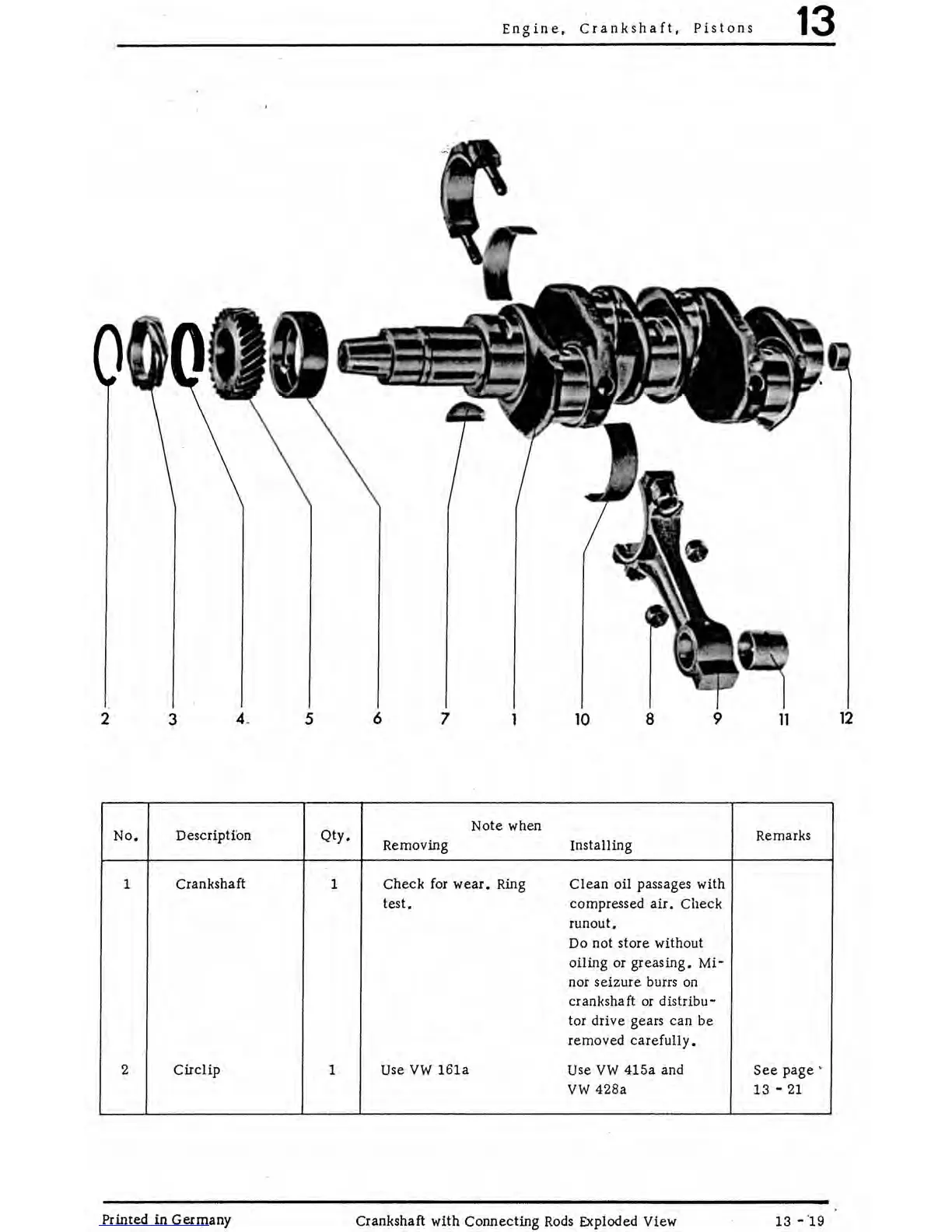

Crankshaft with Connecting
Rods Exploded View
13 -19
