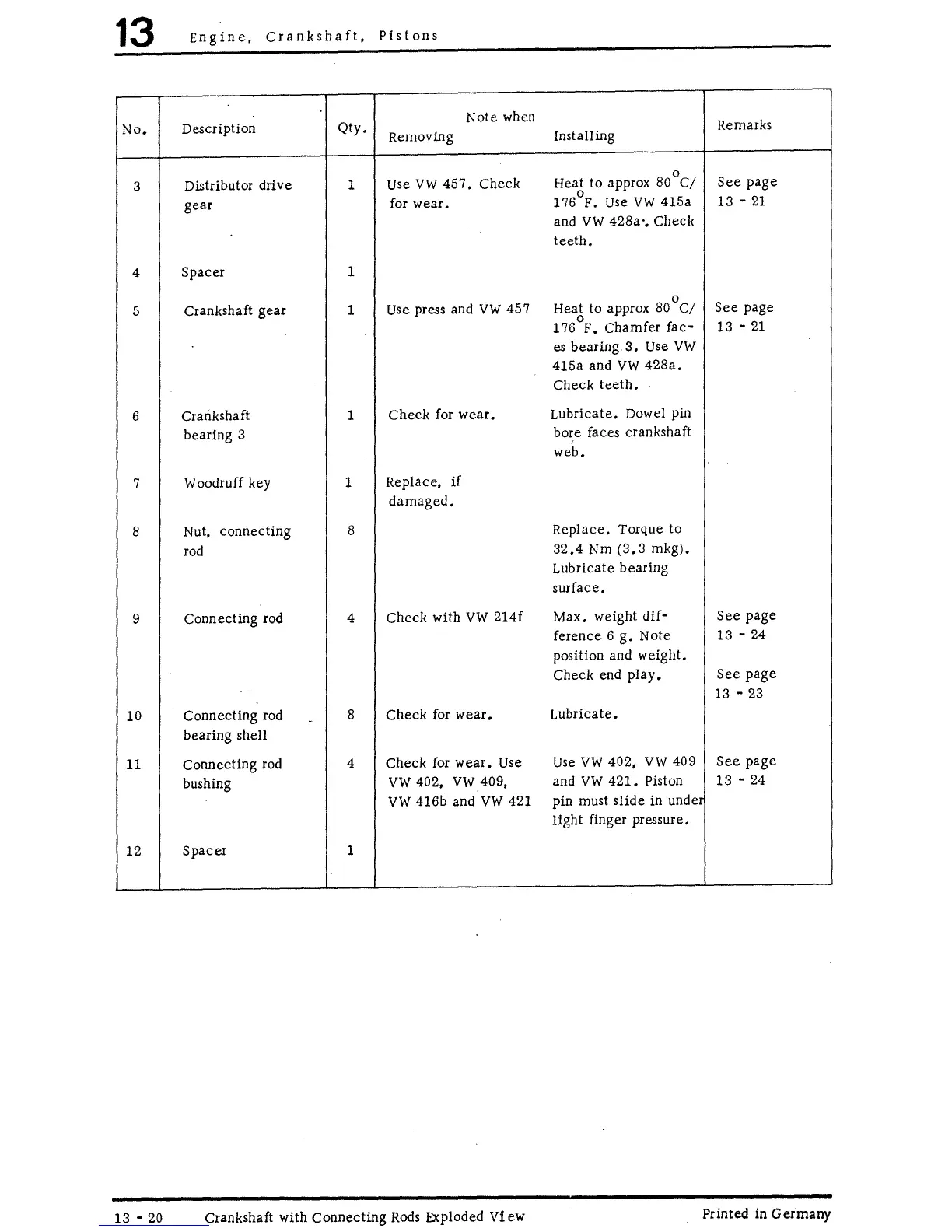

13
Engine, Crankshaft, Pistons
No.
Description
Qty.
Note when
Remarks
Removing
Installing
0
3
Distributor drive
1
Use VW 457. Check
Heat to approx 80 C/
See page
gear
for wear.
176°F. Use VW 415a
13- 21
and VW 428a ·• Check
teeth.
4
Spacer
1
Crankshaft
gear
0
See page
5
1
Use press and VW 457
Heat to approx
80 C/
0
176 F. Chamfer fac-
13 - 21
es bearing 3. Use VW
415a and VW 428a.
Check teeth.
6
Crankshaft
1
Check for wear.
Lubricate. Dowel pin
bearing 3
bore faces crankshaft
;
web.
7
Woodruff key
1
Replace,
if
damaged.
8 Nut,
connecting
8
Replace. Torque to
rod
32.4 Nm (3.3 mkg).
Lubricate bearing
surface.
9
Connecting rod
4
Check with VW 214f
Max. weight
dif-
See page
ference 6
g. Note
13- 24
position and weight.
Check end pia y.
See page
13- 23
10
Connecting rod
-
8 Check for wear.
Lubricate.
bearing shell
11 Connecting rod
4
Check for wear. Use
Use
VW 402, VW 409
See page
bushing
vw 402, vw 409,
and
VW 421. Piston
13 - 24
VW 416b and VW 421
pin must
slide in unde1
light finger pressure.
12
Spacer 1
13 - 20
Crankshaft with Connecting Rods Exploded View
Printed in Germany
