Engine,
Crankshaft,
Pistons
13

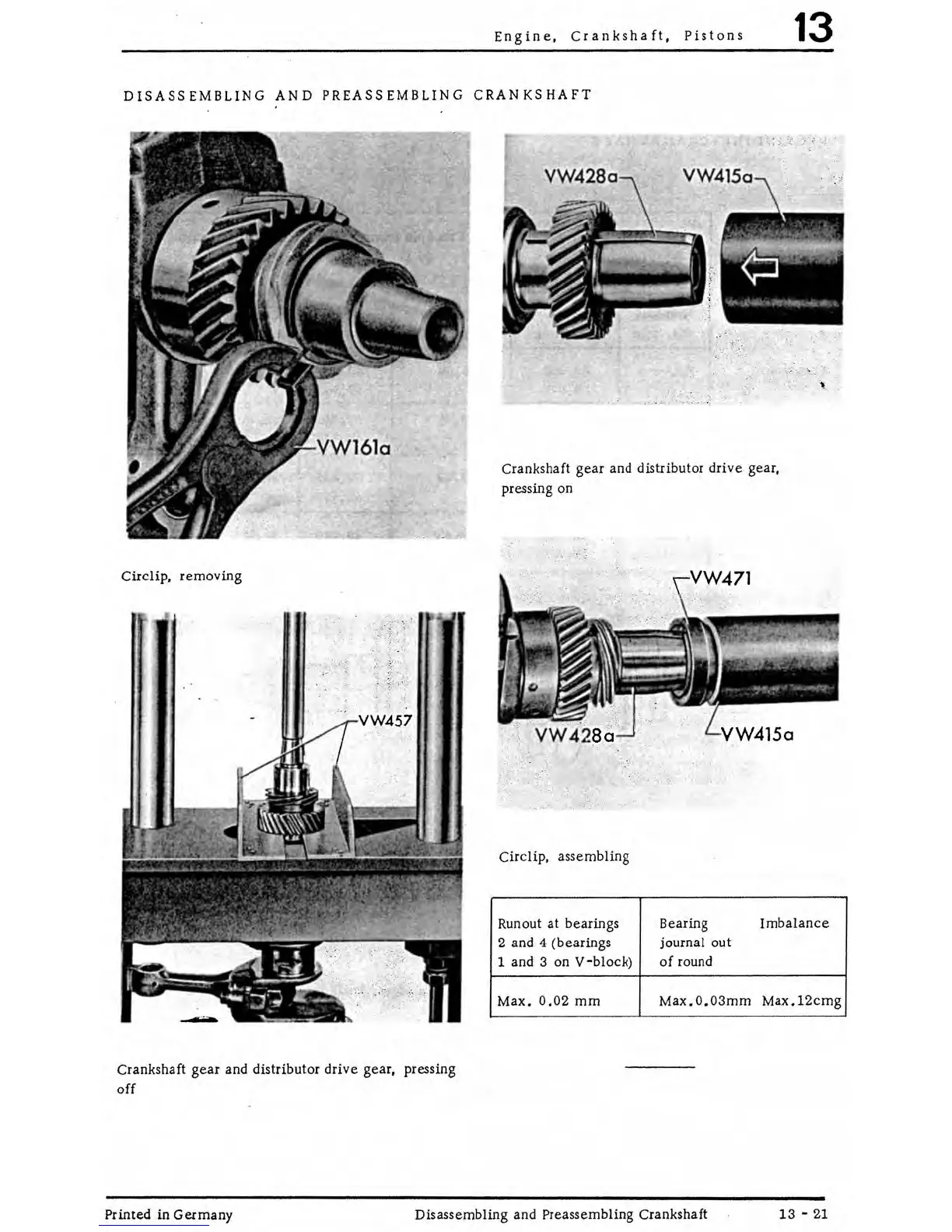

DISASSEMBLING
AND
?REASSEMBLING
CRANKSHAFT
Crankshaft
gear
and distributor drive gear,
pressing on
Circlip, removing
Crankshaft
gear
and distributor drive gear, pressing
off
Circlip, assembling
Runout
at
bearings
2 and 4 (bearings
1 and 3 on V-block)
Max.
0.02
mm
Bearing
journal out
of
round
Max,0.03mm
Printed
in
Germany
Disassembling and ?reassembling Crankshaft
Imbalance
Max.12cmg
13-
21
