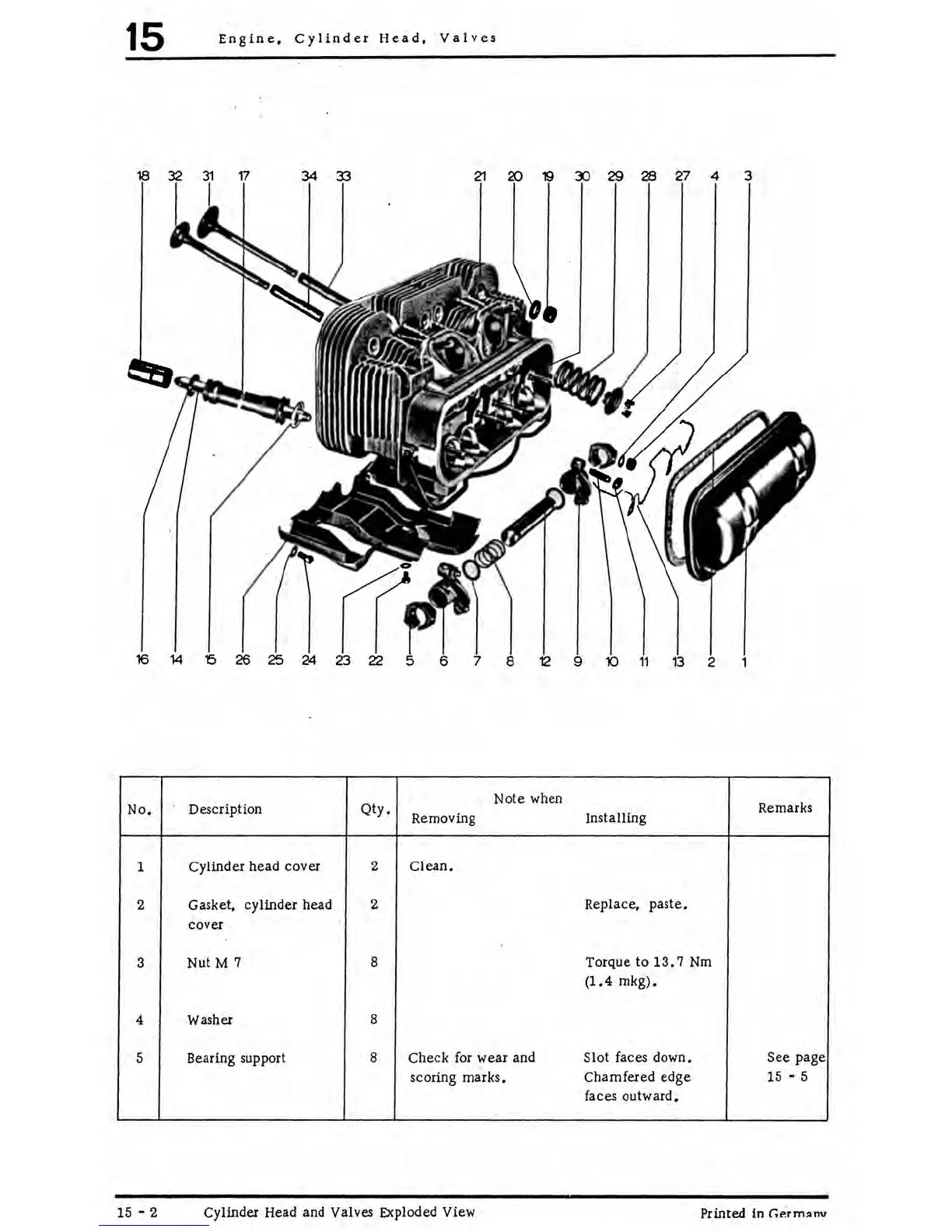

Porsche 912 E - Cylinder Head and Valves Exploded View

15
Engine, Cylinder Head, Valves
27 4 3
13
No.
Description Qty.
Removing
Note when
Remarks
Installing
1
Cylinder head cover
2 Clean.
2 Gasket.
cylinder head
2
Replace, paste.
cover
3
Nut M 7
8
Torque to 13.7 Nm
(1.4 mkg).
4
Washer
8
5
Bearing support
8 Check for wear and
Slot faces down. See page
scoring marks.
Chamfered edge
15 - 5
faces outward.
15 -
2
Cylinder Head and Valves Exploded View
Printed in
Germ"nv
