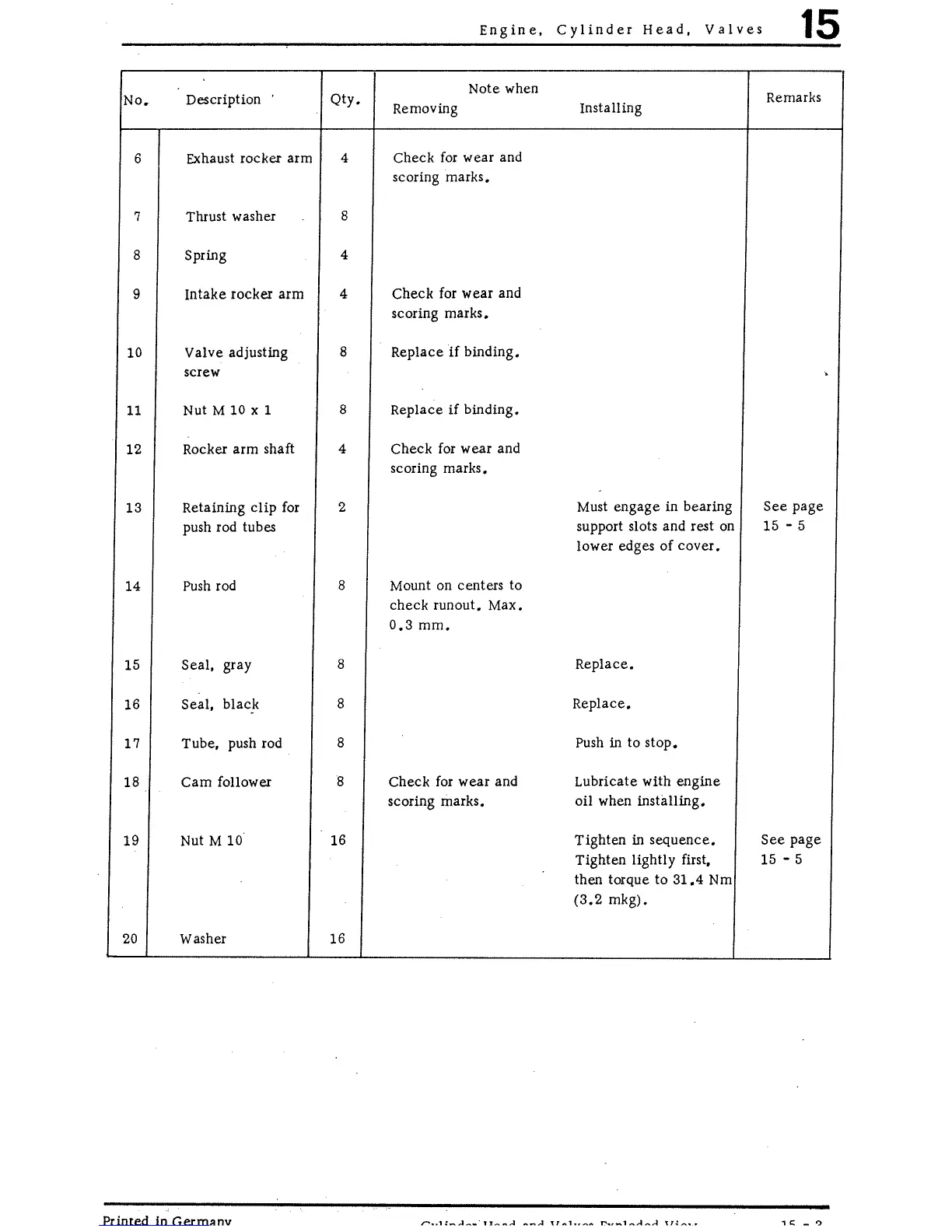

Porsche 912 E - Page 50

Engine, Cylinder Head, Valves
15
No.
Description
Qty.
Removing
Note when
Installing
Remarks
6
Exhaust rocker arm
4
Check for wear and
scoring marks.
7
Thrust washer
8
8 Spring
4
9 Intake rocker
arm
4
Check for wear and
scoring marks.
10
Valve adjusting
8 Replace
if binding.
screw
..
11
Nut M 10 X 1
8 Replace
if binding.
12
Rocker arm shaft
4
Check for wear and
scoring marks.
13
Retaining
clip for
2
Must engage in bearing
See
page
push rod tubes
support slots and rest on 15 - 5
lower edges
of cover.
14
Push rod
8 Mount on centers to
check runout. Max.
0.3 mm.
15 Seal, gray
8 Replace.
16
Seal, black
8
Replace.
17
Tube, push rod
8
Push in to stop.
18 Cam follower
8 Check for wear and
Lubricate with engine
scoring marks.
oil when
installing.
19 Nut M 10
16
Tighten in
sequence.
See page
Tighten lightly first, 15 - 5
then torque to
31.4 Nm
(3.2 mkg).
20 Washer 16
Printed in
Germanv
