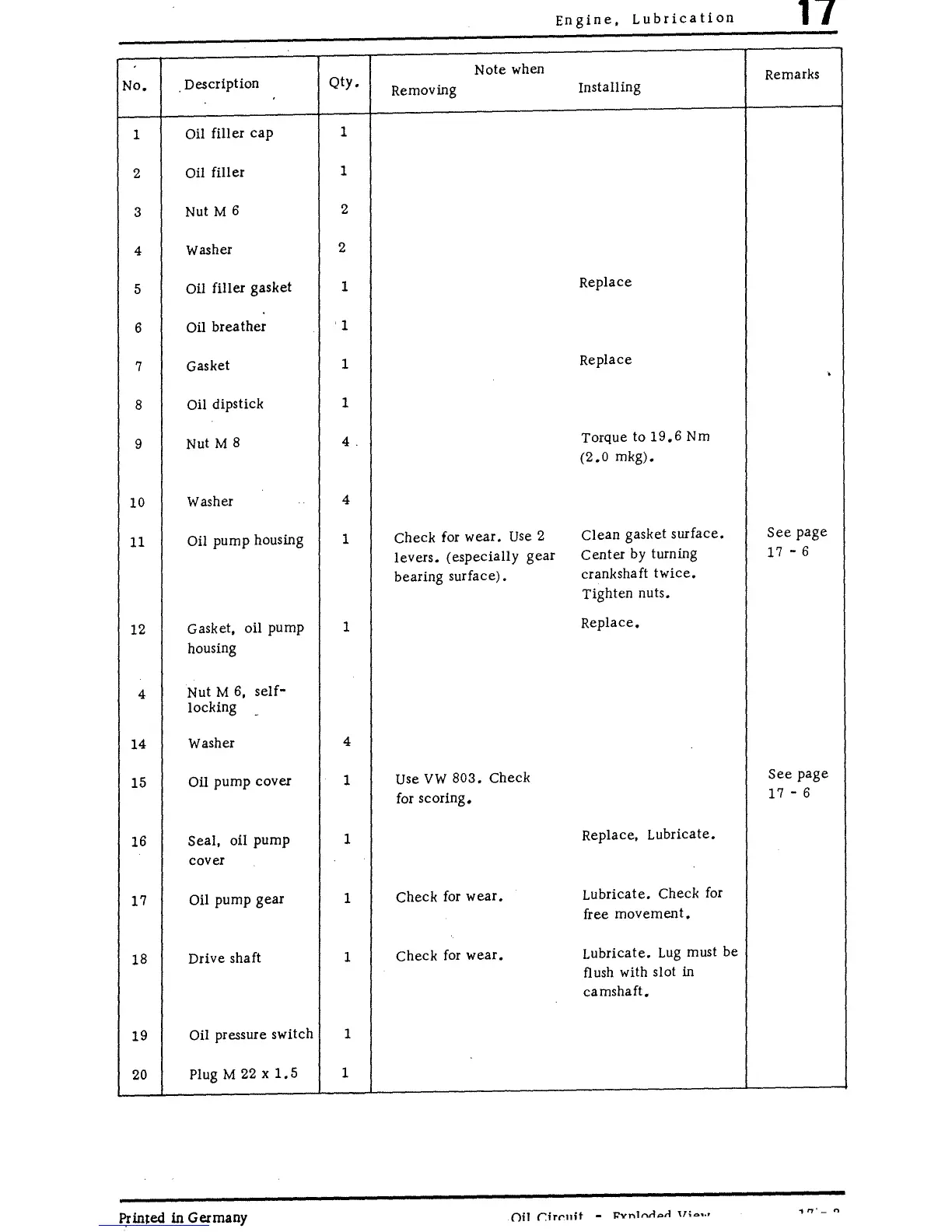

Porsche 912 E - Page 60

Engine, Lubrication
17
Qty •
Note when
Remarks
No.
. Description
Removing
Installing
1
Oil filler cap
1
2
on filler
1
3
Nut M 6
2
4
Washer
2
5
Oil filler gasket
1
Replace
6
Oil breather
1
7
Gasket
1
Replace
.•
8
Oil dipstick
1
9
Nut M 8
4.
Torque to 19,6 Nm
(2.0 mkg).
10
Washer
4
11
Oil pump housing
1
Check for wear. Use 2
Clean gasket surface.
See page
levers. (especially gear
Center by turning
17 - 6
bearing surface).
crankshaft
twice.
Tighten nuts.
12
Gasket,
oil pump
1
Replace.
housing
4
Nut M 6,
self-
locking
-
14
Washer
4
15
Oil pump cover
1
Use VW 803,
Check
See page
for scoring.
17 - 6
16
Seal, oil pump
1
Replace, Lubricate.
cover
17
Oil pump gear
1
Check for wear.
Lubricate. Check for
free
movement.
18
Drive shaft
1
Check for wear.
Lubricate. Lug must be
f1 ush with slot in
camshaft.
19
Oil pressure switch
1
20
Plug M 22 x 1.5
1
Prin~ed in Germany
