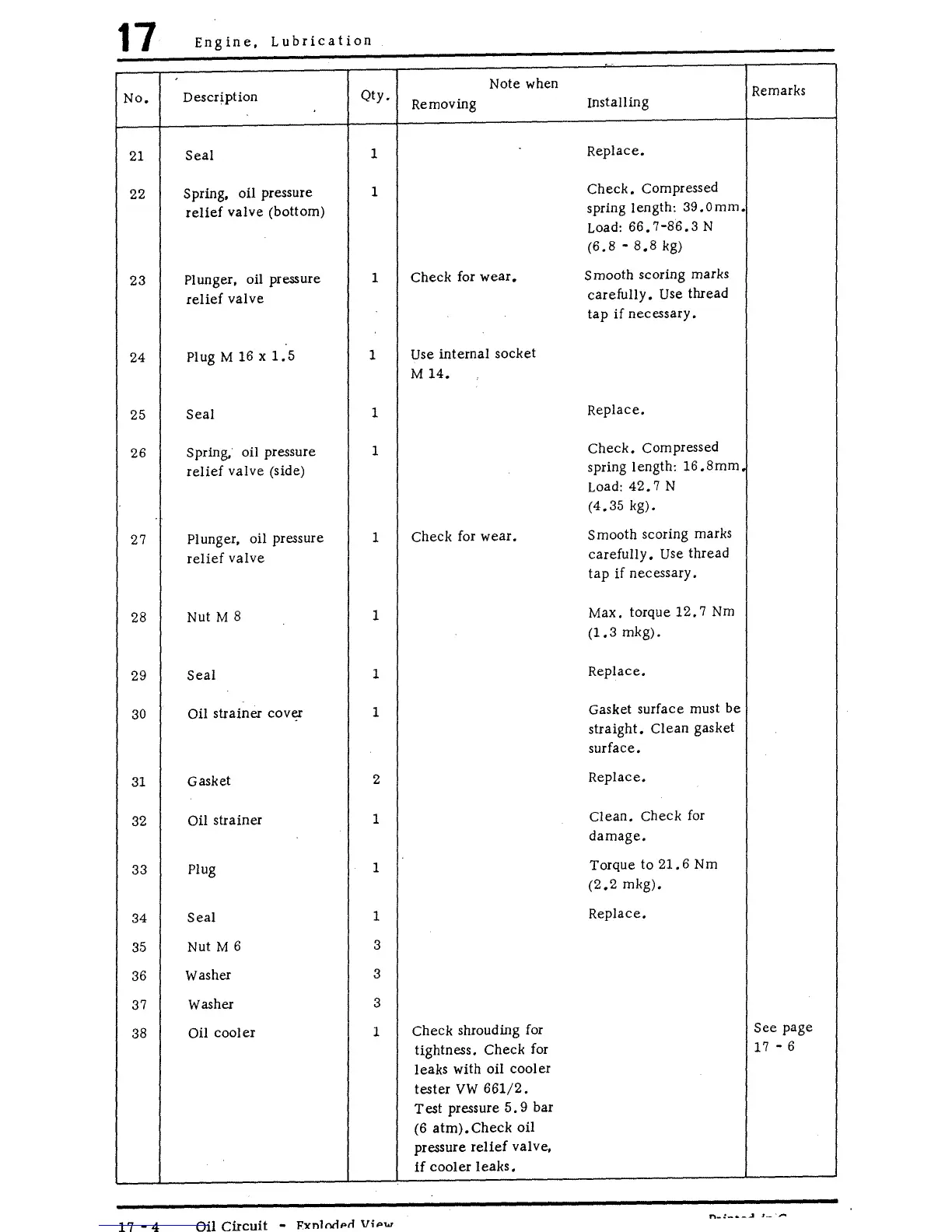

17
Engine, Lubrication
Descr~ption
Qty.
Note when
Remarks
No.
Removing
Installing
21
Seal
1
Replace.
22
Spring, oil pressure
1
Check, Compressed
relief valve (bottom)
spring length:
39.0mm.
Load: 66.7-86.3 N
(6. 8 -
8. 8 kg)
23
Plunger, oil pressure
1
Check for wear.
Smooth scoring marks
relief valve
carefully. Use thread
tap
if necessary.
24
Plug M 16 x 1.5
1
Use internal socket
M
14.
25
Seal
1
Replace.
26
Spring. oil pressure
1
Check, Compressed
relief valve (side)
spring length:
16.8mm
Load: 42.7 N
(4,35 kg).
27
Plunger, oil pressure
1
Check for wear.
Smooth scoring marks
relief valve
carefully. Use thread
tap
if necessary.
28
Nut M 8
1
Max. torque
12. 7 Nm
(1.3 mkg).
29
Seal
1
Replace.
30
Oil strainer cover
1
Gasket surface must
be
straight. Clean gasket
surface.
31
Gasket
2
Replace.
32
Oil strainer
1
Clean. Check for
damage.
33
Plug
1
Torque to
21.6 Nm
(2.2 mkg).
34
Seal
1
Replace.
35
Nut M 6
3
36
washer
3
37
Washer
3
38
Oil cooler
1
Check shrouding for
See page
tightness.
Check for
17 - 6
leaks with oil cooler
tester
VW 661/2.
Test pressure 5. 9 bar
(6 atm).Check oil
pressure
relief valve,
if cooler leaks.
n-:-•-...l ~- --
17 -4
